Base Structures

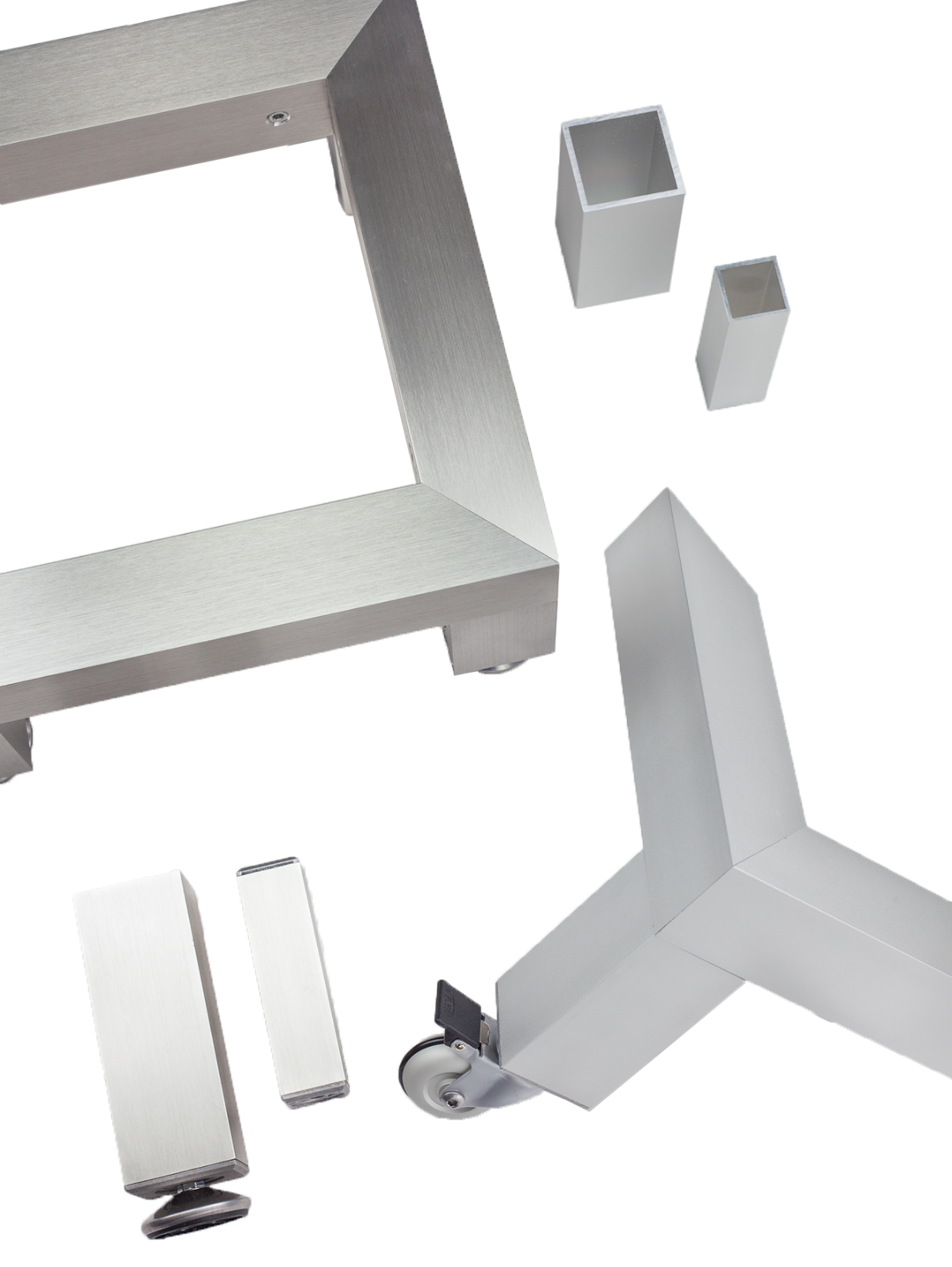

Custom aluminum frame base systems support kitchen islands, cabinet bases, tables, and shelving. They are available in 30 mm or 50 mm tubing, several finishes, and with leveling feet or casters.
BS001 uses 50mm tubing while BS002 provides a lighter 30mm profile.
Base structures are manufactured in custom configurations for individual project requirements.
Profiles are offered in anodized, matte and metallic finish selections.
Specify stationary leveling feet or mobile casters according to the application.

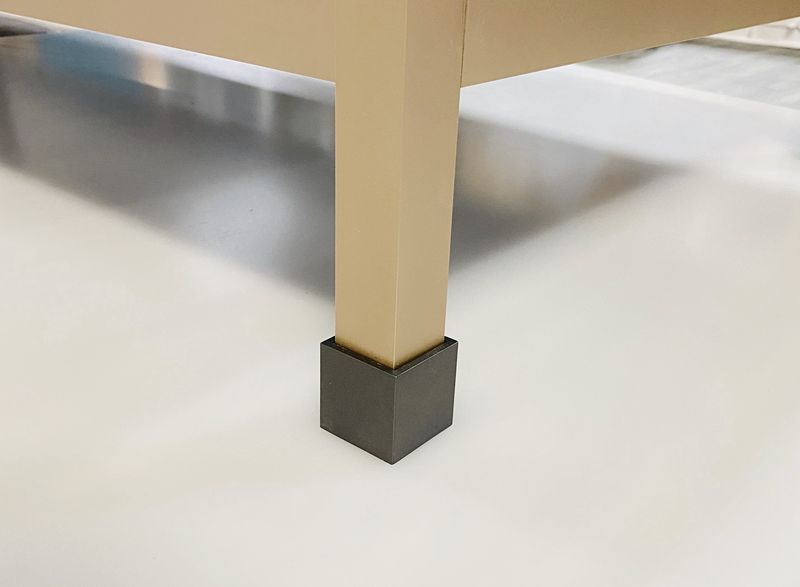

Matching or accent cuffs are available for BS001 and BS002 coated finishes.
Ideal for islands, cabinet bases, tables, desks and shelving units.
.png)
.png)
Finish Options
Preview the aluminum finishes available for BS001 and BS002 base structures.
Natural Aluminum
Natural silver-toned aluminum finish with a clean, contemporary appearance.
Base Options
Select a base to review and compare technical information.

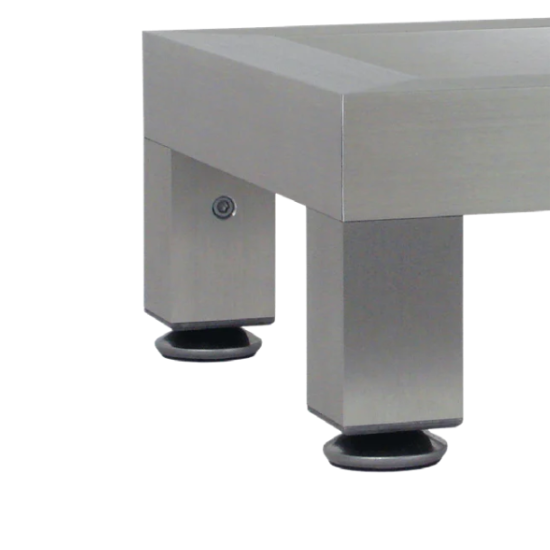

BS001 — 50mm Base Structure
A substantial 50mm square aluminum profile for custom cabinetry, kitchen islands, tables, and furniture bases.
.png)

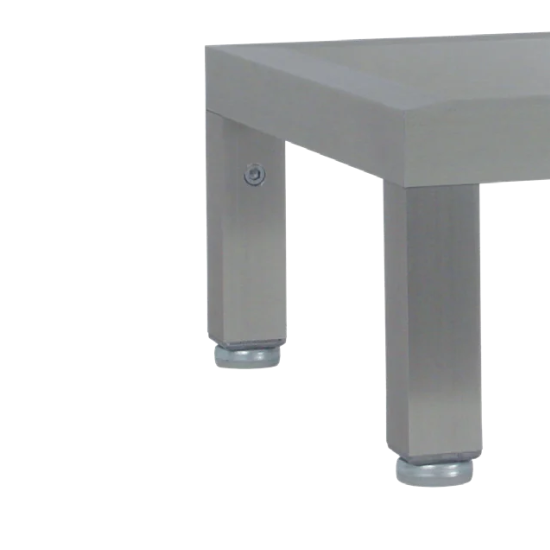

BS002 — 30mm Base Structure
A slimmer 30mm square aluminum profile for custom cabinet bases, shelving, desks, and furniture applications.
Design Guidelines
Profiles & Configurations
- Base profiles BS001 (50mm) and BS002 (30mm)
- Configurations Standard and custom layouts
- Maximum width 120" (varies by layout)
- Maximum depth 48"
- Maximum height 48" (varies by layout)
- Installation Sub-assembled with required hardware
Finishes & Support Options
- Profile finishes 10 aluminum finishes
- Supports End caps, leveling feet, or casters
- Leveling feet Up to 2" adjustment
- Casters Non-marking wheels with brakes
- Decorative cuffs Available for both profiles
- Cuff compatibility Not available with brushed stainless or casters

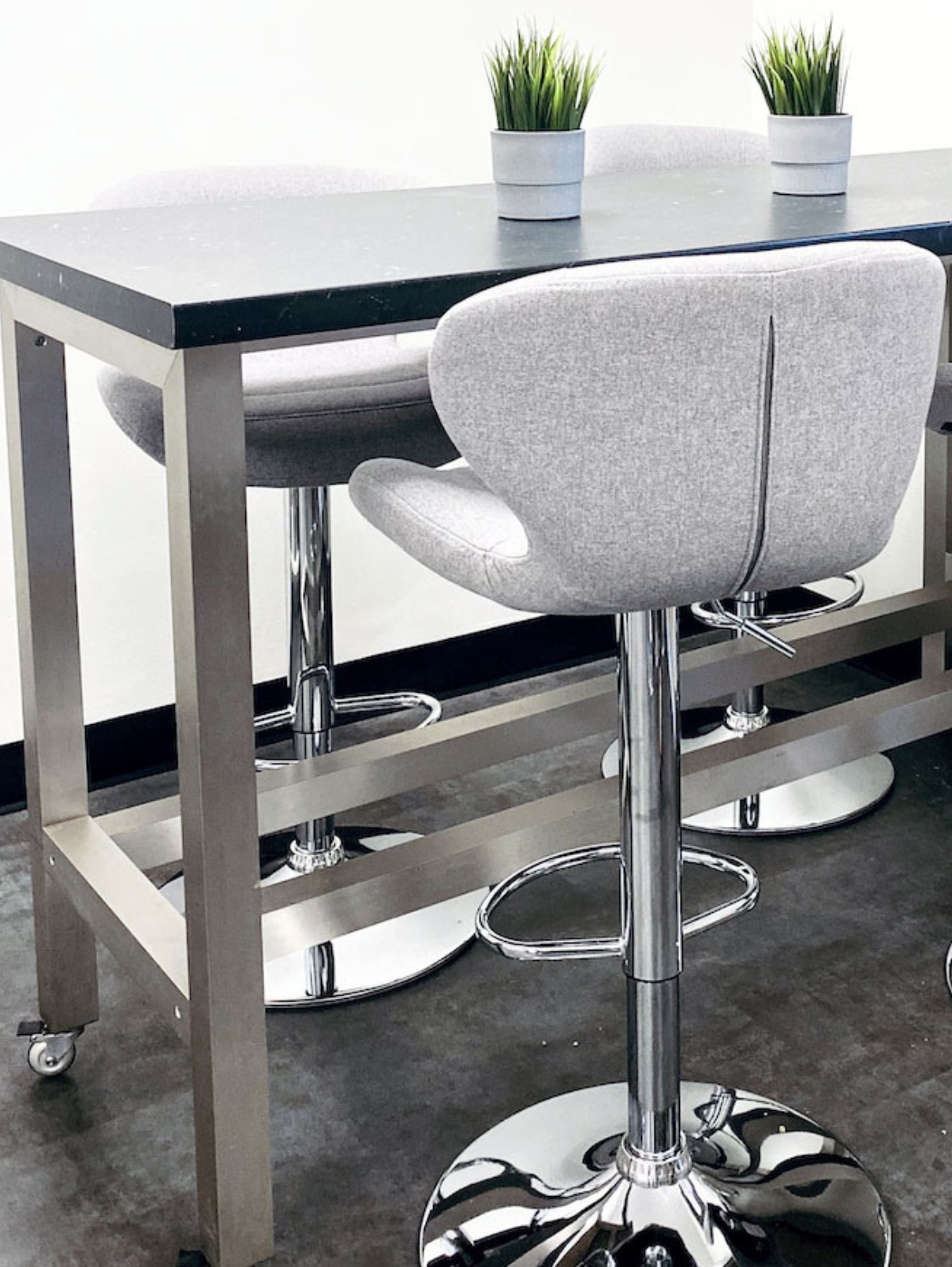

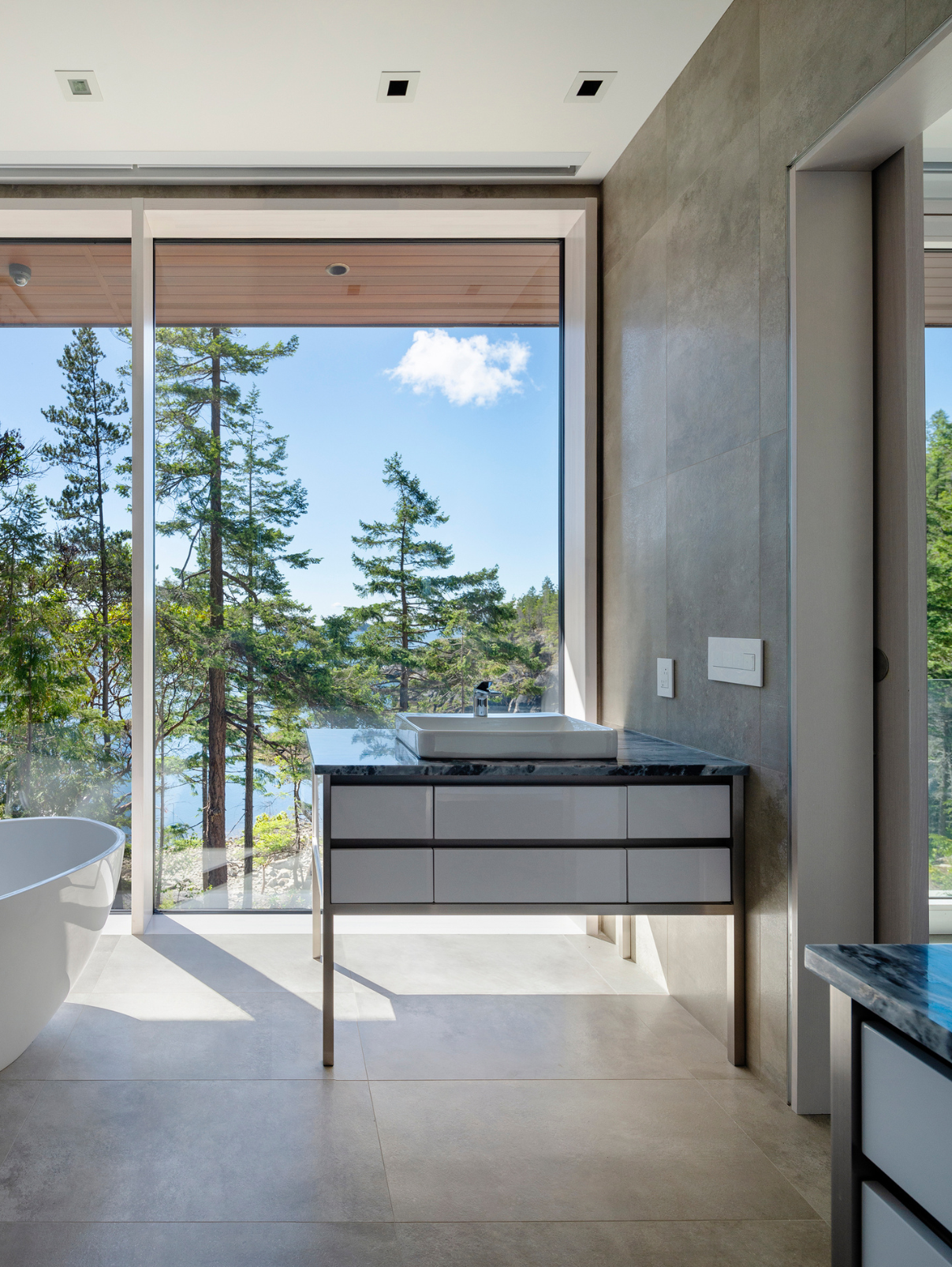

Inspiration Gallery
Real installations by designers and cabinet shops across North America.
