Frameless Glass Doors

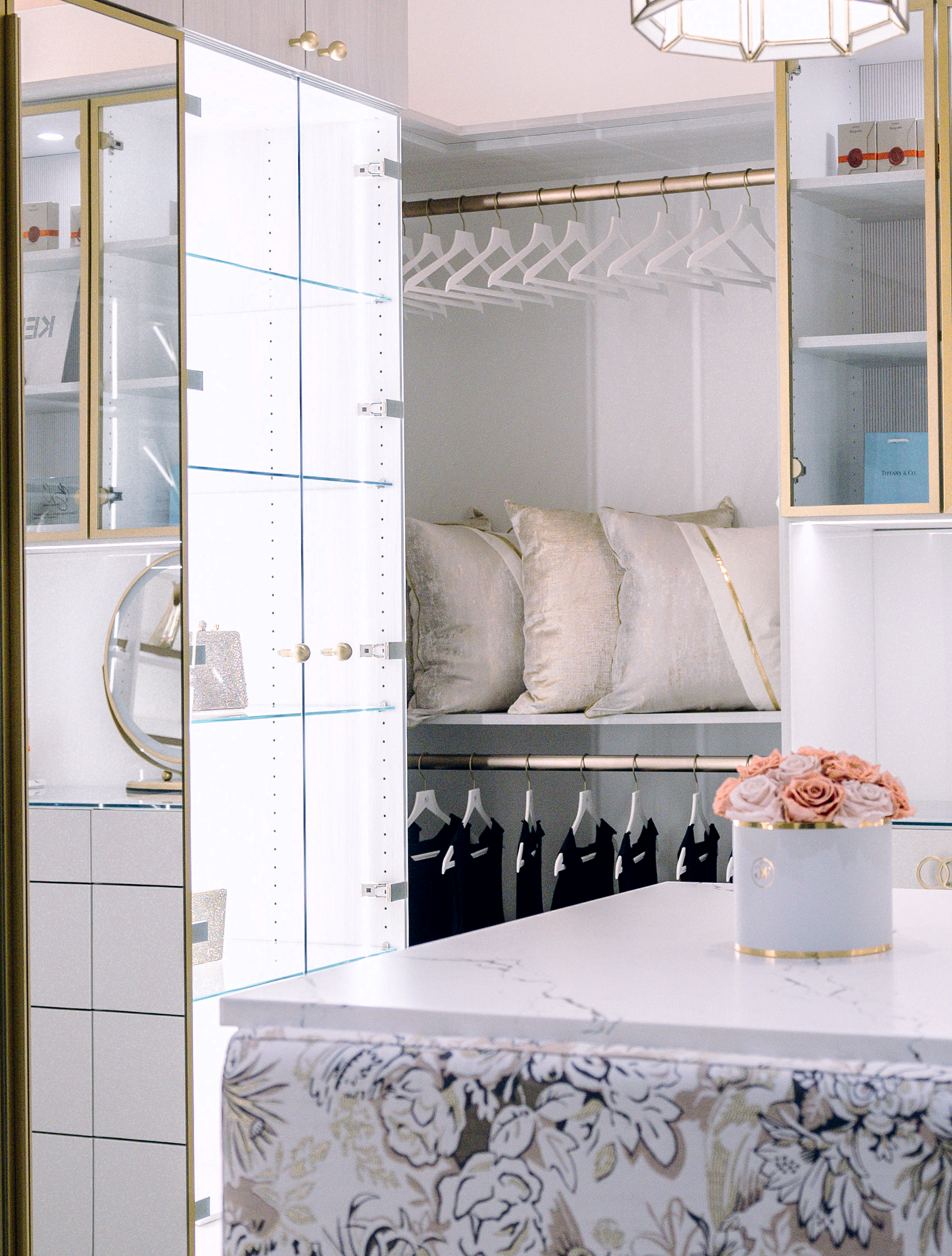

Bring a clean, contemporary look to cabinetry with custom Frameless Glass Doors. Available in six glass options, each door is manufactured to exact specifications with tempered safety glass and pre-installed plates for Blum CRISTALLO hinges. Ideal for kitchens, closets, bathrooms, retail displays, and commercial interiors.
Choose from clear, low-iron, satin, grey, and bronze glass options to complement your design.
Each frameless glass door is manufactured to the dimensions specified for the project.

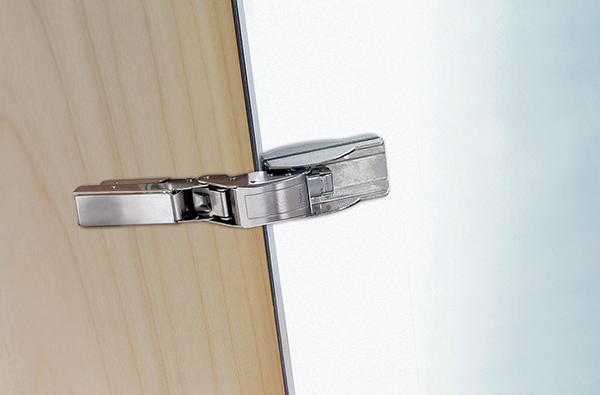

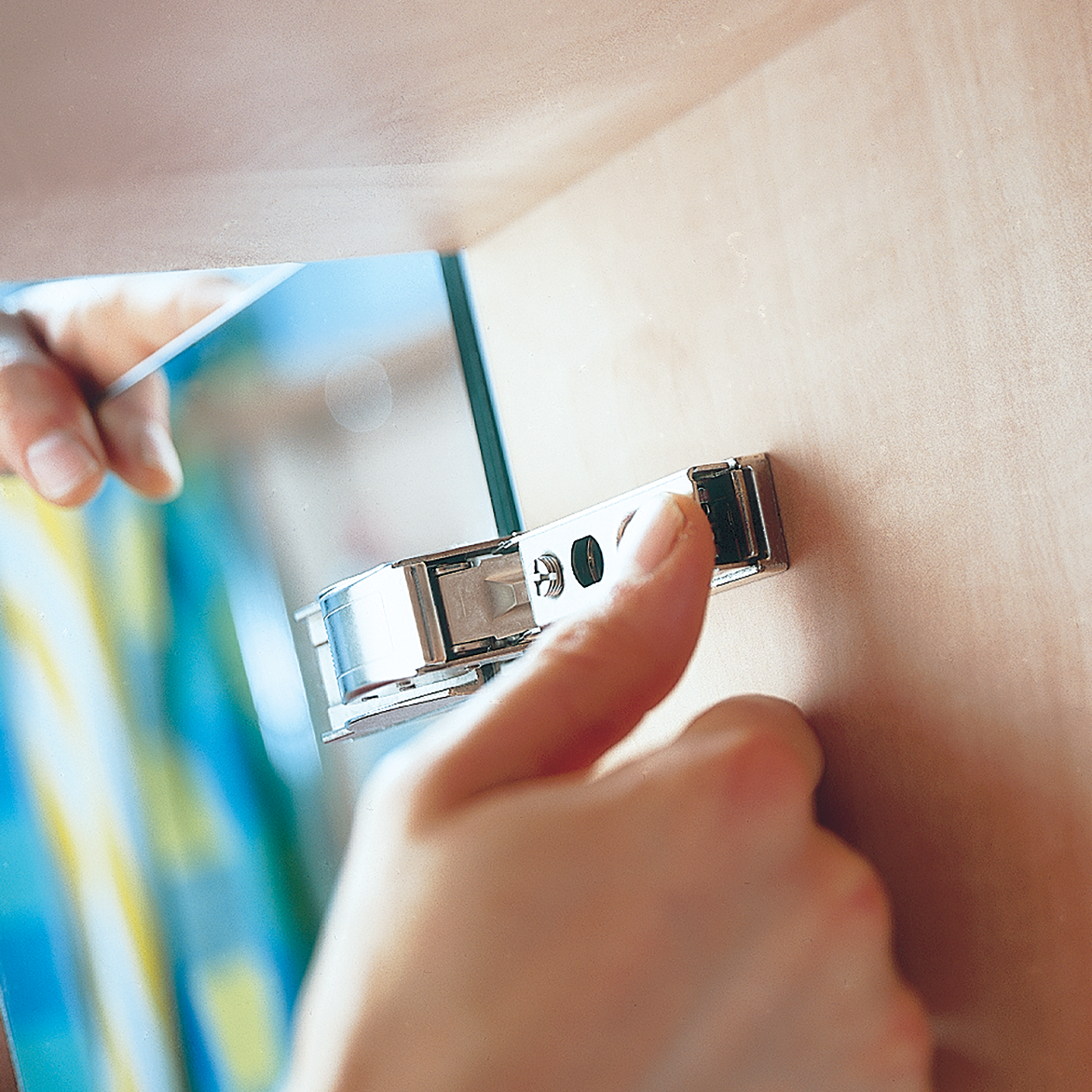

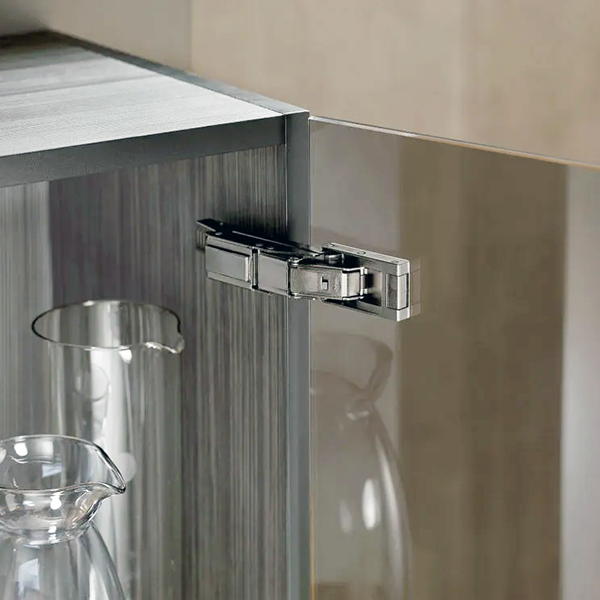

Pre-installed door plates for compatible Blum CRISTALLO hinges simplify installation.
.svg){kind=small}
Maximizes visibility into cabinetry without the visual interruption of a surrounding frame.
Additional fabrication and custom pattern etching available for decorative applications.
6mm tempered glass provides strength and durability for everyday use.
.png)
.png)
Glass Options
Select from the glass types available for custom frameless cabinet doors.
Clear
Classic transparent glass for a clean, timeless look.
Compatible Hardware
Click below to see the hinge specifications

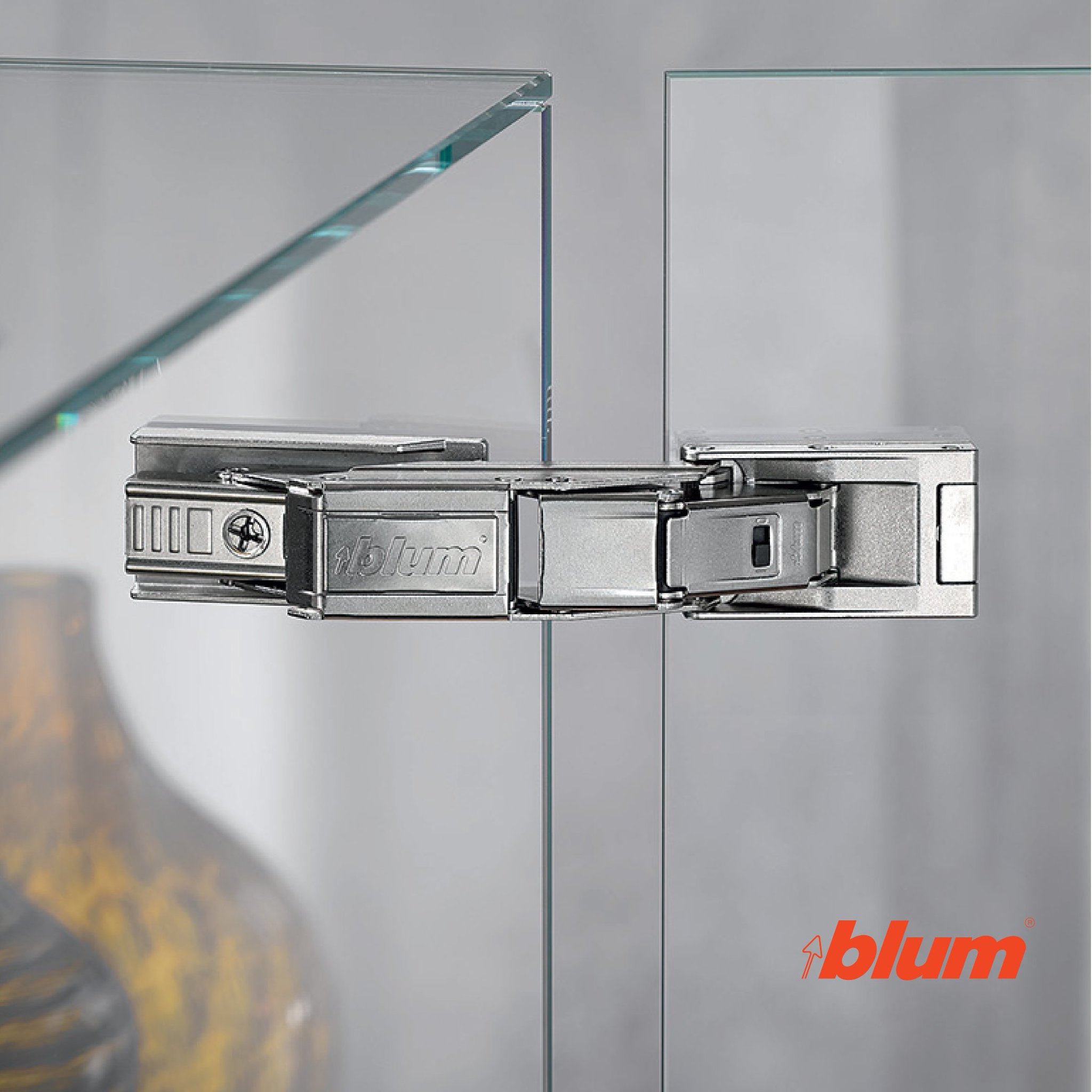

Blum CRISTALLO Frameless Glass Door Hinge
71B4500C
Design Guidelines
Dimensions
- Maximum height 84" (2133.6mm)
- Maximum width 25.5" (647.7mm)
- Maximum area 14 sq ft
- Glass thickness 6mm (1/4")
- Manufacturing tolerance ±2mm
Glass & Hardware
- Glass options Clear, Low-Iron Clear, Satin, Low-Iron Satin, Grey Clear & Bronze Clear
- Glass construction Tempered safety glass
- Edge finish Flat polished

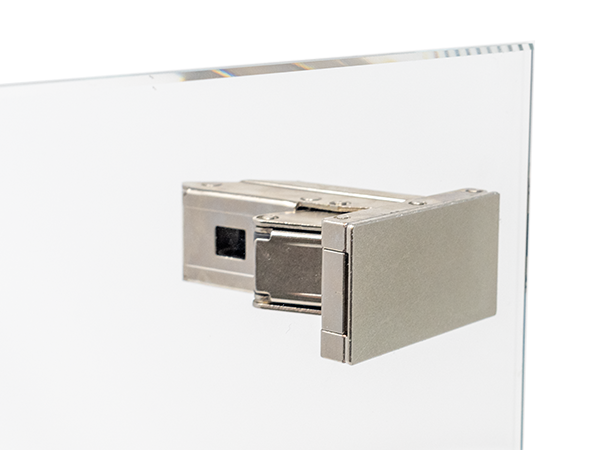

- Hinge preparation Pre-installed plates for Blum CRISTALLO hinges
- Decorative glass fabrication Available
- Drawer fronts Not recommended
