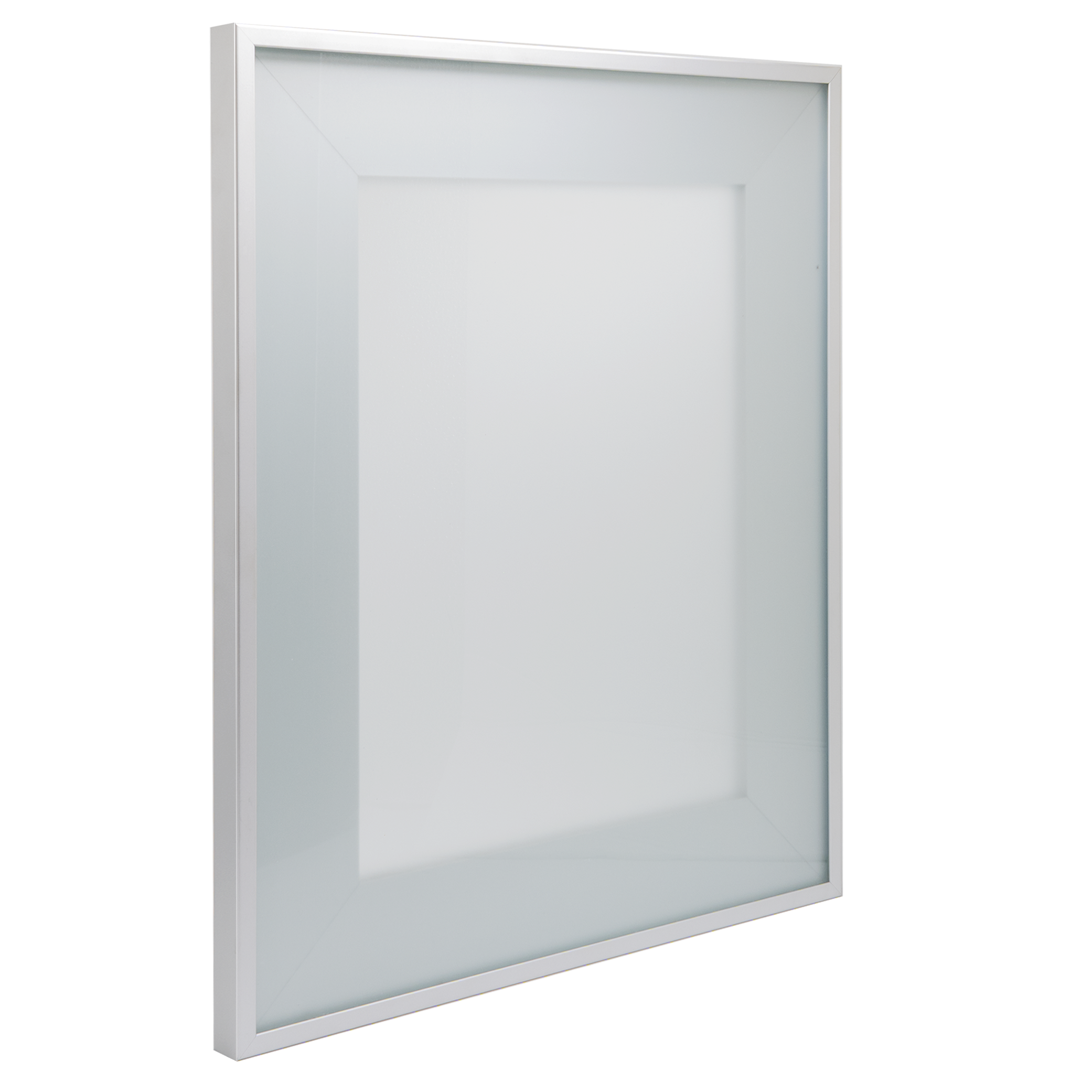

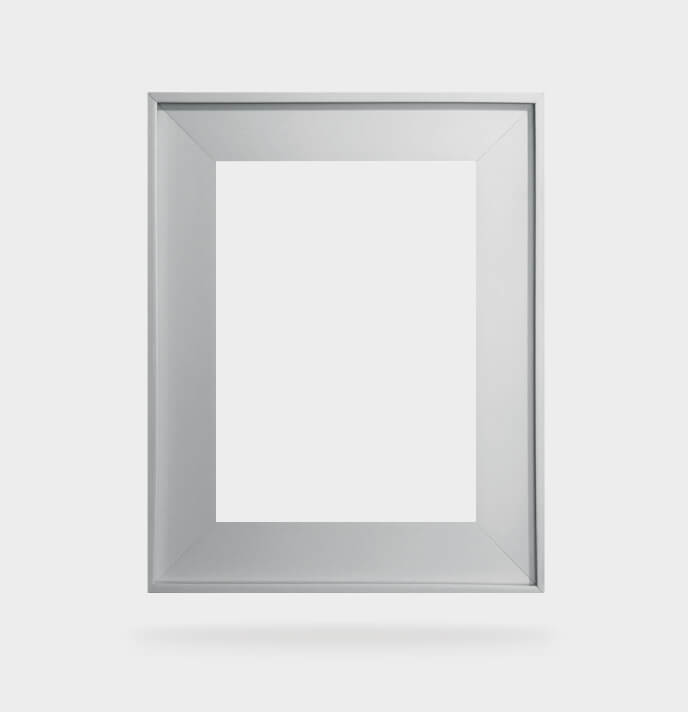

AF002

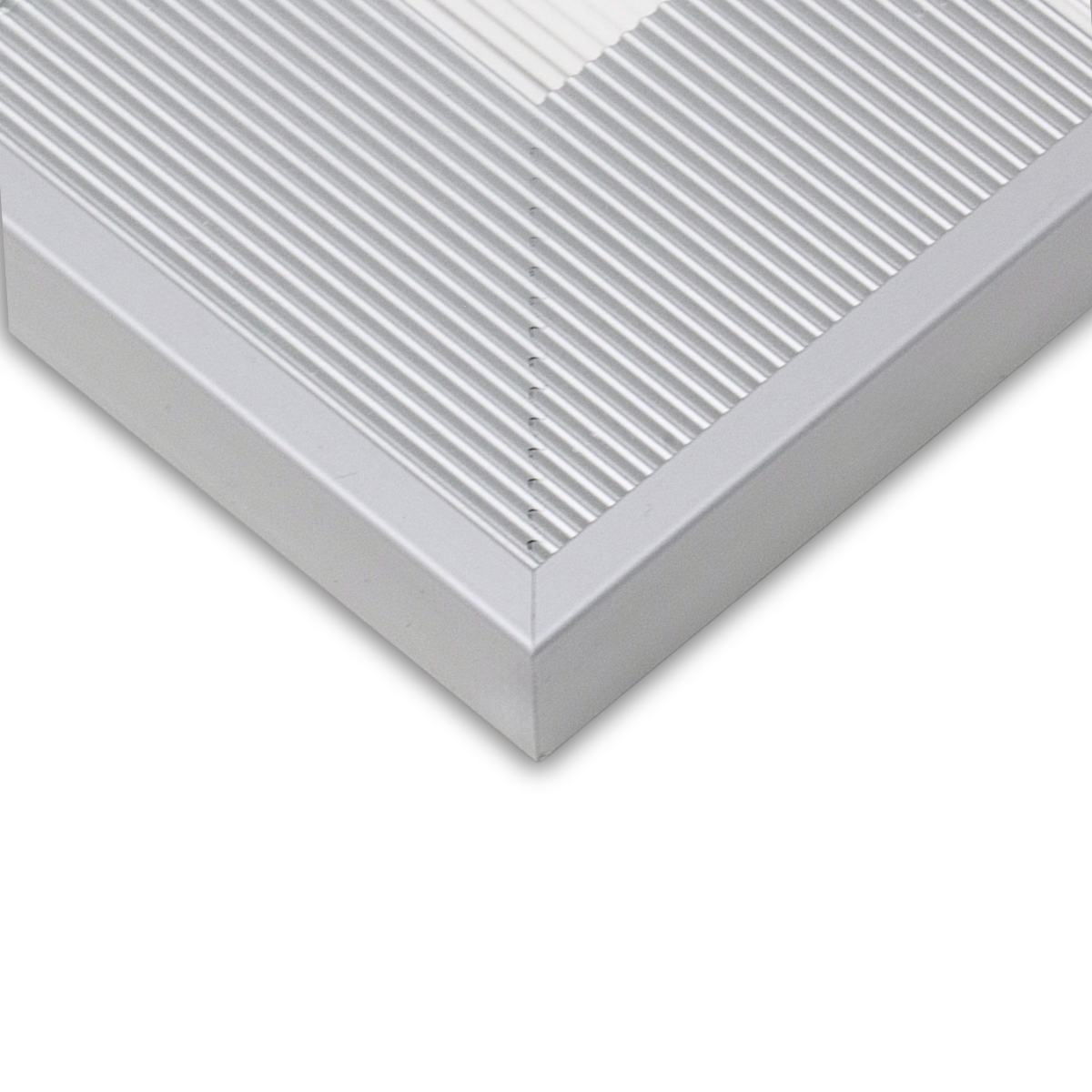

A versatile glass-overlay profile with a slim 8mm visible aluminum edge for a clean frame around the insert.
Our most versatile profile family, offering a range of frame widths, glass-overlay styles, and hardware options for residential and commercial applications.
Design Guidelines
Dimensions
- Width range 5.5"–96"
- Height range 5.5"–96"
- Max square footage 24 sq ft

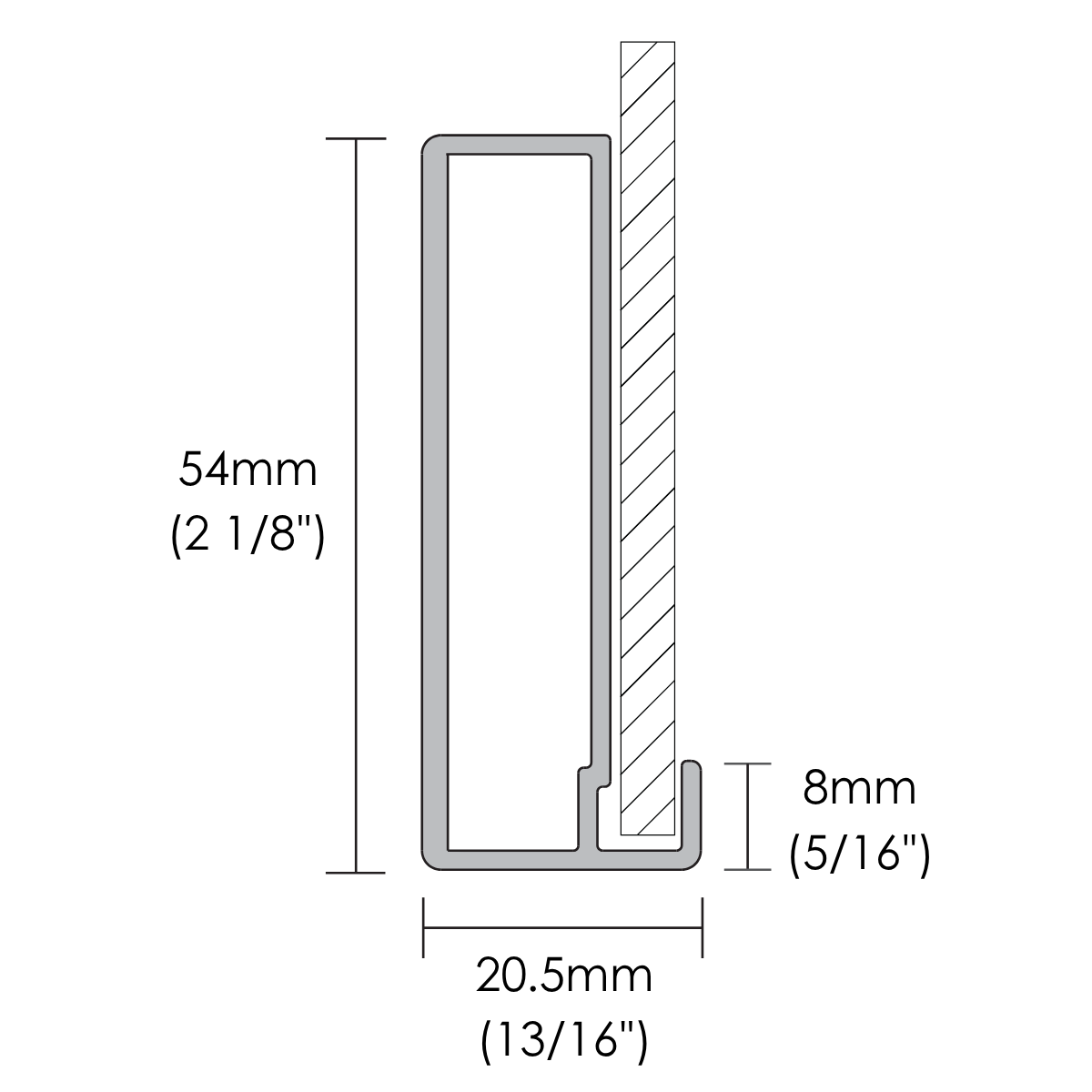

- Extrusion size 20.5 D × 54 H mm
- Visible edge 8mm
Compatibility & insert
- Insert restrictions 4mm (.156") with seamed edge
- Insert installation method Assembled with gasket
- Hinge Standard 35mm Euro hinges
- Handle hole Yes – locations must be specified at time of order
- Decorative hardware 3" flush mount finger pull
Finish Options
Click a finish to preview it. Order a physical sample to see the true color before specifying.
Natural Aluminum
Natural silver-toned aluminum finish with a clean, contemporary appearance.
Brushed Stainless
Aluminum finish with the refined appearance of brushed stainless steel.
Black
Solid black aluminum finish for a clean and modern appearance.
Onyx - Black Matte
Deep black finish with a smooth matte appearance.
Bronze Matte
Warm bronze finish with a subtle matte surface.
Luxe Bronze
Rich bronze finish with an elevated metallic appearance.
Graphite
Dark graphite finish with a refined metallic appearance.
Modern Brass
A warm, sophisticated brass finish with a refined metallic sheen that adds modern elegance to any space.
Gold
Warm gold finish intended for decorative applications.
Arctic Silver
Light silver finish with a cool metallic appearance.

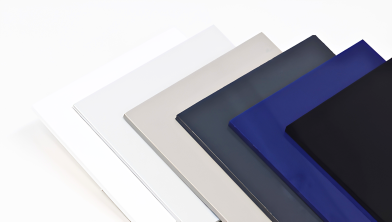

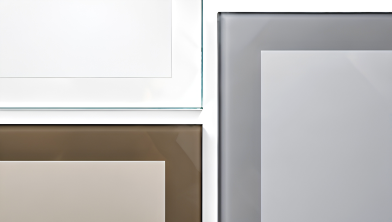

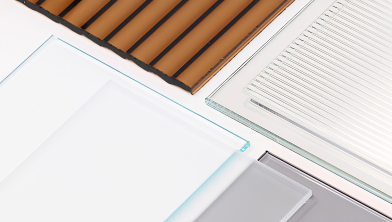

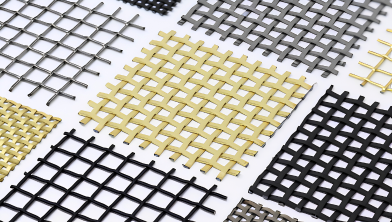

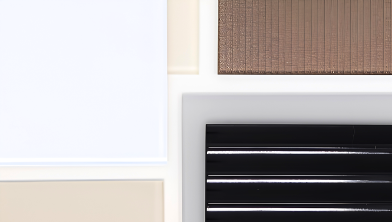

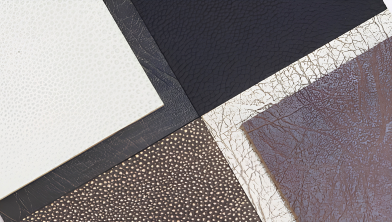

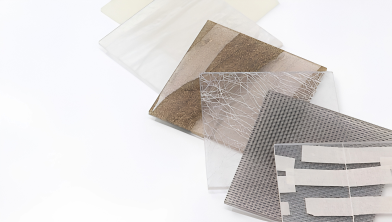

Insert Options
AF002
accepts 4mm (.156") inserts with a seamed edge. All options below are compatible. Click an insert to view all.

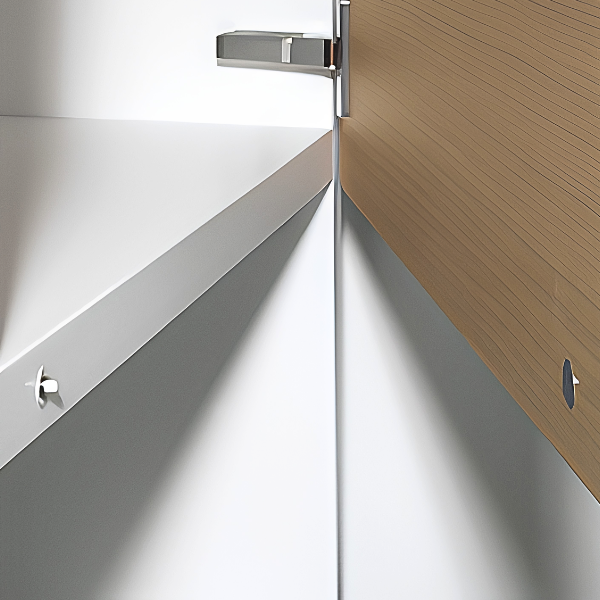

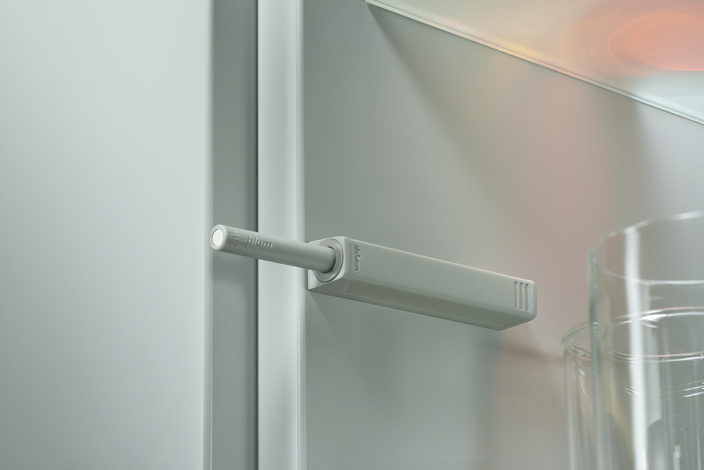

Hardware Options
Door Designer
Select your finish, insert, and dimensions. Save your configuration to a shareable link or PDF, perfect for sending to customers or your rep.

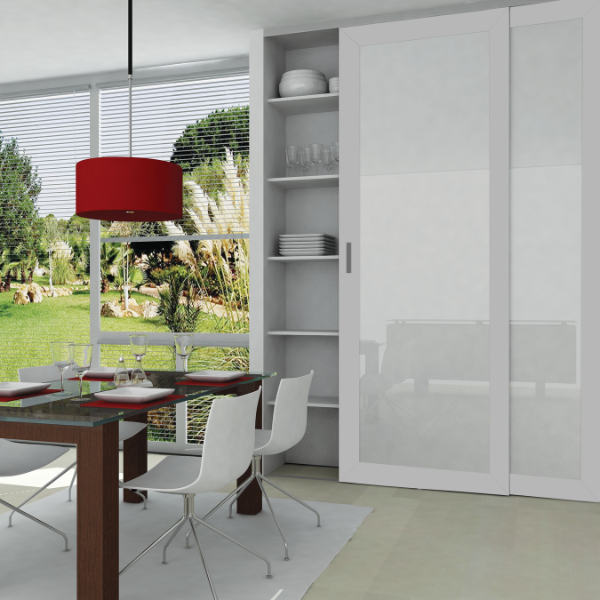

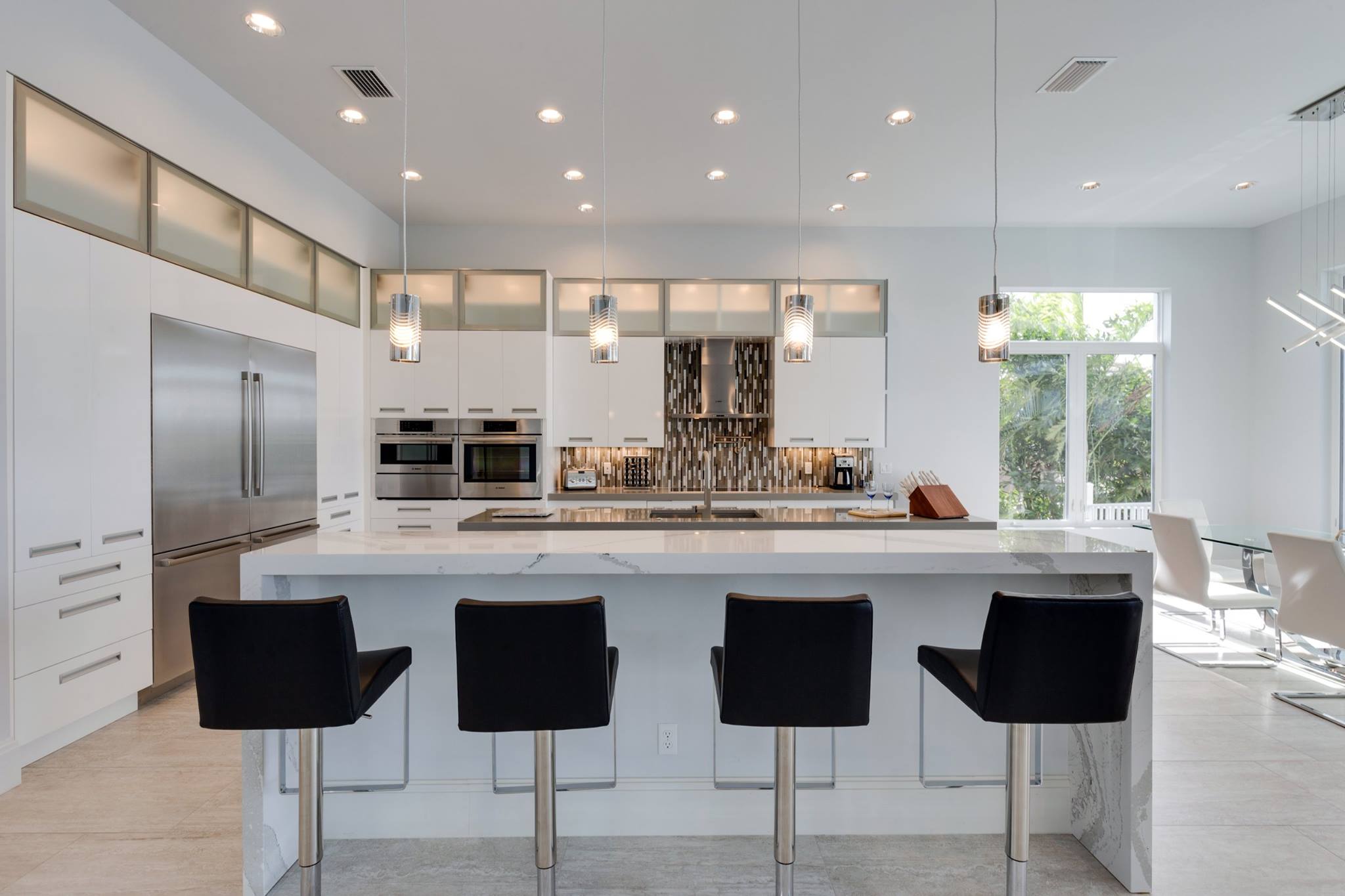

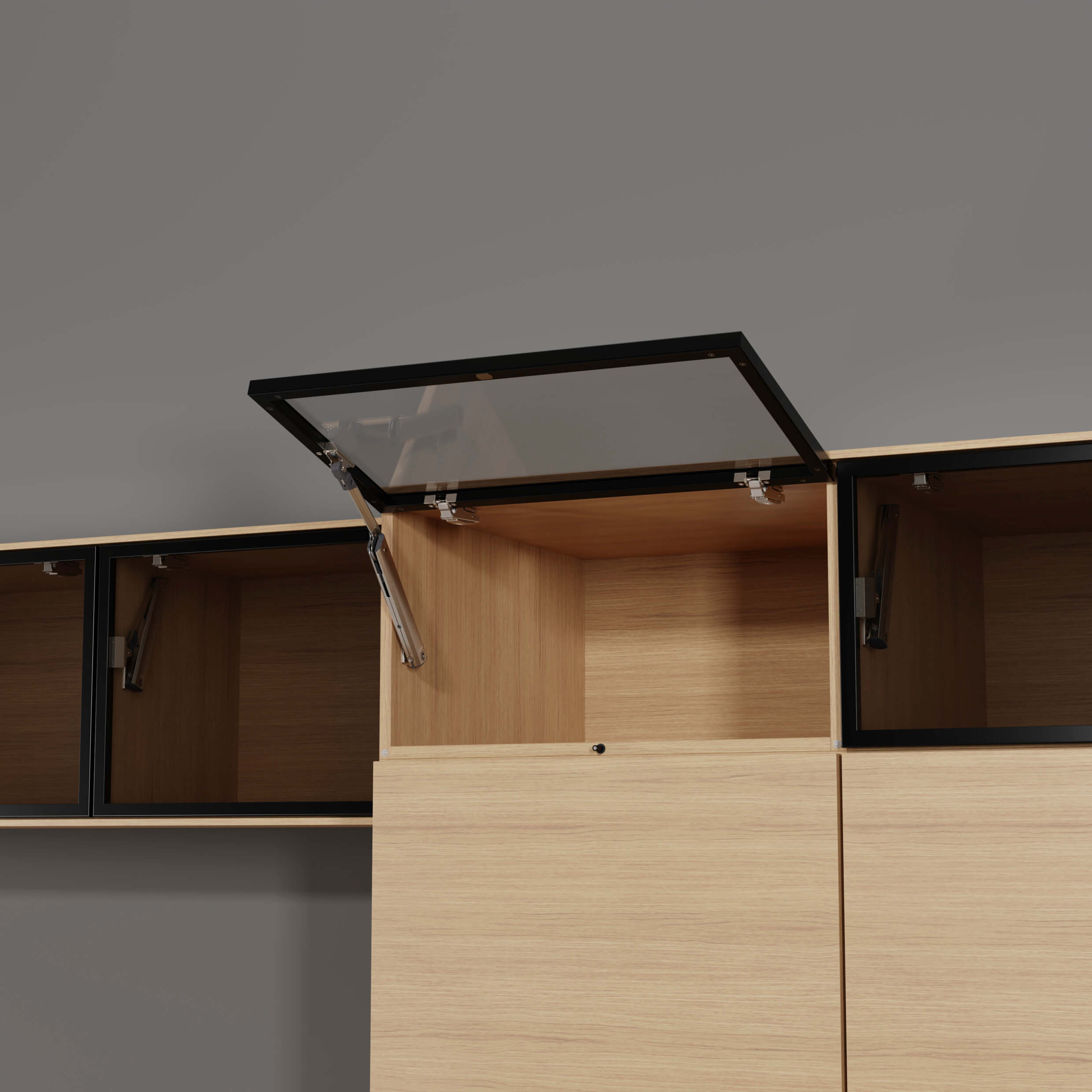

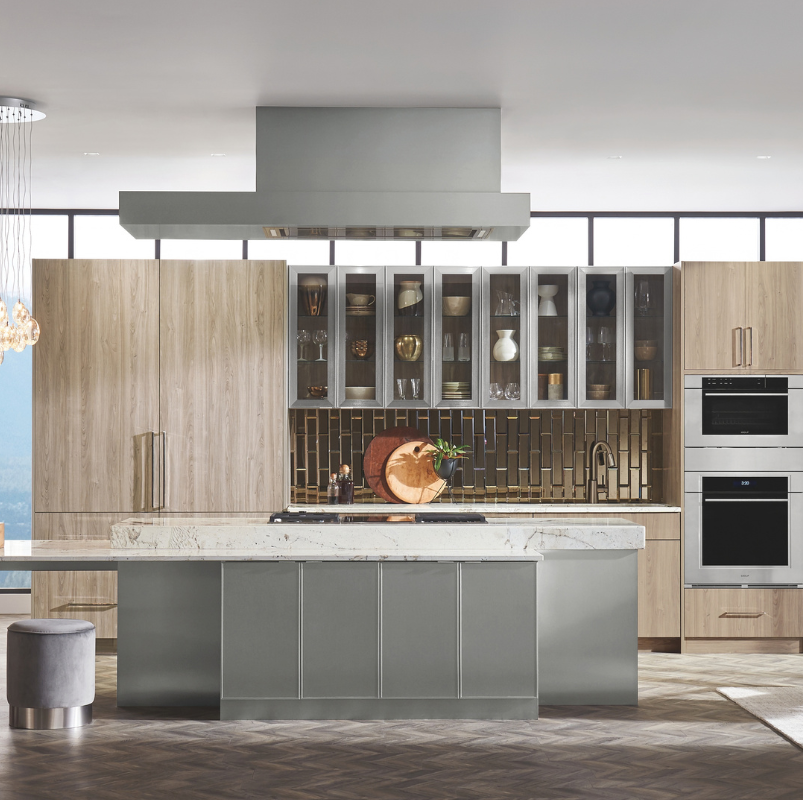

Inspiration Gallery
Real installations by designers and cabinet shops across North America.
What is the maximum size available for AF002?
AF002 can be manufactured up to 96" wide or tall, with a maximum area of 24 square feet. Minimum width and height are 5.5".
What thickness of glass is compatible with AF002?
AF002 accommodates 4mm glass inserts with a seamed edge. The insert is assembled into the aluminum frame using a gasket.

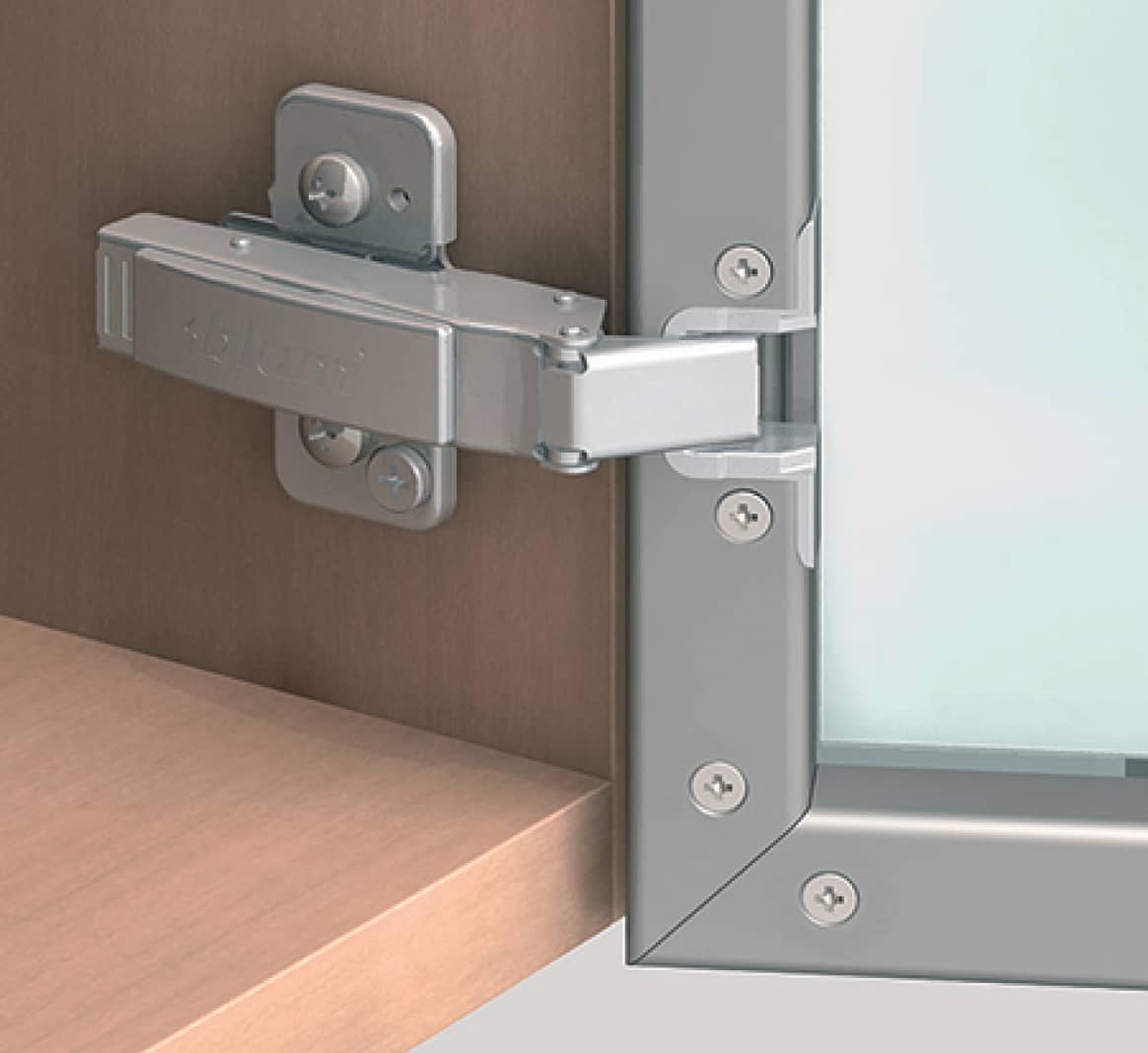

Which hinges are compatible with AF002?
AF002 uses standard 35mm European screw-on hinges, including compatible Blum and Salice models.
Can AF002 accommodate a flush-mounted finger pull?
Yes. AF002 supports the 3" flush-mounted finger pull only. Longer flush-mounted finger pulls are not available for this profile.
Can a handle hole be drilled through the glass on AF002?
Yes. Handle holes can be drilled through the glass insert. Locations must be specified when ordering, before the glass is tempered.
