AF003

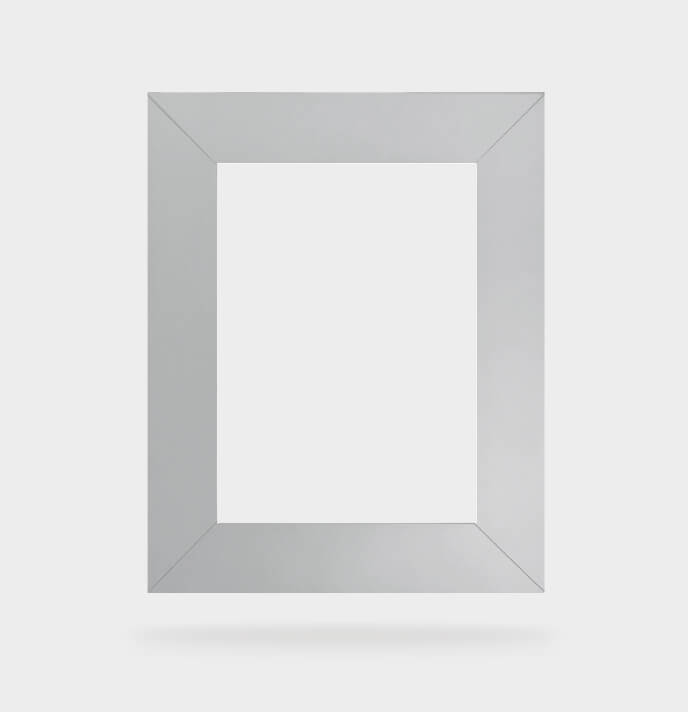

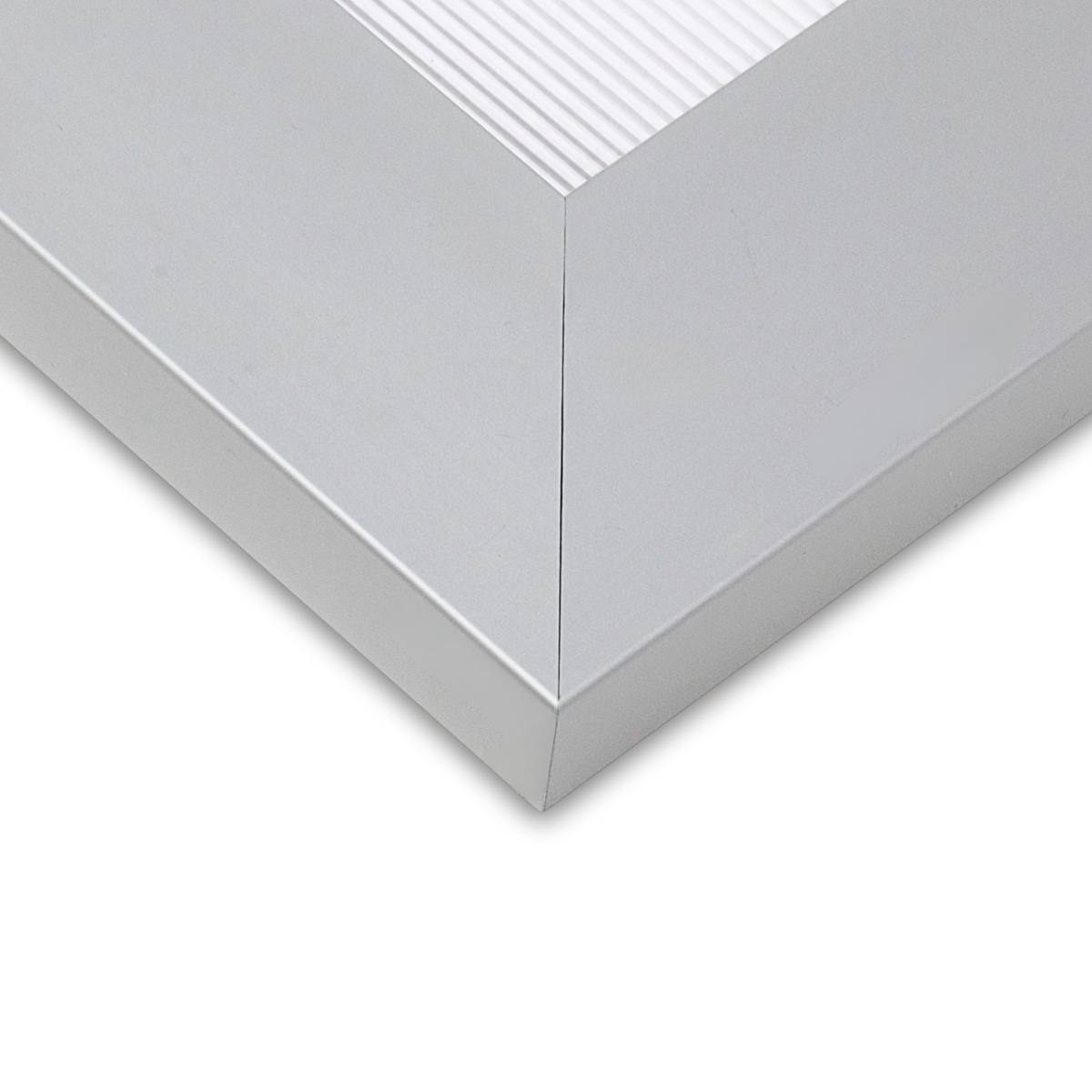

A substantial aluminum profile with a bold 54mm visible frame and no glass overlay, creating a strong architectural presence.
Our most versatile profile family, offering a range of frame widths, glass-overlay styles, and hardware options for residential and commercial applications.
Design Guidelines
Dimensions
- Width range 5.5"–96"
- Height range 5.5"–96"
- Max square footage 24 sq ft

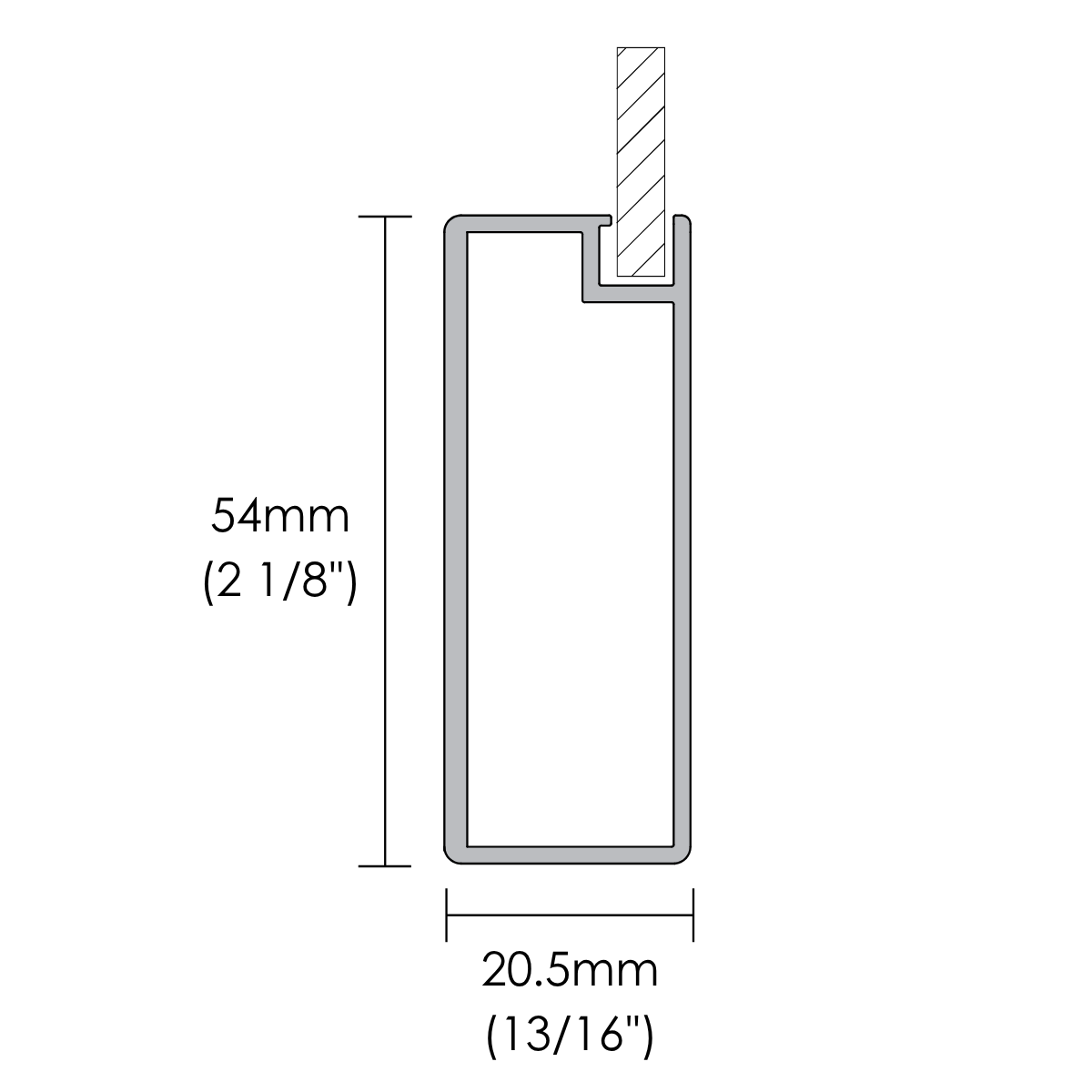

- Extrusion size 20.5 D × 54 H mm
- Visible edge 54mm
Compatibility & insert
- Insert restrictions 4mm (.156") with seamed edge
- Insert installation method Assembled with gasket
- Hinge Standard 35mm Euro hinges
- Handle hole Yes – drill through frame only
- Decorative hardware Flush mount finger pull, surface mount finger pull, recessed pull
Finish Options
Click a finish to preview it. Order a physical sample to see the true color before specifying.
Natural Aluminum
Natural silver-toned aluminum finish with a clean, contemporary appearance.
Brushed Stainless
Aluminum finish with the refined appearance of brushed stainless steel.
Black
Solid black aluminum finish for a clean and modern appearance.
Onyx - Black Matte
Deep black finish with a smooth matte appearance.
Bronze Matte
Warm bronze finish with a subtle matte surface.
Luxe Bronze
Rich bronze finish with an elevated metallic appearance.
Graphite
Dark graphite finish with a refined metallic appearance.
Modern Brass
A warm, sophisticated brass finish with a refined metallic sheen that adds modern elegance to any space.
Gold
Warm gold finish intended for decorative applications.
Arctic Silver
Light silver finish with a cool metallic appearance.
Insert Options
AF003
accepts 4mm (.156") inserts. All options below are compatible. Click an insert to view all.
Door Designer
Select your finish, insert, and dimensions. Save your configuration to a shareable link or PDF, perfect for sending to customers or your rep.

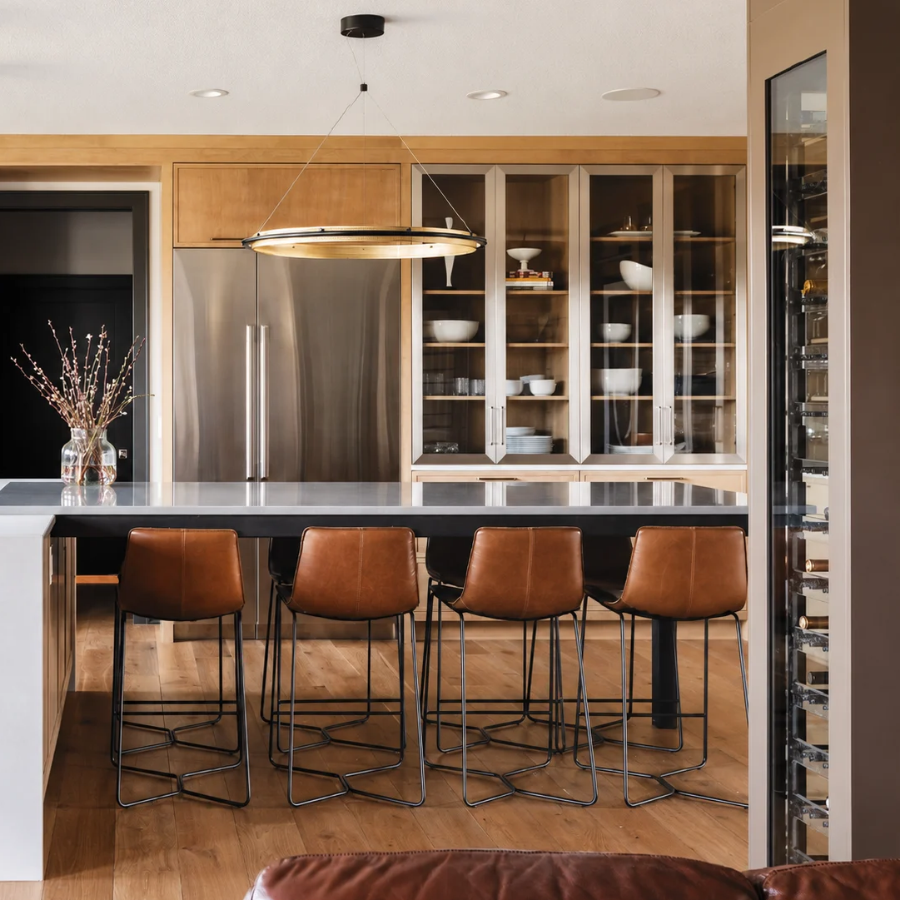

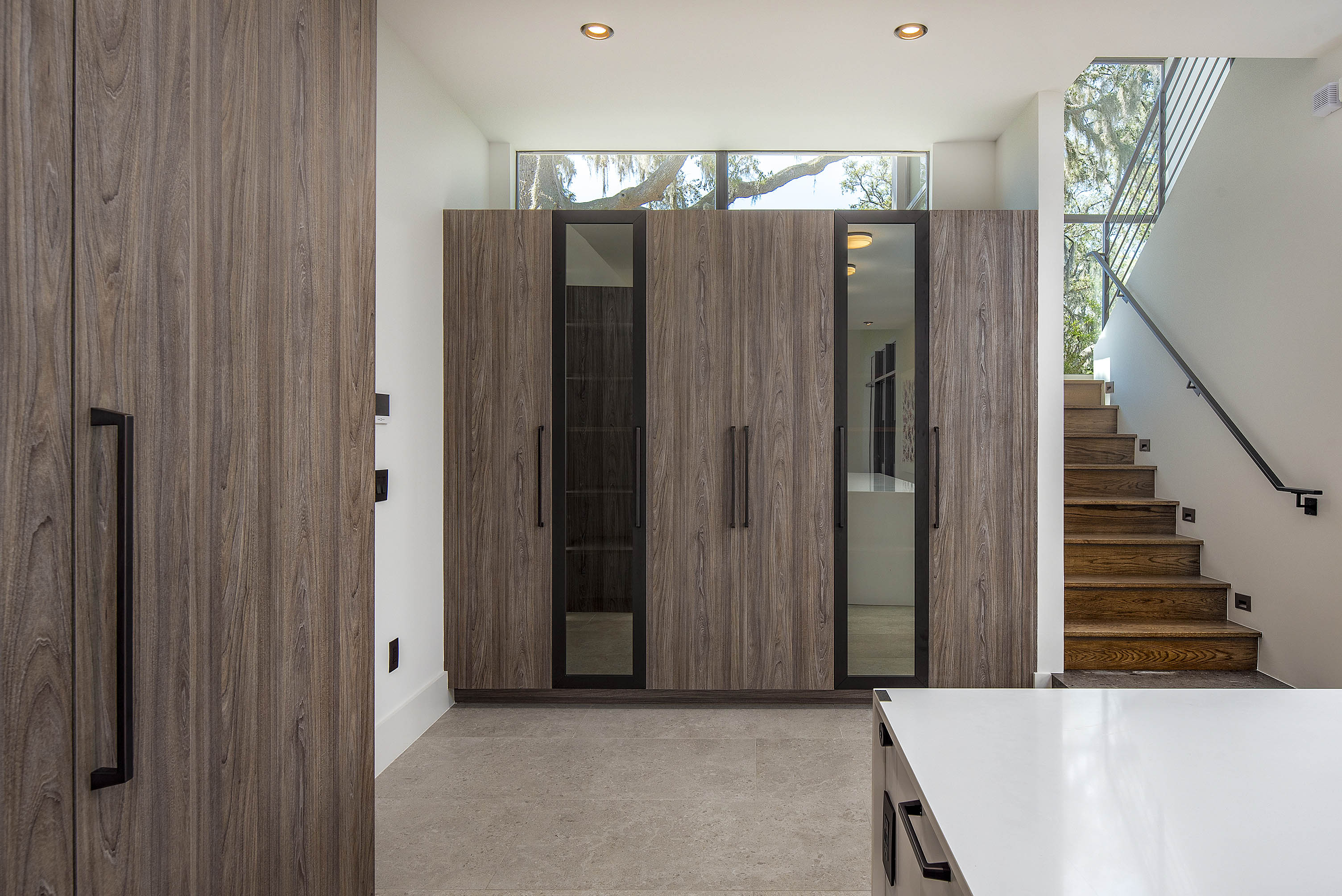

Inspiration Gallery
Real installations by designers and cabinet shops across North America.
What is the visible frame width of AF003?
AF003 features a 54mm (2 1/8") visible aluminum frame with no glass overlay, creating a defined border around the insert.
What is the maximum size available for AF003?
AF003 can be manufactured up to 96" wide or tall, with a maximum area of 24 square feet. Minimum width and height are 5.5".
Which decorative hardware options are compatible with AF003?
AF003 accommodates flush-mounted finger pulls, surface-mounted finger pulls, and recessed pulls.
Which hinges are compatible with AF003?
AF003 uses standard 35mm European screw-on hinges, including compatible Blum and Salice models.
Can handle holes be drilled through the glass on AF003?
No. Handle holes must be drilled through the aluminum frame rather than the glass insert.
