AF004

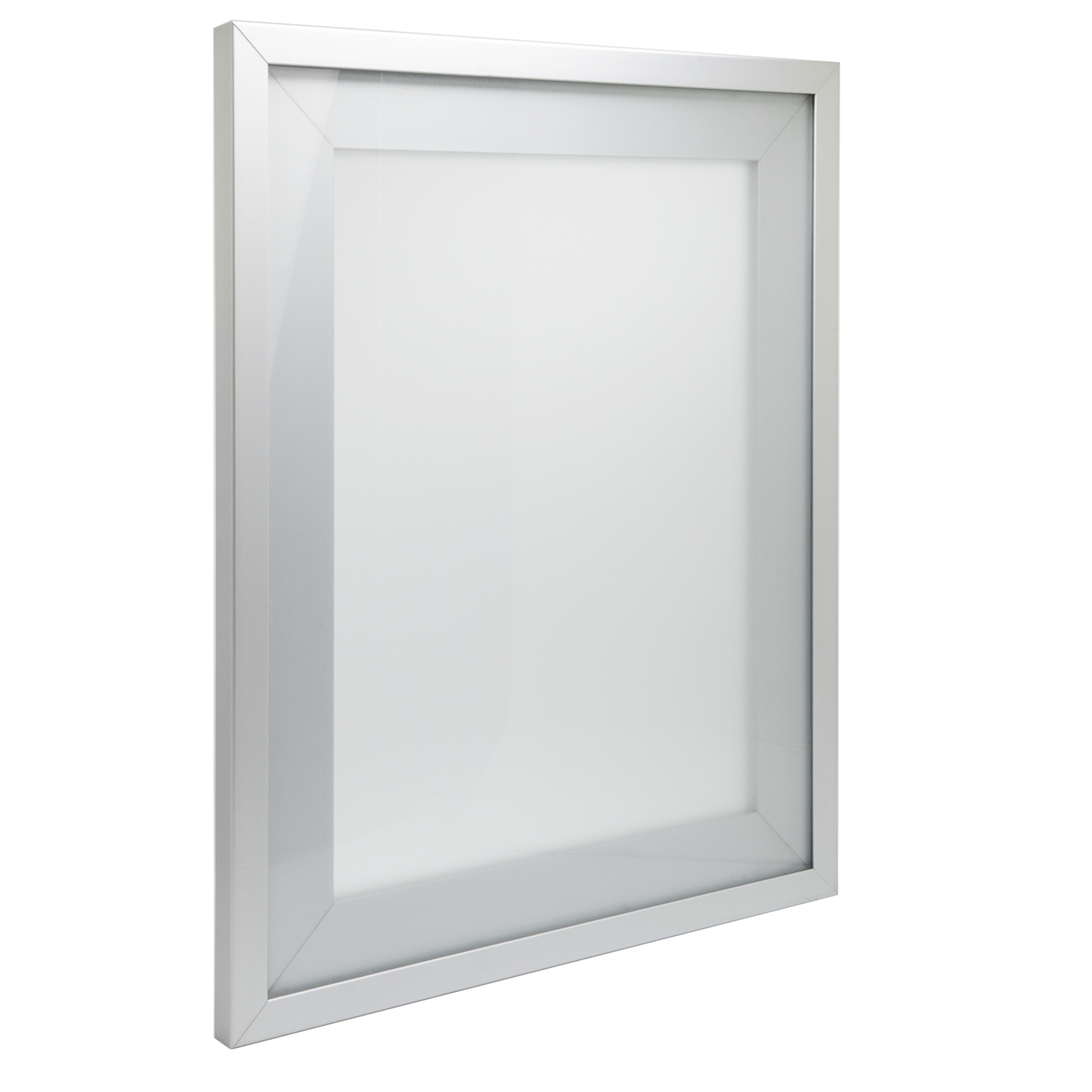

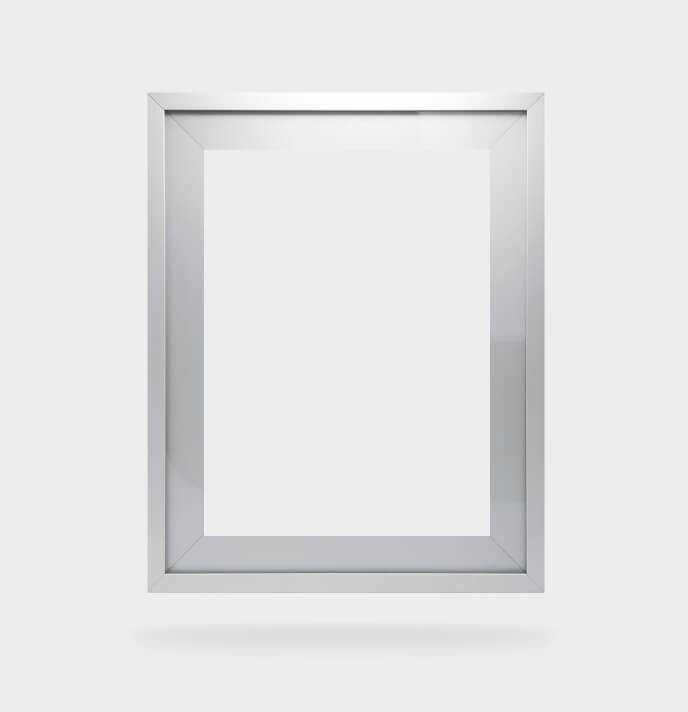

A refined glass-overlay profile featuring a 14mm visible edge for a balanced combination of aluminum and glass.
Our most versatile profile family, offering a range of frame widths, glass-overlay styles, and hardware options for residential and commercial applications.
Design Guidelines
Dimensions
- Width range 5.5"–96"
- Height range 5.5"–96"
- Max square footage 24 sq ft

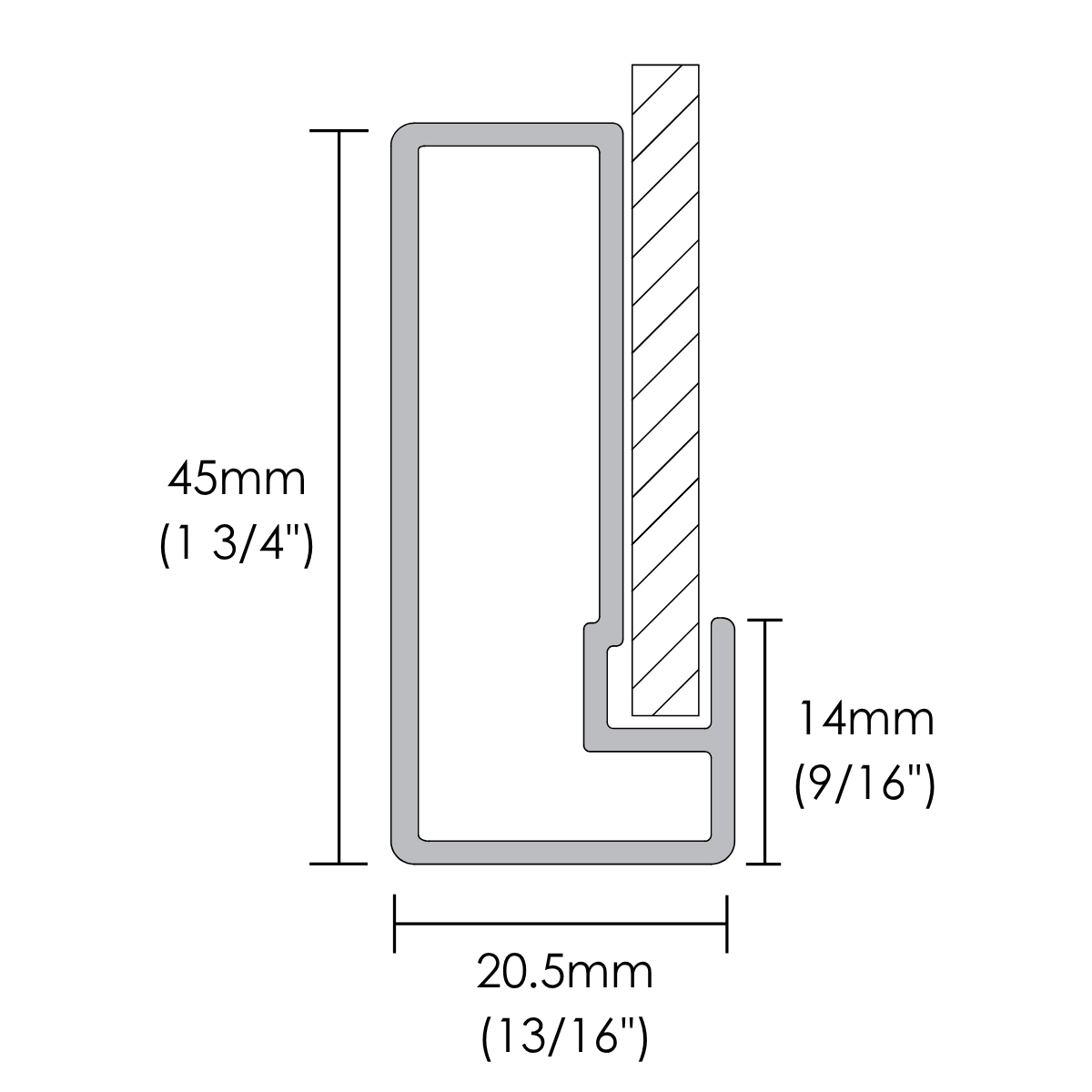

- Extrusion size 20.5 D × 45 H mm

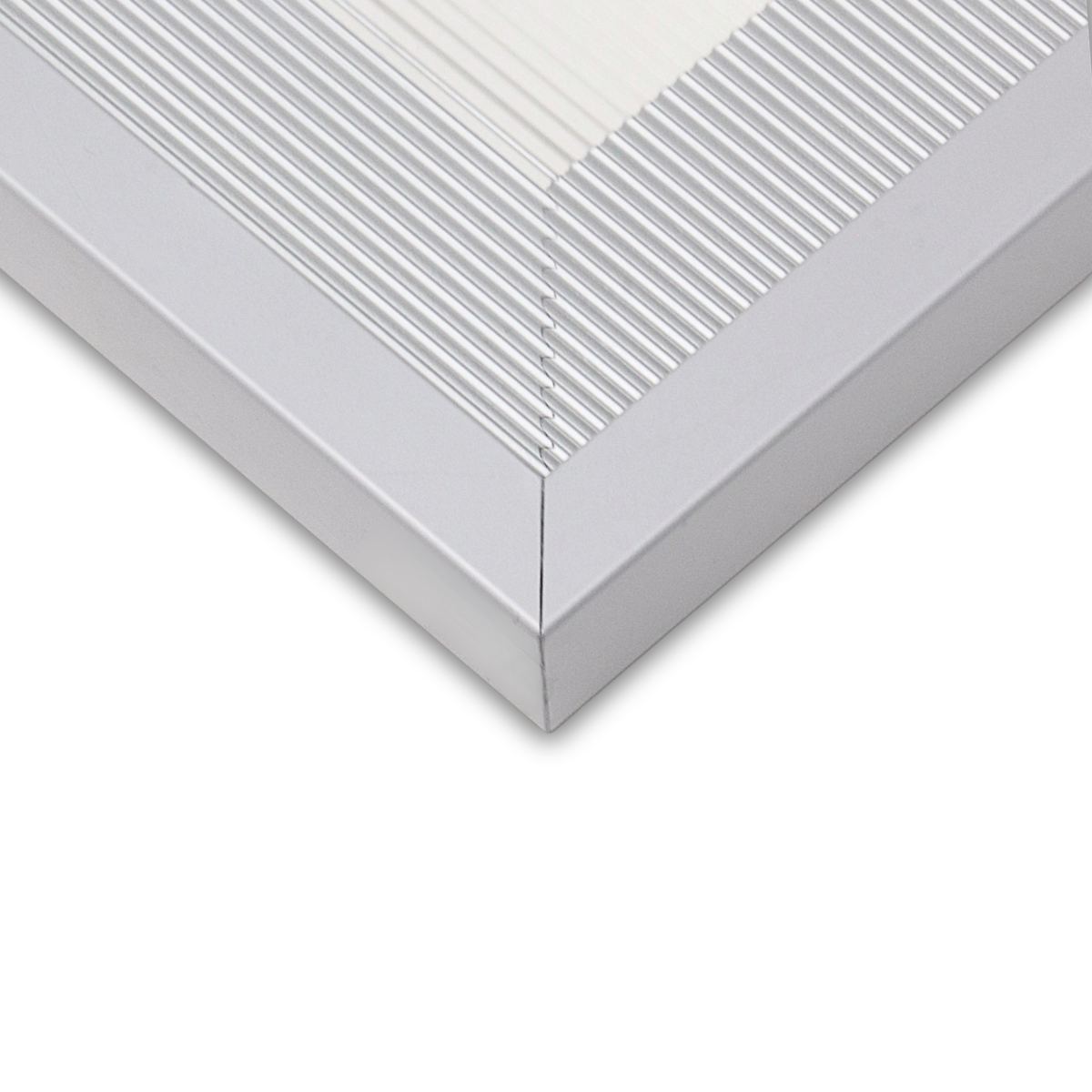

- Visible edge 14mm
Compatibility & insert
- Insert restrictions 4mm (.156") with seamed edge
- Insert installation method Assembled with gasket
- Hinge Standard 35mm Euro hinges
- Handle hole Yes – locations must be specified at time of order
- Decorative hardware Flush mount finger pull, surface mount finger pull
Finish Options
Click a finish to preview it. Order a physical sample to see the true color before specifying.
Natural Aluminum
Natural silver-toned aluminum finish with a clean, contemporary appearance.
Brushed Stainless
Aluminum finish with the refined appearance of brushed stainless steel.
Black
Solid black aluminum finish for a clean and modern appearance.
Onyx - Black Matte
Deep black finish with a smooth matte appearance.
Bronze Matte
Warm bronze finish with a subtle matte surface.
Luxe Bronze
Rich bronze finish with an elevated metallic appearance.
Graphite
Dark graphite finish with a refined metallic appearance.
Modern Brass
A warm, sophisticated brass finish with a refined metallic sheen that adds modern elegance to any space.
Gold
Warm gold finish intended for decorative applications.
Arctic Silver
Light silver finish with a cool metallic appearance.
Insert Options
AF004
accepts 4mm (.156") inserts. All options below are compatible. Click an insert to view all.
Hardware Options
Door Designer
Select your finish, insert, and dimensions. Save your configuration to a shareable link or PDF, perfect for sending to customers or your rep.
Inspiration Gallery
Real installations by designers and cabinet shops across North America.
What is the visible aluminum edge on AF004?
AF004 features a 14mm (9/16") visible edge with a glass overlay design and a 45mm aluminum extrusion.
What is the maximum size available for AF004?
AF004 supports widths and heights from 5.5" to 96", with a maximum area of 24 square feet.
Can handle holes be drilled through the glass on AF004?
Yes. Handle holes can be drilled through the glass insert, but their locations must be specified at the time of order.
What glass thickness does AF004 accommodate?
AF004 accommodates 4mm glass inserts with a seamed edge, secured within the aluminum frame using a gasket.
