AF006

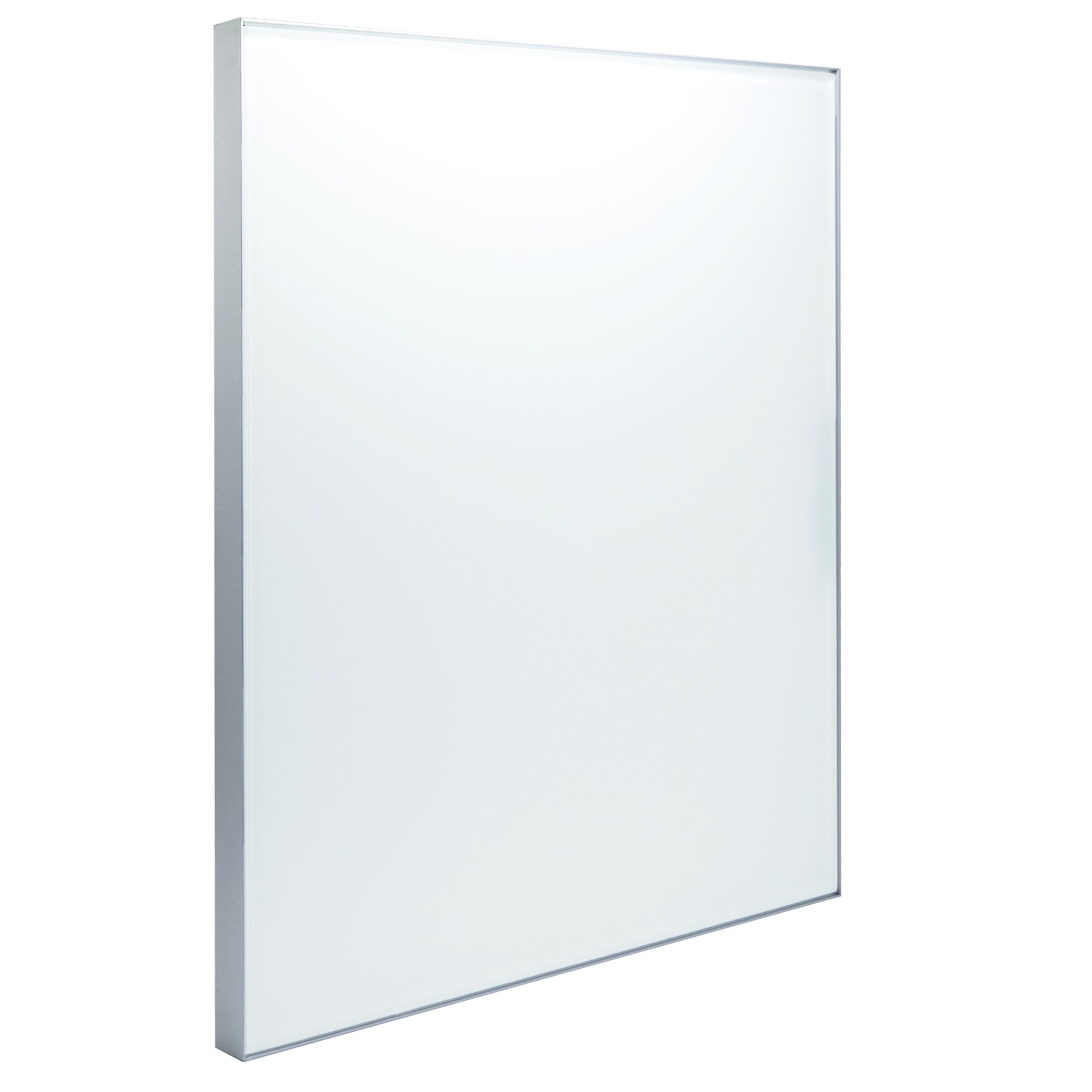

An ultra-minimal glass-overlay profile with just 1.5mm of visible metal edging, designed for opaque backpainted glass and mirror inserts.

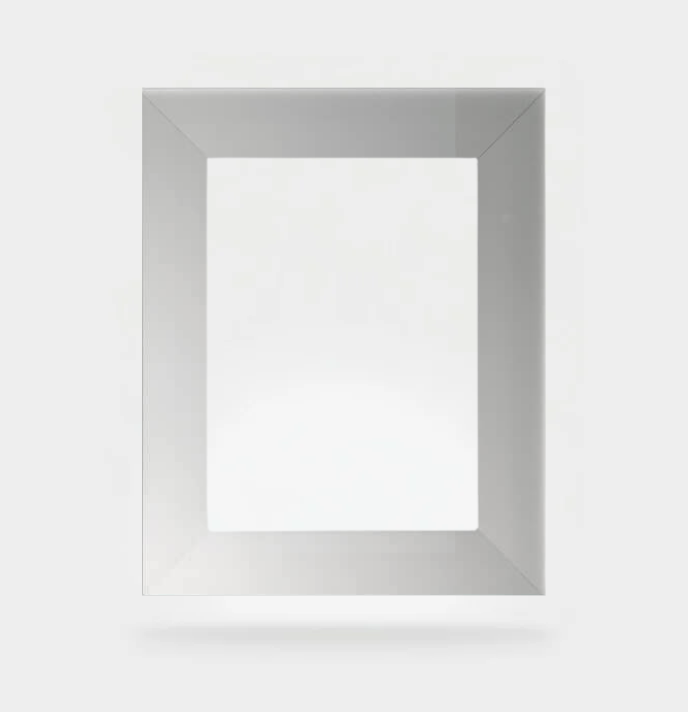

Wide frame profile designed for full overlay applications, providing complete cabinet coverage with a clean, seamless look.
Design Guidelines
Dimensions
- Width range 5.5"–96"
- Height range 5.5"–96"
- Max square footage 24 sq ft
- Extrusion size 20.5 D × 45 H mm
- Visible edge 1.5mm
Compatibility & insert
- Insert restrictions 4mm (.156") with flat edge polish; opaque or °elusion inserts only
- Insert installation method Permanently adhered
- Hinge Standard 35mm Euro hinges
- Handle hole Yes – locations must be specified at time of order
- Decorative hardware Flush mount finger pull, surface mount finger pull
- Special note Insert is permanently adhered to the profile; door cannot be disassembled
Finish Options
Click a finish to preview it. Order a physical sample to see the true color before specifying.
Natural Aluminum
Natural silver-toned aluminum finish with a clean, contemporary appearance.
Brushed Stainless
Aluminum finish with the refined appearance of brushed stainless steel.
Black
Solid black aluminum finish for a clean and modern appearance.
Onyx - Black Matte
Deep black finish with a smooth matte appearance.
Bronze Matte
Warm bronze finish with a subtle matte surface.
Luxe Bronze
Rich bronze finish with an elevated metallic appearance.
Graphite
Dark graphite finish with a refined metallic appearance.
Modern Brass
A warm, sophisticated brass finish with a refined metallic sheen that adds modern elegance to any space.
Gold
Warm gold finish intended for decorative applications.
Arctic Silver
Light silver finish with a cool metallic appearance.

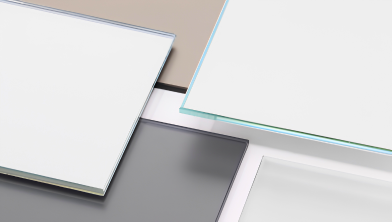

Insert Options
AF006
accepts 4mm (.156") inserts with a flat polished edge. Only opaque backpainted glass and mirror inserts are compatible. Click an insert to view all.
Hardware Options
Door Designer
Select your finish, insert, and dimensions. Save your configuration to a shareable link or PDF, perfect for sending to customers or your rep.

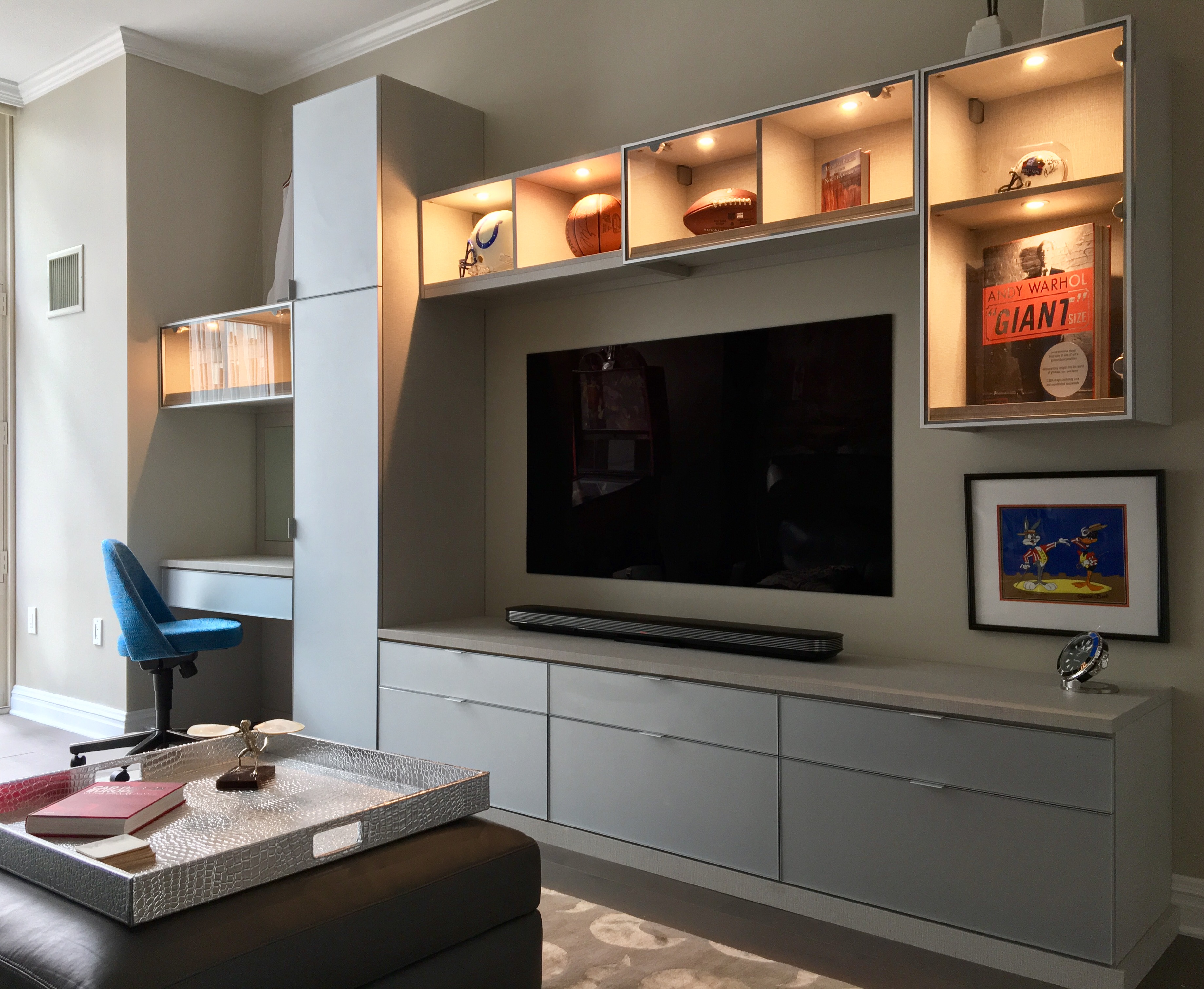

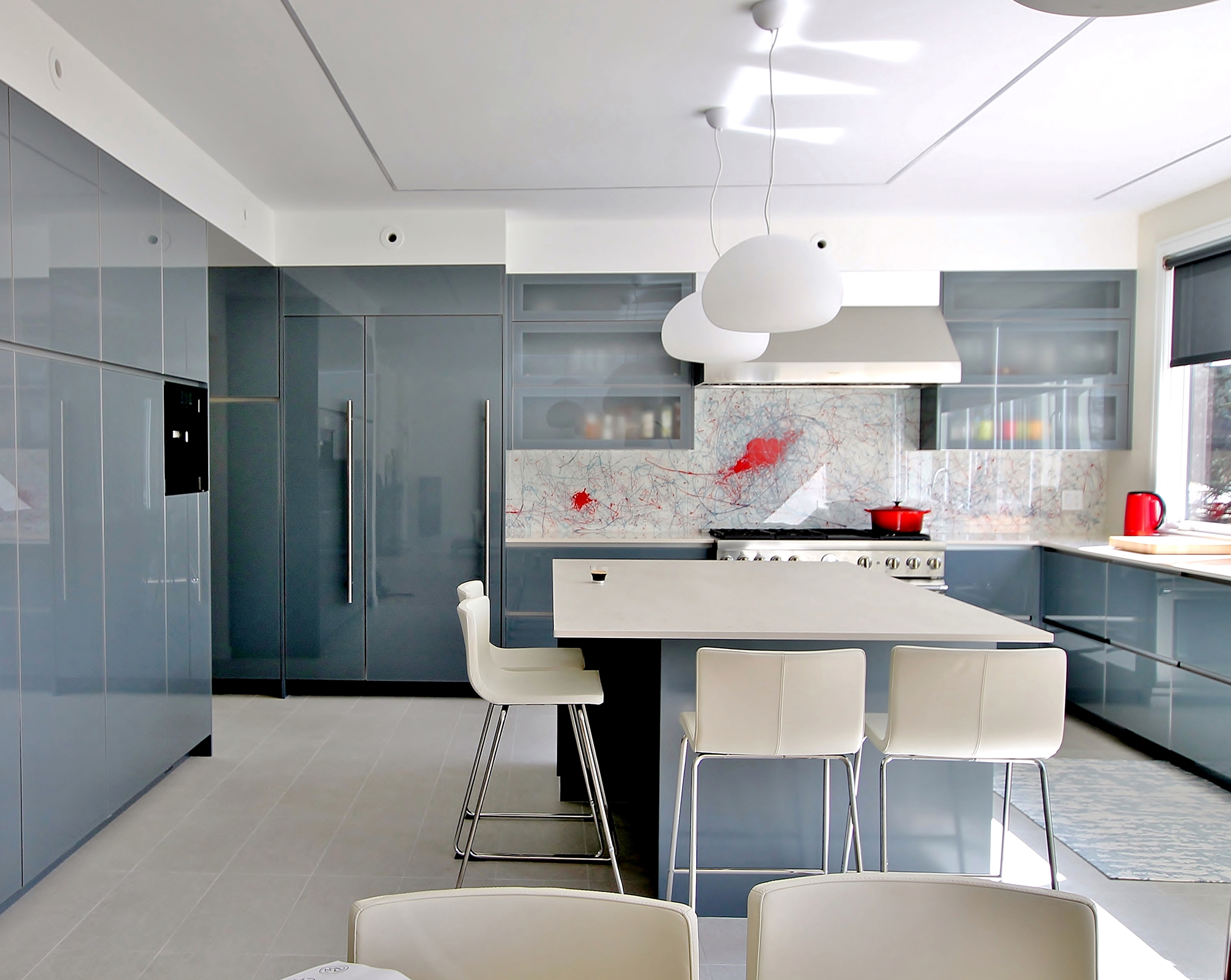

Inspiration Gallery
Real installations by designers and cabinet shops across North America.

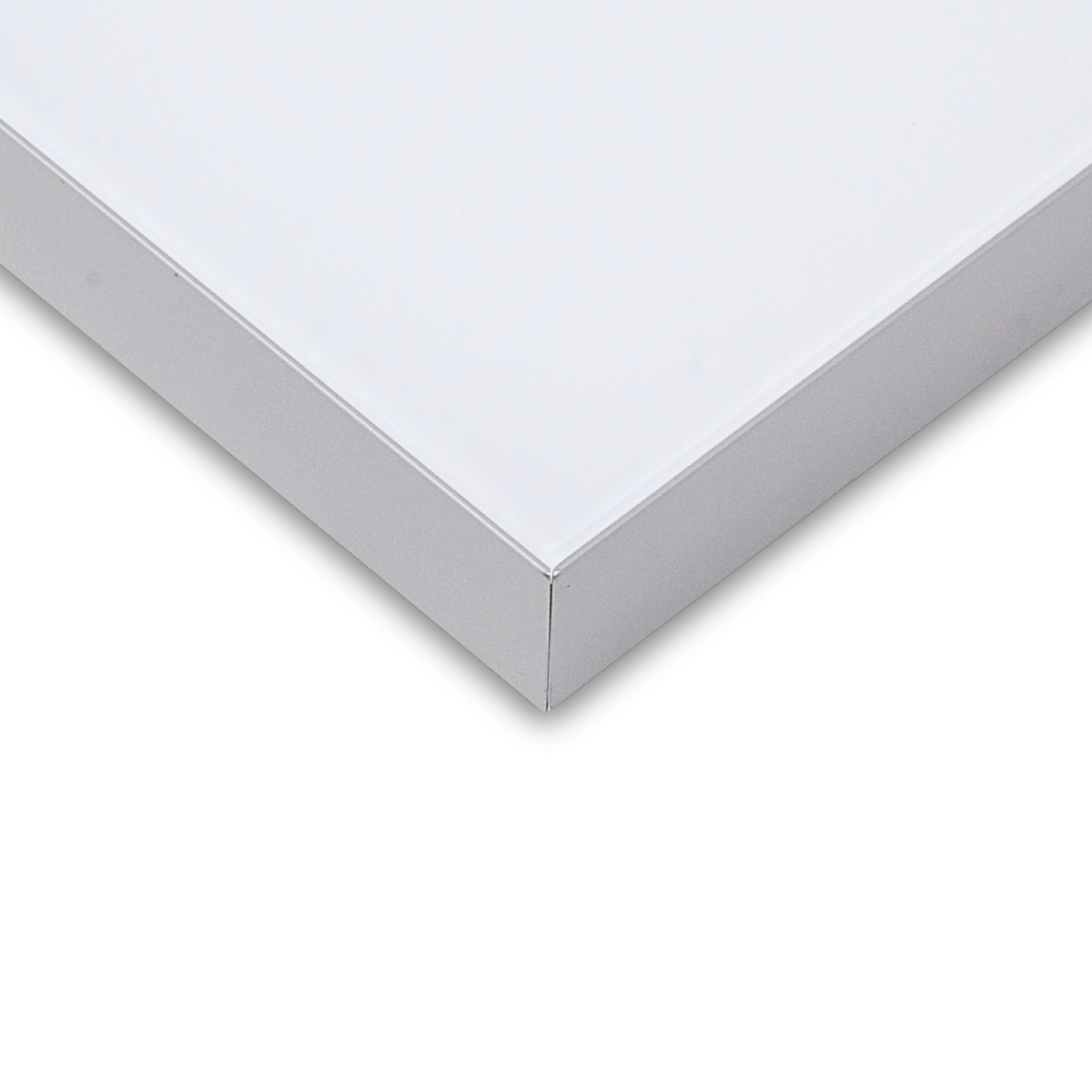

What is the visible aluminum edge on AF006?
AF006 features a thin 1.5mm visible aluminum edge surrounding the glass insert.
What types of inserts are compatible with AF006?
AF006 is designed for opaque 4mm inserts, including backpainted glass and mirror glass with a flat polished edge. Transparent glass is not compatible.
Can AF006 be ordered as a frame only?
Yes, but the customer is responsible for providing an appropriate insert bonding solution for frame-only orders.AF006 supports widths and heights from 5.5" to 96", with a maximum area of 24 square feet.AF006 features a thin 1.5mm visible aluminum edge surrounding the glass insert.
What is the maximum size available for AF006?
AF006 supports widths and heights from 5.5" to 96", with a maximum area of 24 square feet.AF006 features a thin 1.5mm visible aluminum edge surrounding the glass insert.
Can the glass insert be removed or replaced on AF006?
No. Inserts are permanently adhered to the aluminum frame, so AF006 doors cannot be disassembled.
