AF007

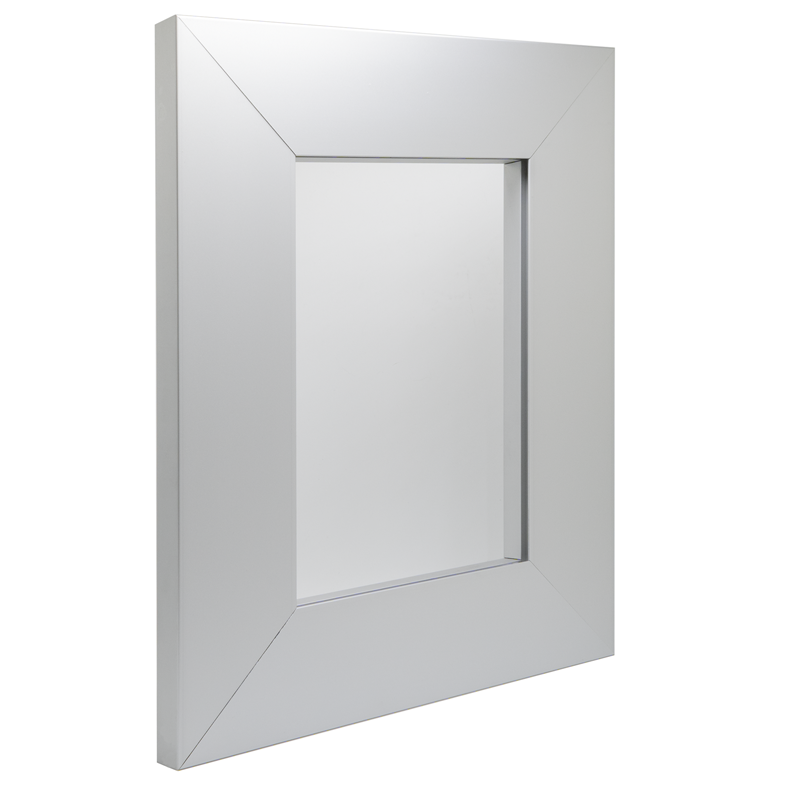

A bold 70mm profile with no glass overlay, ideal for designs that call for a substantial aluminum frame and strong visual presence.

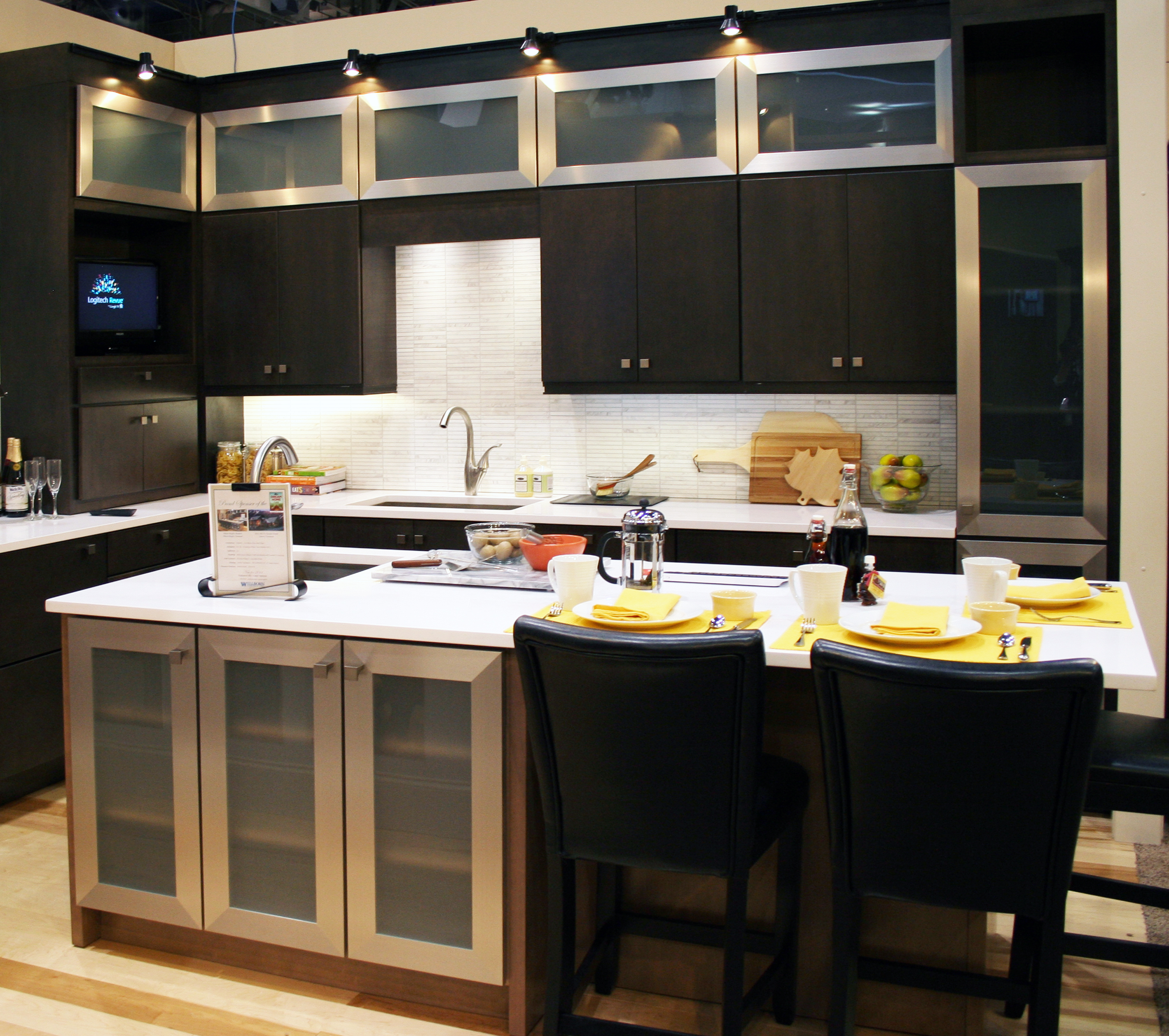

A substantial extra-wide aluminum frame designed for larger cabinet-door applications with compatible inserts and concealed hardware.
Design Guidelines
Dimensions
- Width range 5.5"–96"
- Height range 5.5"–96"
- Max square footage 24 sq ft
- Extrusion size 20.5 D × 45 H mm
- Visible edge 1.5mm
Compatibility & insert
- Insert restrictions 4mm (.156") with flat edge polish; opaque inserts only (BPG & mirror)
- Insert installation method Permanently adhered
- Hinge Standard 35mm Euro hinges
- Handle hole Yes – locations must be specified at time of order
- Decorative hardware Flush mount finger pull, surface mount finger pull
- Special note Insert is permanently adhered to the profile; door cannot be disassembled
Finish Options
Click a finish to preview it. Order a physical sample to see the true color before specifying.
Natural Aluminum
Natural silver-toned aluminum finish with a clean, contemporary appearance.
Brushed Stainless
Aluminum finish with the refined appearance of brushed stainless steel.
Black
Solid black aluminum finish for a clean and modern appearance.
Onyx - Black Matte
Deep black finish with a smooth matte appearance.
Bronze Matte
Warm bronze finish with a subtle matte surface.
Luxe Bronze
Rich bronze finish with an elevated metallic appearance.
Graphite
Dark graphite finish with a refined metallic appearance.
Modern Brass
A warm, sophisticated brass finish with a refined metallic sheen that adds modern elegance to any space.
Gold
Warm gold finish intended for decorative applications.
Arctic Silver
Light silver finish with a cool metallic appearance.
Insert Options
AF007
accepts 4mm (.156") inserts with a seamed edge. All options below are compatible. Click an insert to view all.
Door Designer
Select your finish, insert, and dimensions. Save your configuration to a shareable link or PDF, perfect for sending to customers or your rep.
What is the visible frame width of AF007?
AF007 features a 70mm (2 3/4") visible aluminum frame with no glass overlay.
Is AF007 compatible with AVENTOS lift systems?
Yes. AF007 is particularly well suited for AVENTOS HF applications because its wide frame conceals hinge plates behind transparent glass inserts.
What is the minimum and maximum size for AF007?
AF007 requires a minimum width and height of 6.75" and supports dimensions up to 96", with a maximum area of 24 square feet.
Can handle holes be drilled through the glass on AF007?
No. Handle holes must be drilled through the aluminum frame rather than the glass insert.
What decorative hardware is compatible with AF007?
AF007 supports flush-mounted finger pulls, surface-mounted finger pulls, and recessed pulls.
