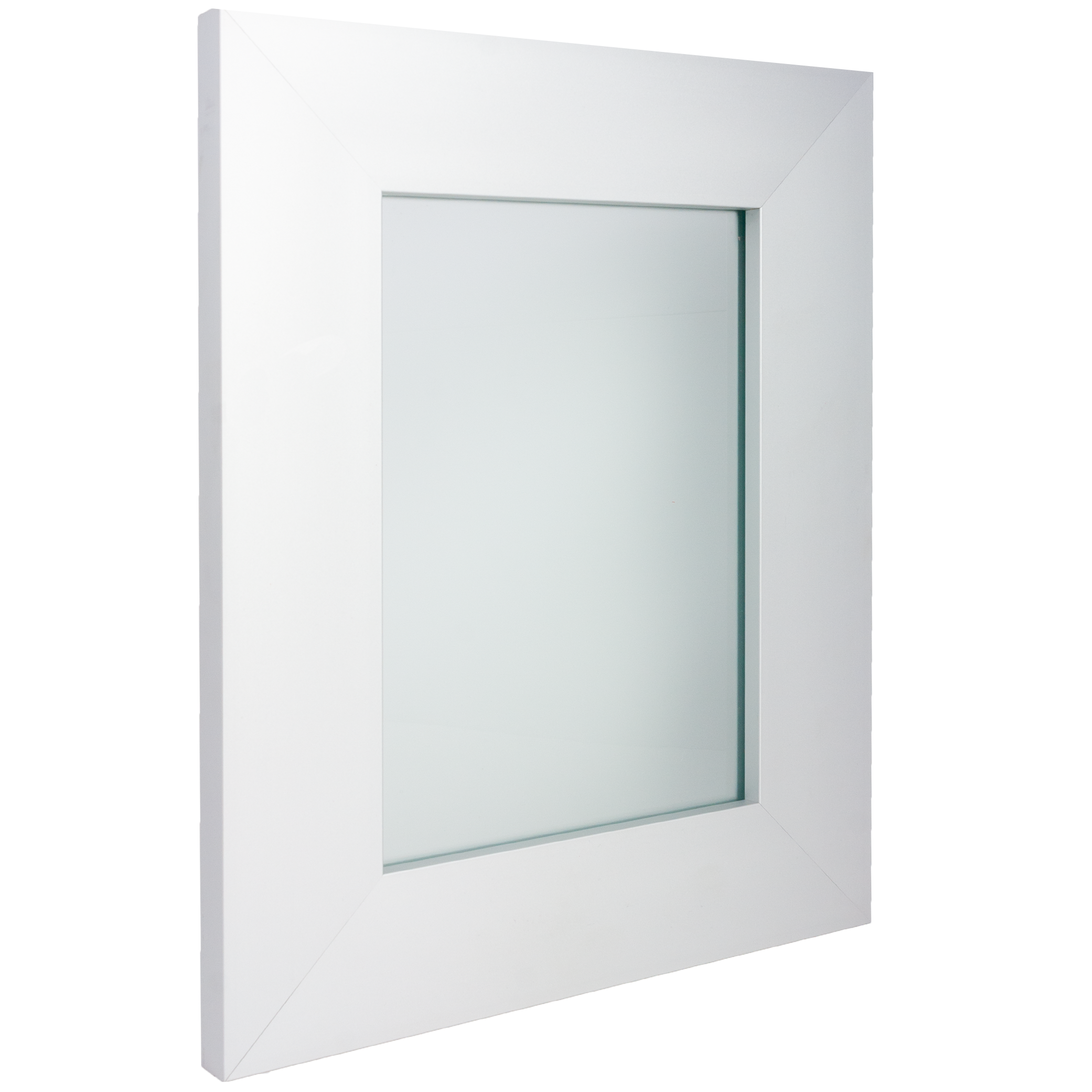

AF009

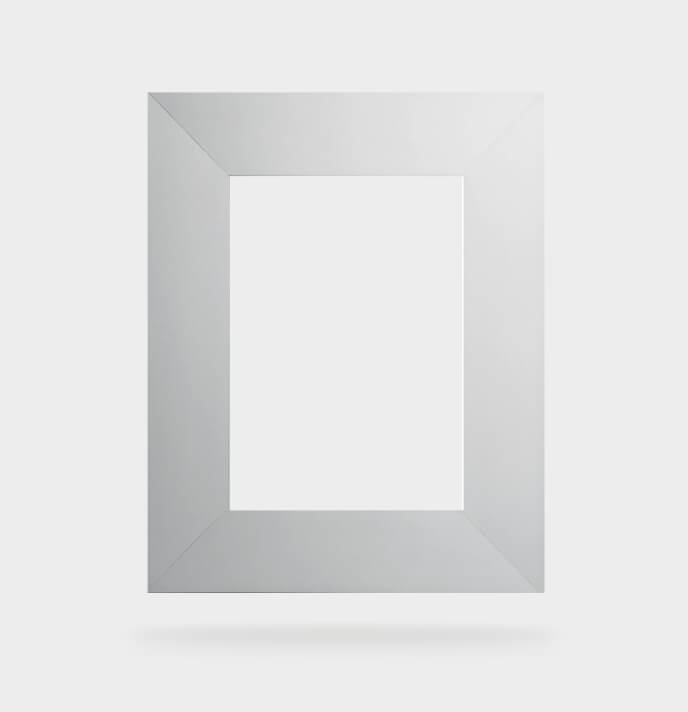

A substantial 63.5mm profile designed specifically to accommodate 6mm glass inserts for larger-scale applications.
Wide aluminum profile designed for heavier 6mm insert materials. Available in multiple anodized and coated finishes with compatible insert and hardware options.
Design Guidelines
Dimensions
- Width range 6.25"–96"
- Height range 6.25"–96"
- Max square footage 32 sq ft

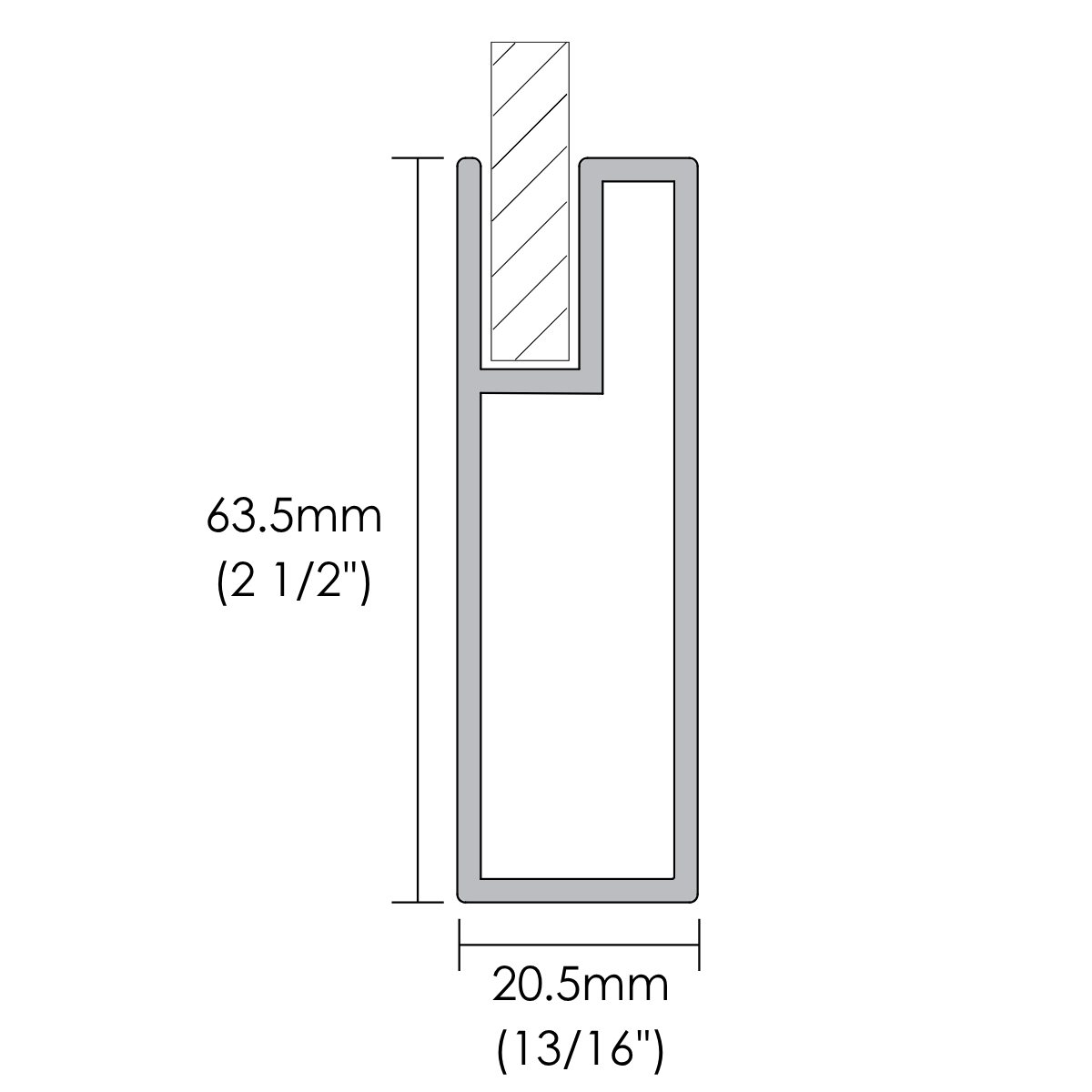

- Extrusion size 20.5 D × 63.5 H mm
- Visible edge 63.5mm
Compatibility & insert
- Insert restrictions 6mm (.236") with seamed edge
- Insert installation method Assembled with gasket
- Hinge Standard 35mm Euro hinges
- Handle hole Yes – drill through frame only
- Decorative hardware Flush mount finger pull, surface mount finger pull, recessed pull
Finish Options
Click a finish to preview it. Order a physical sample to see the true color before specifying.

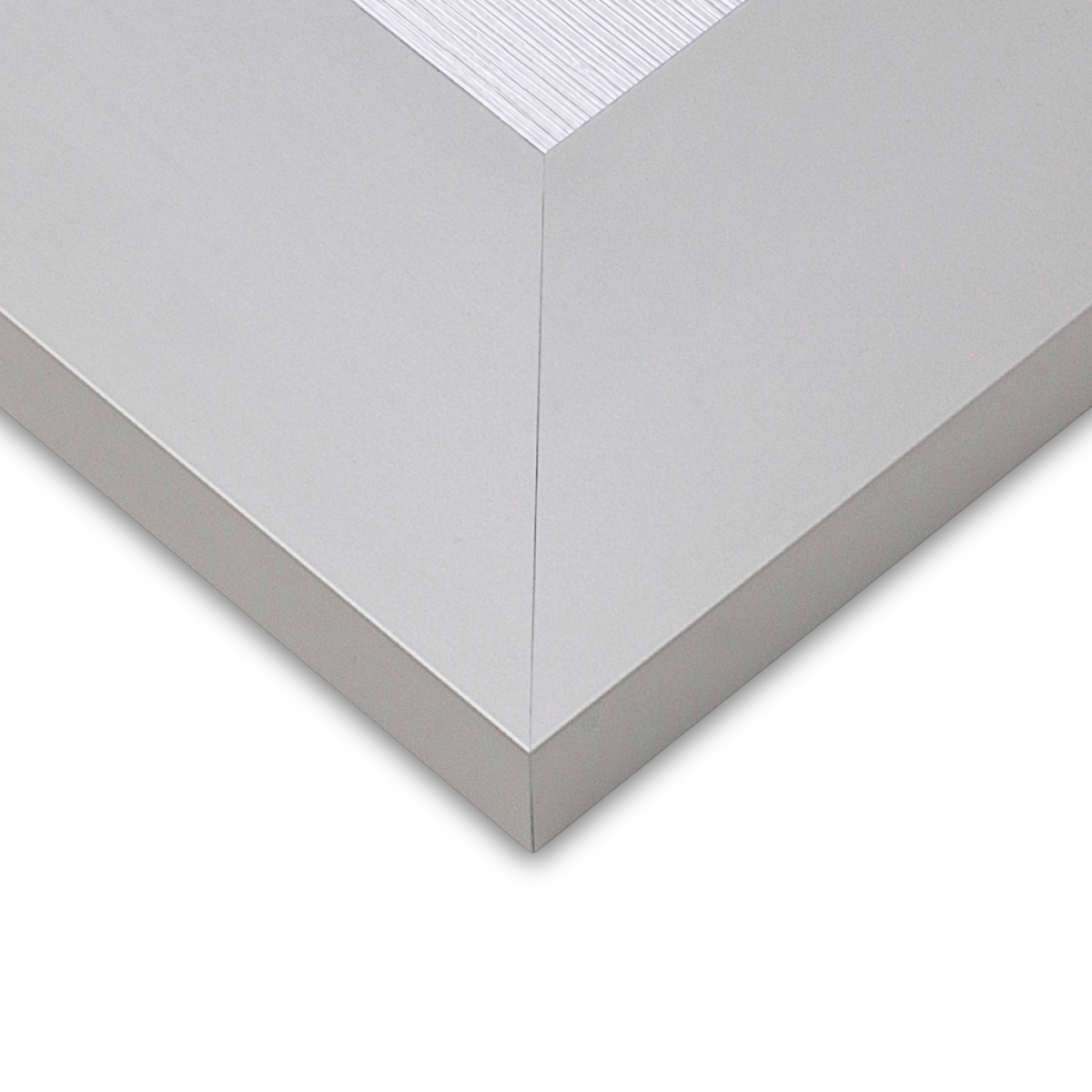

Natural Aluminum
Natural silver-toned aluminum finish with a clean, contemporary appearance.
Brushed Stainless
Aluminum finish with the refined appearance of brushed stainless steel.
Black
Solid black aluminum finish for a clean and modern appearance.
Onyx - Black Matte
Deep black finish with a smooth matte appearance.
Bronze Matte
Warm bronze finish with a subtle matte surface.
Luxe Bronze
Rich bronze finish with an elevated metallic appearance.
Graphite
Dark graphite finish with a refined metallic appearance.
Modern Brass
A warm, sophisticated brass finish with a refined metallic sheen that adds modern elegance to any space.
Gold
Warm gold finish intended for decorative applications.
Arctic Silver
Light silver finish with a cool metallic appearance.
Insert Options
AF009
accepts 6mm (.236") inserts. 4mm (.156") inserts can be used with a special gasket. All options below are compatible. Click an insert to view all.
Door Designer
Select your finish, insert, and dimensions. Save your configuration to a shareable link or PDF, perfect for sending to customers or your rep.
What glass thickness is compatible with AF009?
AF009 is designed for 6mm glass inserts. The technical manual also allows 4mm inserts when a special gasket is used.
Can AF009 accommodate backpainted glass?
Yes. AF009 accommodates compatible 6mm backpainted glass options, including Gloss, Matte, and Writable Matte finishes.
What is the maximum size available for AF009?
AF009 supports widths and heights from 6.25" to 96", with a maximum area of 32 square feet.
Can handle holes be drilled through the glass on AF009?
No. Handle holes must be drilled through the aluminum frame rather than the glass insert.
Which hinges are compatible with AF009?
AF009 uses standard 35mm European screw-on hinges, including compatible Blum and Salice models.
