AF010
Full-overlay profile designed for opaque backpainted glass and mirror inserts.

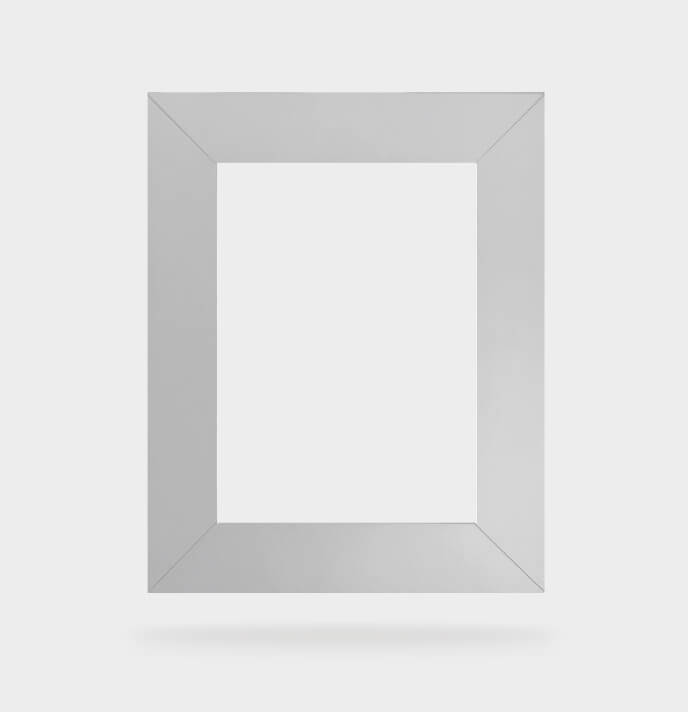

Wide frame profile designed for full overlay applications, providing complete cabinet coverage with a clean, seamless look.
Design Guidelines
Dimensions
- Width range 5.5"–96"
- Height range 5.5"–96"
- Max square footage 24 sq ft

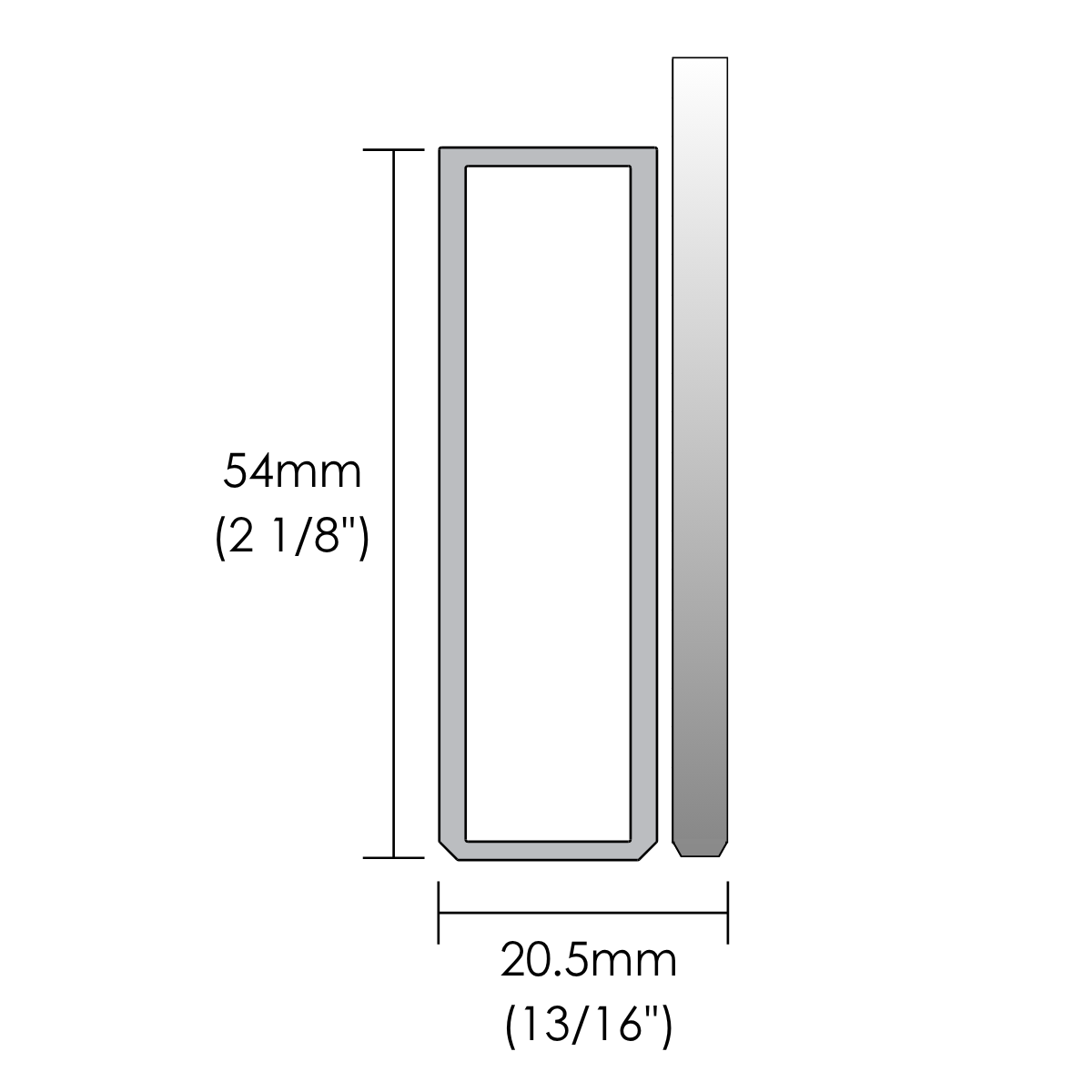

- Extrusion size 20.5 D × 54 H mm
- Visible edge None
Compatibility & insert
- Insert restrictions 4mm (.156") with flat edge polish; opaque or °elusion inserts only
- Insert installation method Permanently adhered
- Hinge Standard 35mm Euro hinges
- Handle hole Yes – locations must be specified at time of order
- Decorative hardware Surface mount finger pull
- Special note Insert is permanently adhered to the profile; door cannot be disassembled
Finish Options
Click a finish to preview it. Order a physical sample to see the true color before specifying.
Natural Aluminum
Natural silver-toned aluminum finish with a clean, contemporary appearance.
Brushed Stainless
Aluminum finish with the refined appearance of brushed stainless steel.
Black
Solid black aluminum finish for a clean and modern appearance.
Onyx - Black Matte
Deep black finish with a smooth matte appearance.
Bronze Matte
Warm bronze finish with a subtle matte surface.
Luxe Bronze
Rich bronze finish with an elevated metallic appearance.
Graphite
Dark graphite finish with a refined metallic appearance.
Modern Brass
A warm, sophisticated brass finish with a refined metallic sheen that adds modern elegance to any space.
Gold
Warm gold finish intended for decorative applications.
Arctic Silver
Light silver finish with a cool metallic appearance.
Insert Options
AF010
accepts 4mm (.156") inserts with a flat polished edge. Only opaque backpainted glass and mirror inserts are compatible. Click an insert to view all.
Hardware Options
Door Designer
Select your finish, insert, and dimensions. Save your configuration to a shareable link or PDF, perfect for sending to customers or your rep.
Inspiration Gallery
Real installations by designers and cabinet shops across North America.
What types of inserts are compatible with AF010?
AF010 accommodates opaque 4mm backpainted glass and mirror inserts with a flat polished edge.
Does AF010 have a visible aluminum frame?
No. AF010 features a full glass overlay that conceals the aluminum frame, creating a seamless appearance with no visible metal edge from the front.
Can the glass insert be removed or replaced on AF010?
No. The insert is permanently adhered to the aluminum frame, and the door cannot be disassembled.
Can AF010 accommodate a flush-mounted finger pull?
No. Flush-mounted finger pulls are not available for AF010. Surface-mounted finger pulls are an available option.
What is the maximum size available for AF010?
AF010 supports widths and heights from 5.5" to 96", with a maximum area of 24 square feet.
