AF012

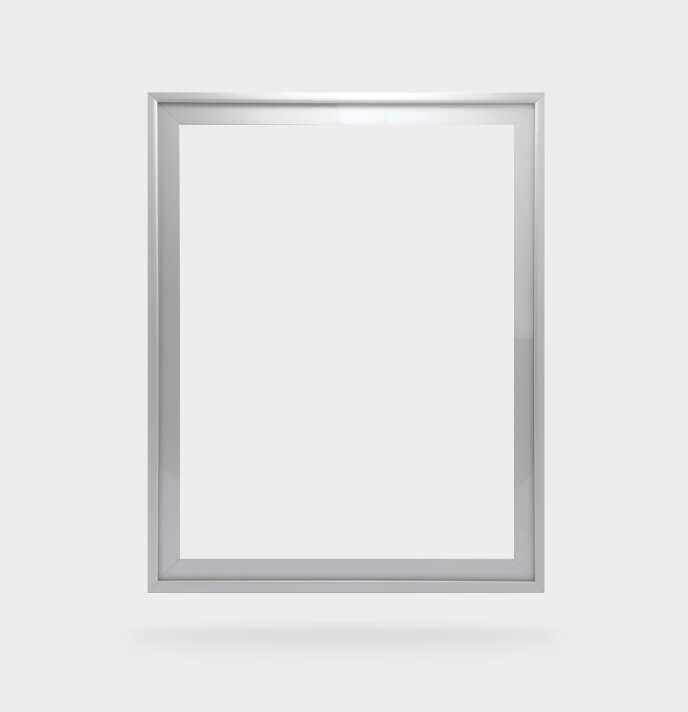

A sleek glass-overlay profile with a 9.5mm visible edge and integrated Salice AIR hinge compatibility for a clean, contemporary appearance.
Aluminum profiles engineered specifically for Salice AIR hinges, integrating the hinge system into the frame for a streamlined appearance.
Design Guidelines
Dimensions
- Width range 5.5"–24"
- Height range 5.5"–106.25"
- Max square footage 17.7 sq ft

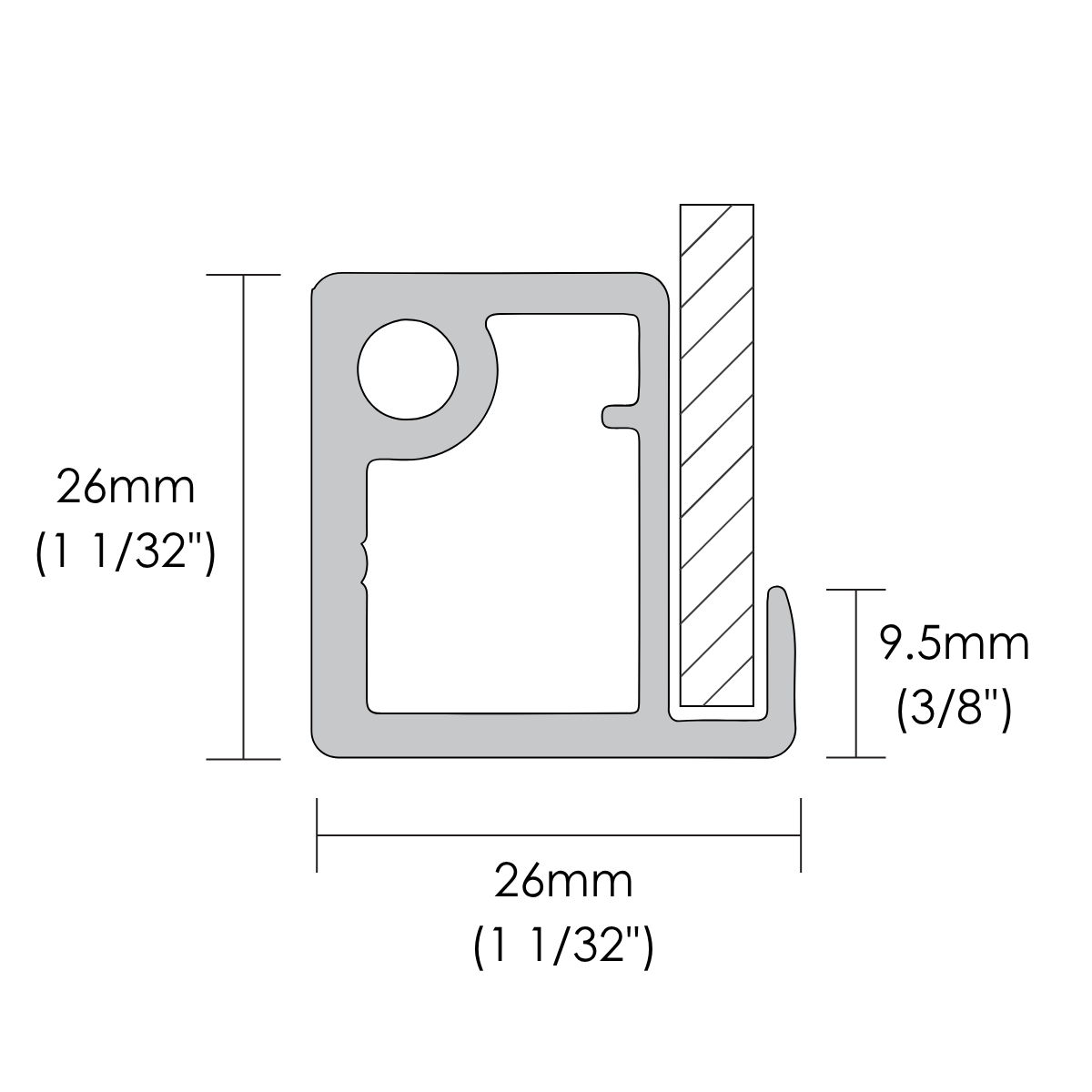

- Extrusion size 26 D × 26 H mm
- Visible edge 9.5mm
Compatibility & insert
- Insert restrictions 4mm (.156") with seamed edge
- Insert installation method Assembled with gasket
- Hinge Salice AIR hinges only
- Handle hole Yes – locations must be specified at time of order
- Decorative hardware Flush mount finger pull, surface mount finger pull
- Transparent inserts Ideal
- Drawer fronts Not recommended
- Lift-up door applications Not recommended
Finish Options
Click a finish to preview it. Order a physical sample to see the true color before specifying.
Natural Aluminum
Natural silver-toned aluminum finish with a clean, contemporary appearance.
Brushed Stainless
Aluminum finish with the refined appearance of brushed stainless steel.
Black
Solid black aluminum finish for a clean and modern appearance.
Onyx - Black Matte
Deep black finish with a smooth matte appearance.
Bronze Matte
Warm bronze finish with a subtle matte surface.
Luxe Bronze
Rich bronze finish with an elevated metallic appearance.
Graphite
Dark graphite finish with a refined metallic appearance.
Modern Brass
A warm, sophisticated brass finish with a refined metallic sheen that adds modern elegance to any space.
Gold
Warm gold finish intended for decorative applications.
Arctic Silver
Light silver finish with a cool metallic appearance.
Insert Options
AF012
accepts 4mm (.156") inserts. All options below are compatible. Click an insert to view all.
Hardware Options
Door Designer
Select your finish, insert, and dimensions. Save your configuration to a shareable link or PDF, perfect for sending to customers or your rep.

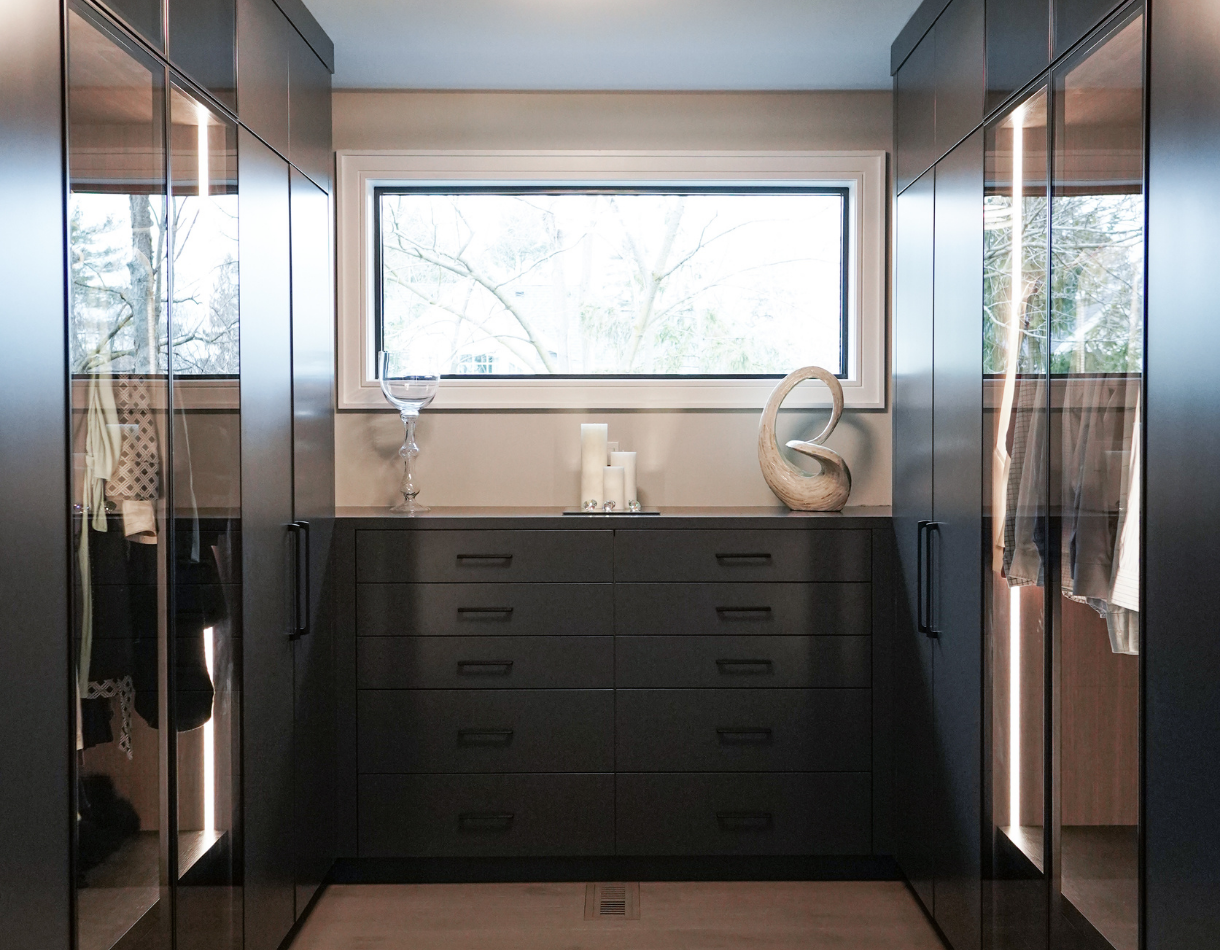

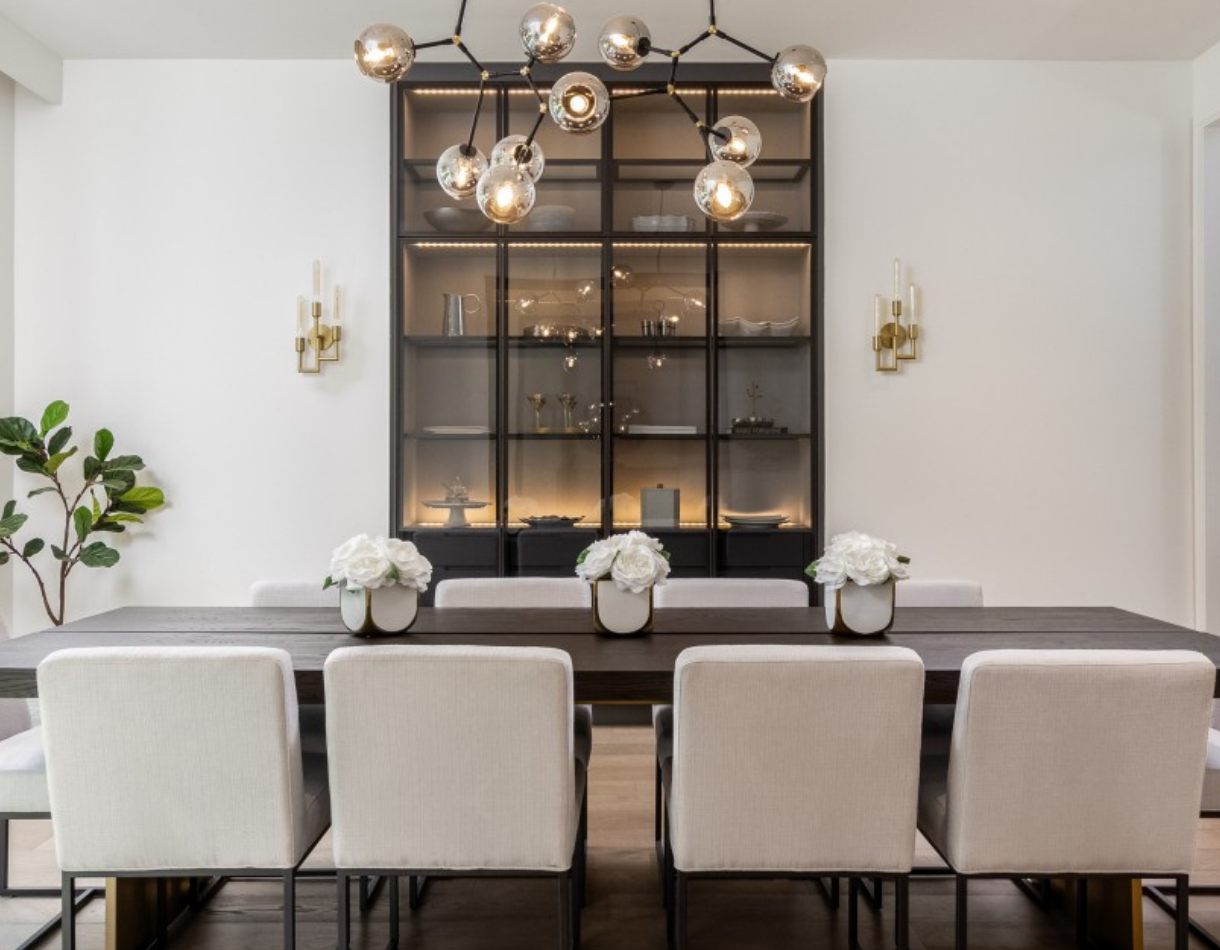

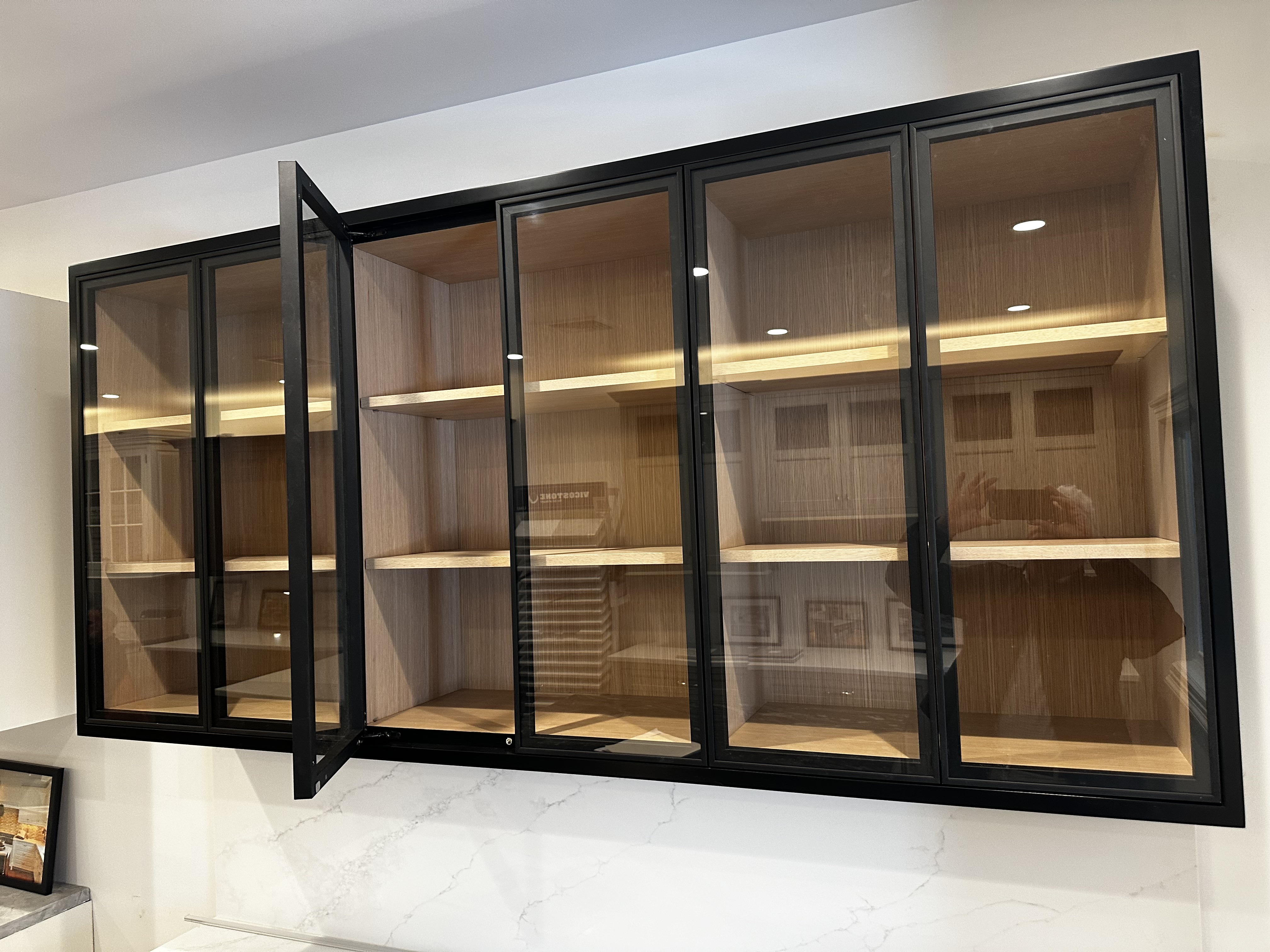

Inspiration Gallery
Real installations by designers and cabinet shops across North America.
What hinge system is compatible with AF012?
AF012 is designed exclusively for Salice AIR integrated hinges. Standard 35mm European hinges are not compatible.
Can a handle hole be drilled through the glass on AF012?
Yes. Handle holes can be drilled through the glass insert, but their locations must be specified at the time of order.
Can AF012 be used with transparent glass inserts?
Yes. AF012 is particularly well suited for transparent 4mm glass inserts because of its integrated hinge design.
Can AF012 be used for drawer fronts or lift-up doors?
No. AF012 is not recommended for drawer fronts or lift-up door applications.
What is the maximum size available for AF012?
AF012 supports widths from 5.5" to 24" and heights from 5.5" to 106.25", with a maximum area of 17.7 square feet.
