AF013

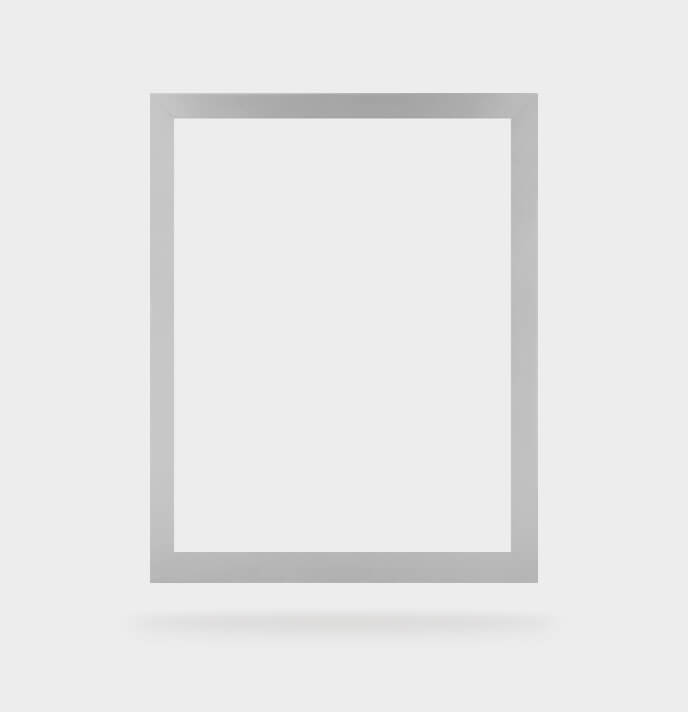

A streamlined 26mm profile with no glass overlay, designed around the Salice AIR hinge system for a refined, integrated look.
.png)
Aluminum profiles engineered specifically for Salice AIR hinges, integrating the hinge system into the frame for a streamlined appearance.
Design Guidelines
Dimensions
- Width range 5.5"–24"
- Height range 5.5"–106.25"
- Max square footage 17.7 sq ft

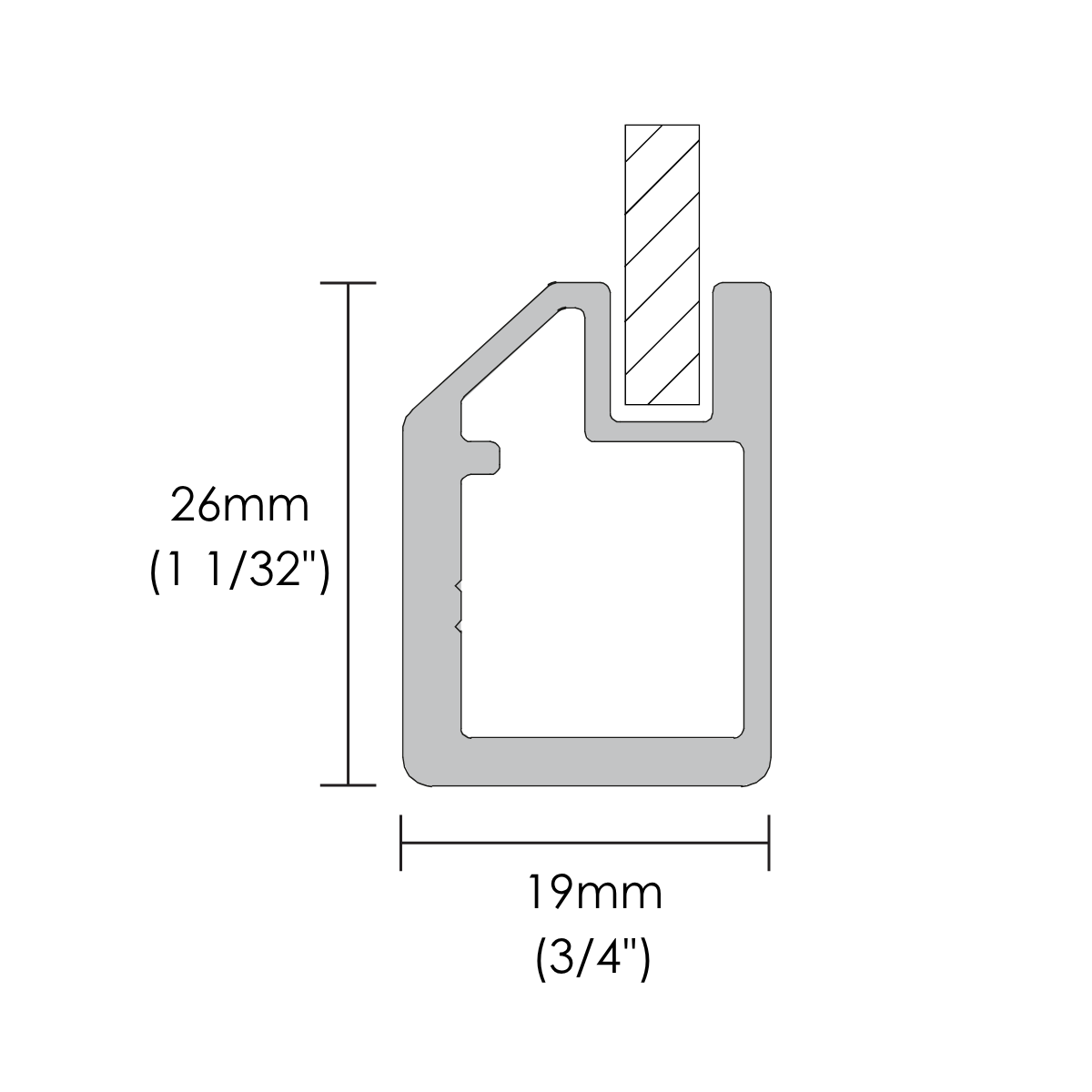

- Extrusion size 19 D × 26 H mm
- Visible edge 26mm
Compatibility & insert
- Insert restrictions 4mm (.156") with seamed edge
- Insert installation method Assembled with gasket
- Hinge Salice AIR hinges only
- Handle hole Yes – locations must be specified at time of order
- Decorative hardware Flush mount finger pull, surface mount finger pull
- Transparent inserts Ideal
- Drawer fronts Not recommended
- Lift-up door applications Not recommended
Finish Options
Click a finish to preview it. Order a physical sample to see the true color before specifying.

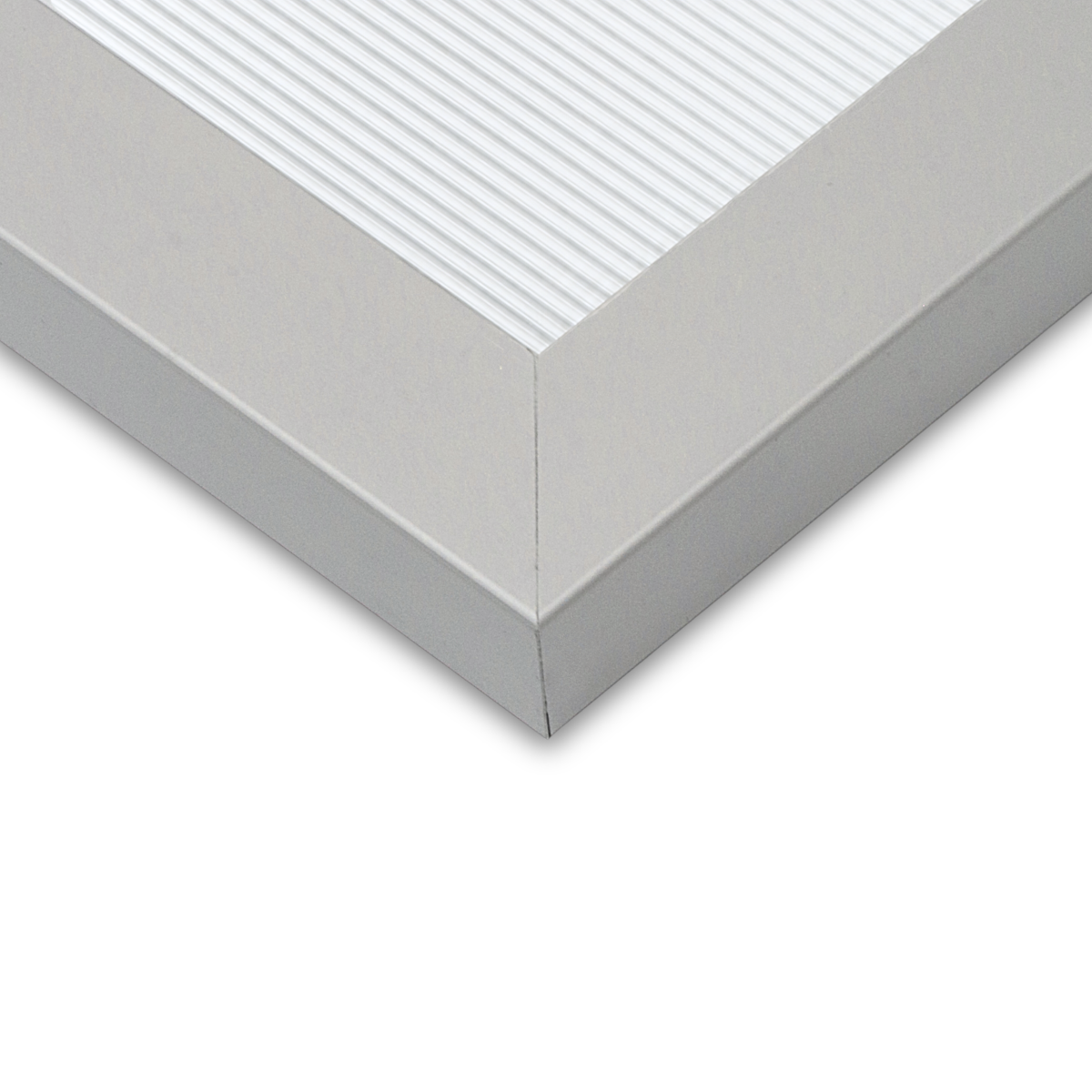

Natural Aluminum
Natural silver-toned aluminum finish with a clean, contemporary appearance.
Brushed Stainless
Aluminum finish with the refined appearance of brushed stainless steel.
Black
Solid black aluminum finish for a clean and modern appearance.
Onyx - Black Matte
Deep black finish with a smooth matte appearance.
Bronze Matte
Warm bronze finish with a subtle matte surface.
Luxe Bronze
Rich bronze finish with an elevated metallic appearance.
Graphite
Dark graphite finish with a refined metallic appearance.
Modern Brass
A warm, sophisticated brass finish with a refined metallic sheen that adds modern elegance to any space.
Gold
Warm gold finish intended for decorative applications.
Arctic Silver
Light silver finish with a cool metallic appearance.
Insert Options
AF013
accepts 4mm (.156") inserts. All options below are compatible. Click an insert to view all.

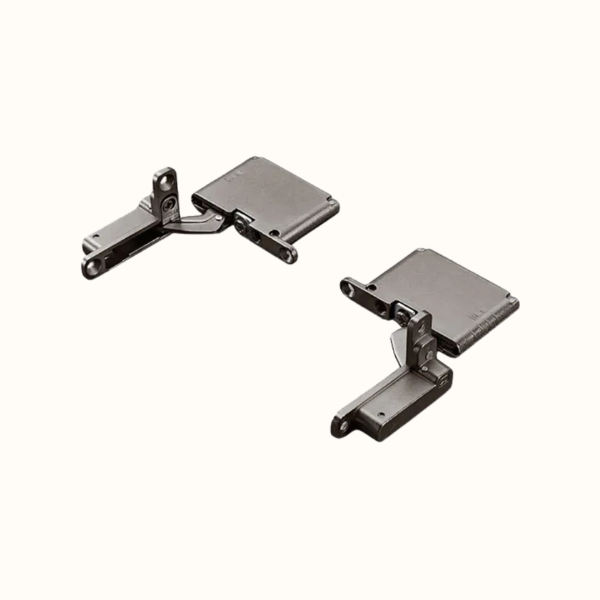

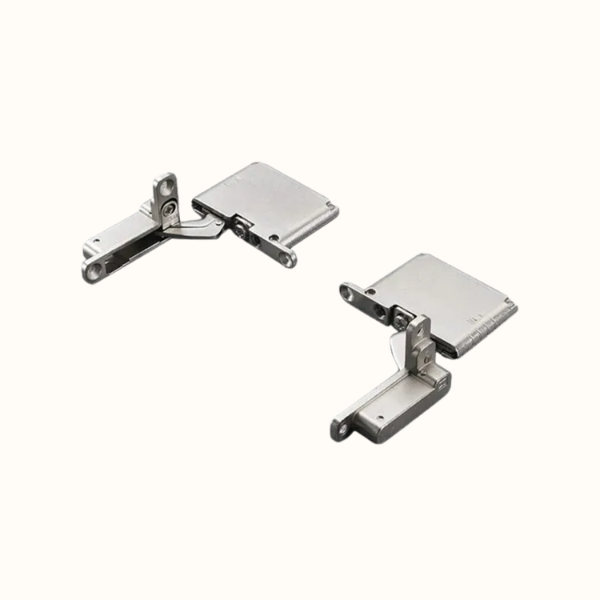

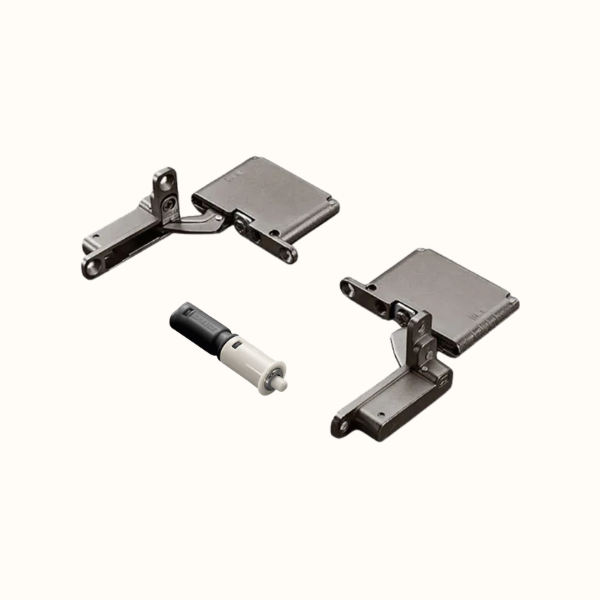

Hardware Options
Door Designer
Select your finish, insert, and dimensions. Save your configuration to a shareable link or PDF, perfect for sending to customers or your rep.
What hinge system is required for AF013?
AF013 is designed exclusively for Salice AIR integrated hinges. Standard 35mm European hinges are not compatible.
What is the visible aluminum frame width of AF013?
AF013 features a 26mm visible aluminum frame with no glass overlay.
What glass inserts are compatible with AF013?
AF013 accommodates compatible 4mm glass inserts with a seamed edge and is particularly well suited for transparent glass applications.
Can AF013 be used for drawer fronts or lift-up doors?
No. AF013 is not recommended for drawer fronts or lift-up door applications.
What is the maximum size available for AF013?
AF013 supports widths from 5.5" to 24" and heights from 5.5" to 106.25", with a maximum area of 17.7 square feet.
