AF014
A minimal glass-overlay profile with a slim 4mm visible edge, creating a refined transition between the aluminum frame and glass insert.

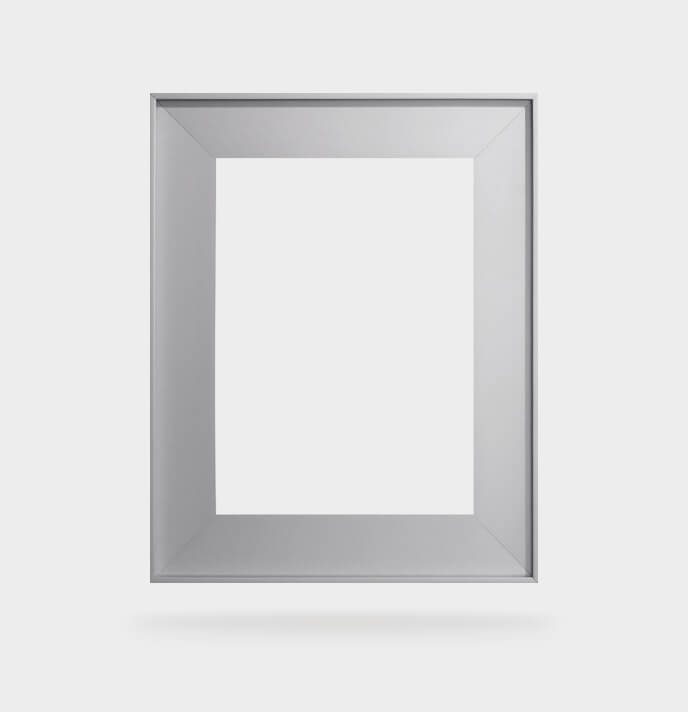

A refined wide aluminum frame designed for modern and transitional cabinetry, available in multiple anodized and powder-coated finishes with compatible insert options.
Design Guidelines
Dimensions
- Width range 5.5"–96"
- Height range 5.5"–96"
- Max square footage 24 sq ft

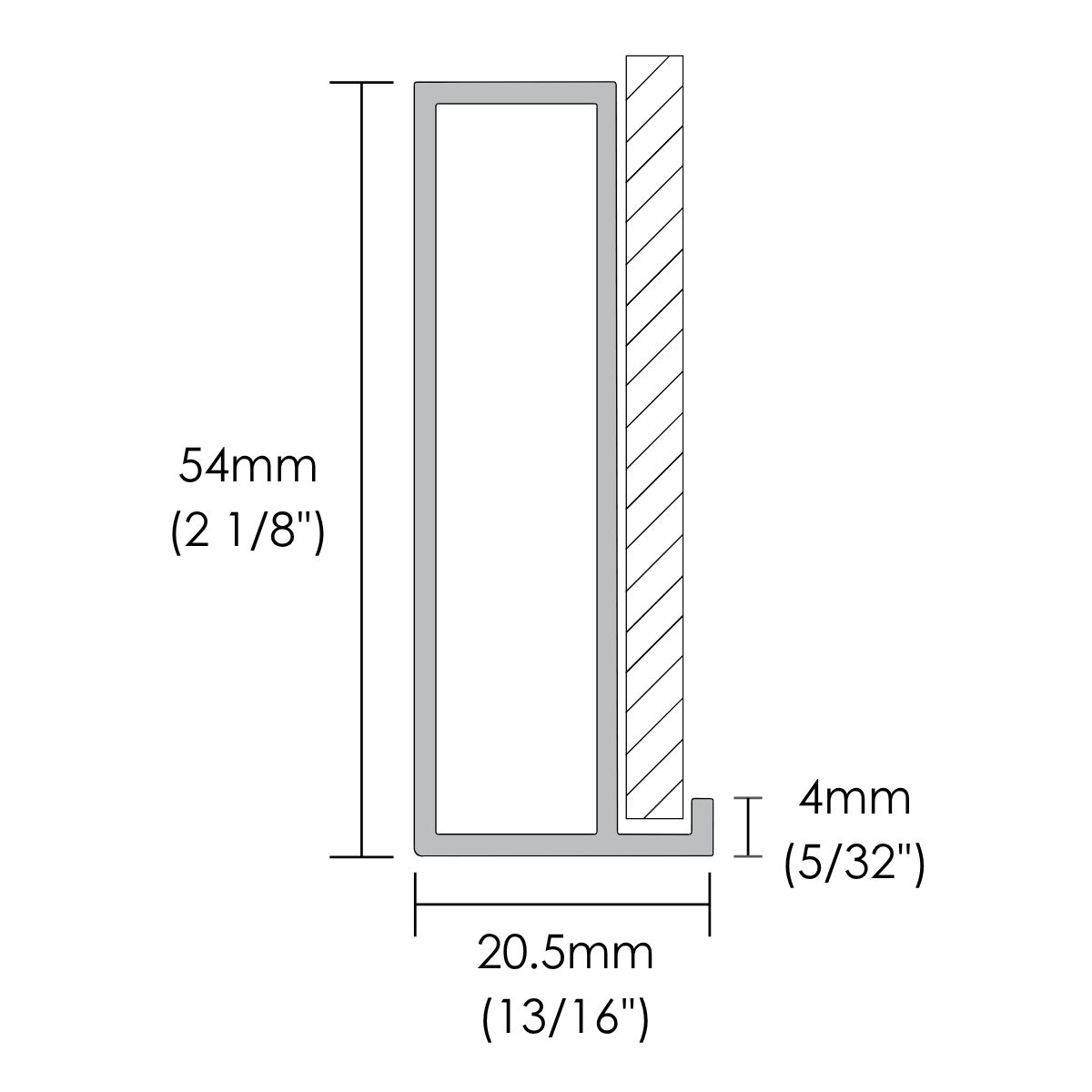

- Extrusion size 20.5 D × 54 H mm
- Visible edge 4mm
Compatibility & insert
- Insert restrictions 4mm (.156") with flat edge polish
- Insert installation method Assembled with gasket
- Hinge Standard 35mm Euro hinges
- Handle hole Yes – locations must be specified at time of order
- Decorative hardware Surface mount finger pull
Finish Options
Click a finish to preview it. Order a physical sample to see the true color before specifying.
Natural Aluminum
Natural silver-toned aluminum finish with a clean, contemporary appearance.
Brushed Stainless
Aluminum finish with the refined appearance of brushed stainless steel.
Black
Solid black aluminum finish for a clean and modern appearance.
Onyx - Black Matte
Deep black finish with a smooth matte appearance.
Bronze Matte
Warm bronze finish with a subtle matte surface.
Luxe Bronze
Rich bronze finish with an elevated metallic appearance.
Graphite
Dark graphite finish with a refined metallic appearance.
Modern Brass
A warm, sophisticated brass finish with a refined metallic sheen that adds modern elegance to any space.
Gold
Warm gold finish intended for decorative applications.
Arctic Silver
Light silver finish with a cool metallic appearance.

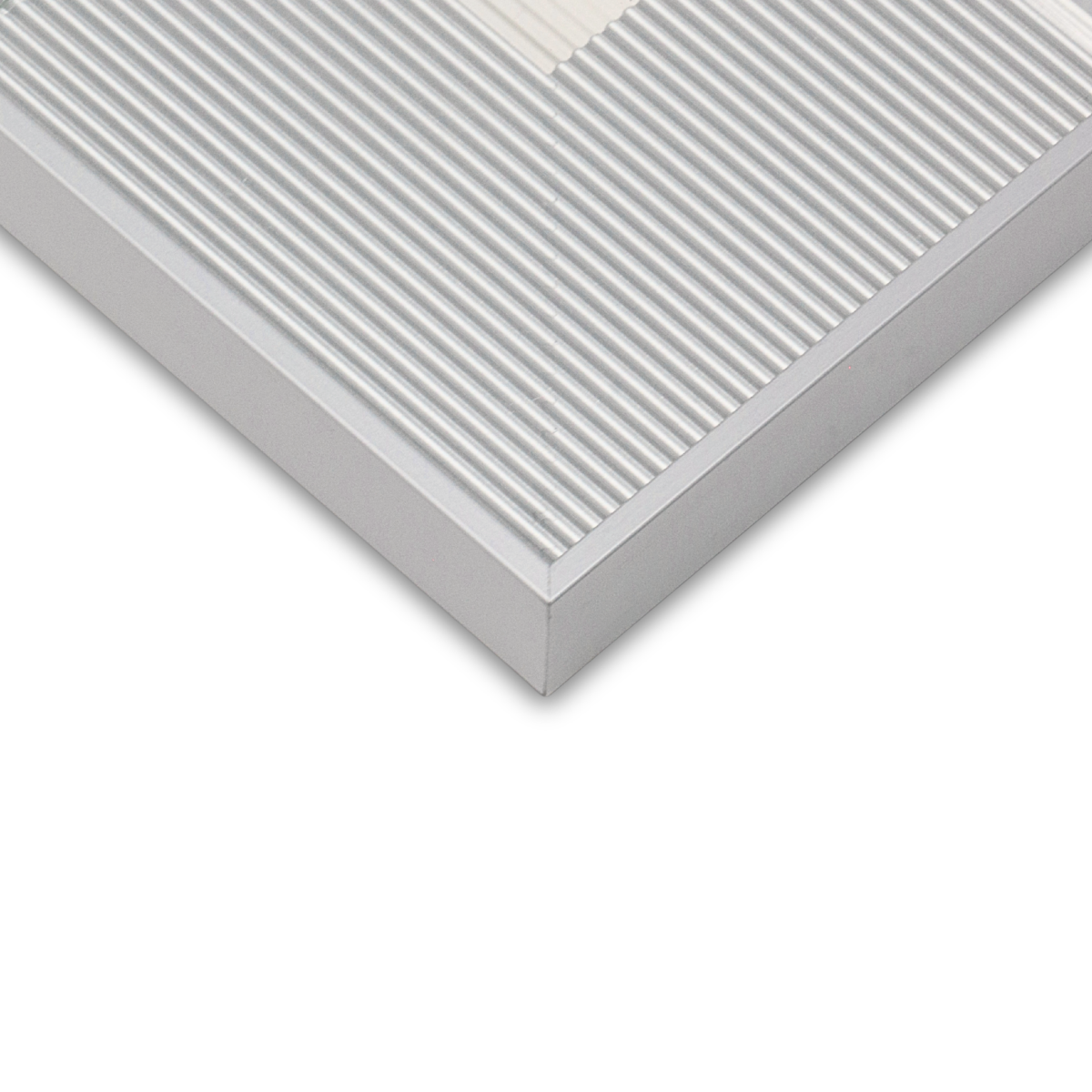

Insert Options
AF014
accepts 4mm (.156") inserts. All options below are compatible. Click an insert to view all.
Hardware Options
Door Designer
Select your finish, insert, and dimensions. Save your configuration to a shareable link or PDF, perfect for sending to customers or your rep.

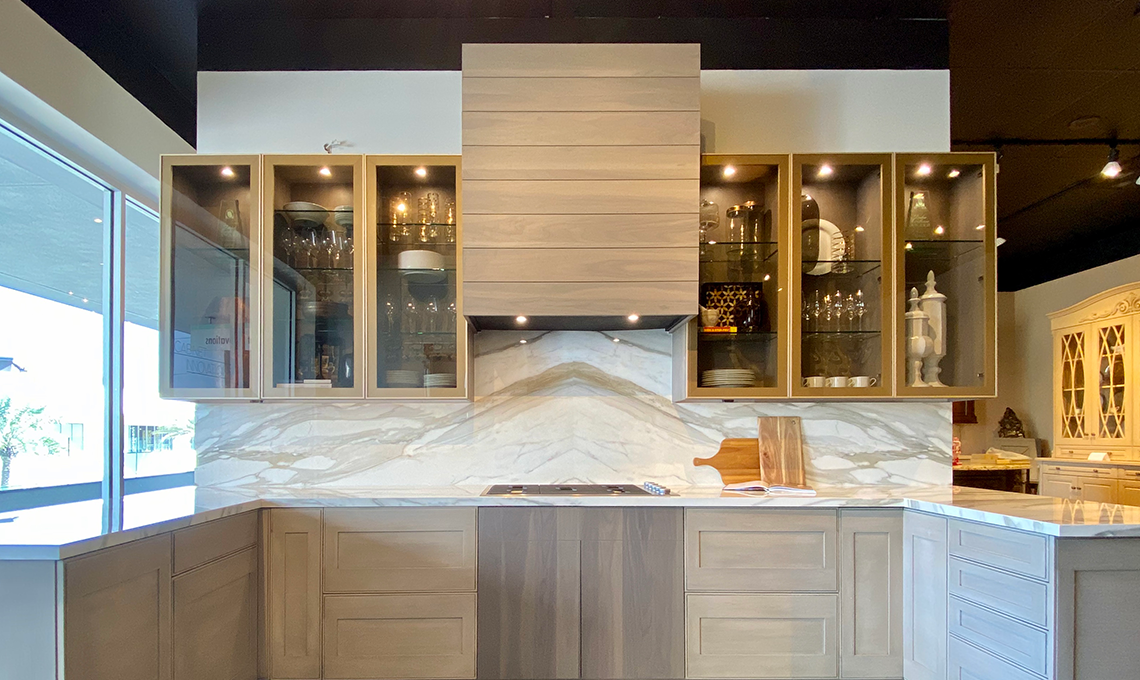

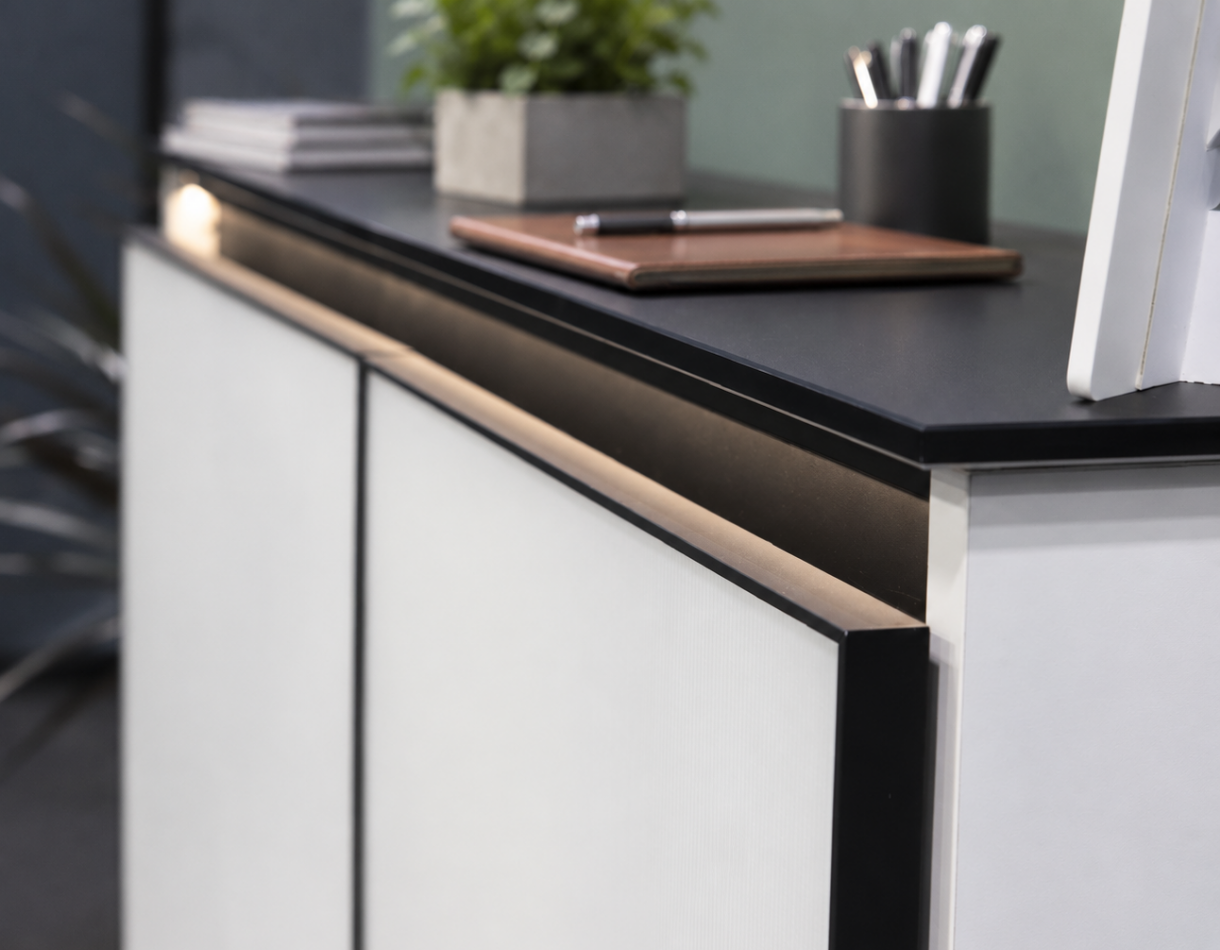

Inspiration Gallery
Real installations by designers and cabinet shops across North America.
What is the visible aluminum edge on AF014?
AF014 features a minimal 4mm visible aluminum edge with a glass overlay design.
What glass thickness is compatible with AF014?
AF014 accommodates 4mm glass inserts with a flat polished edge, assembled into the frame using a gasket.
Can AF014 accommodate a flush-mounted finger pull?
No. Flush-mounted finger pull fabrication is not available for AF014. Surface-mounted finger pulls are compatible.
Can handle holes be drilled through the glass on AF014?
Yes. Handle holes can be drilled through the glass, but their locations must be specified when ordering.
What is the maximum size available for AF014?
AF014 supports widths and heights from 5.5" to 96", with a maximum area of 24 square feet.
