AF015

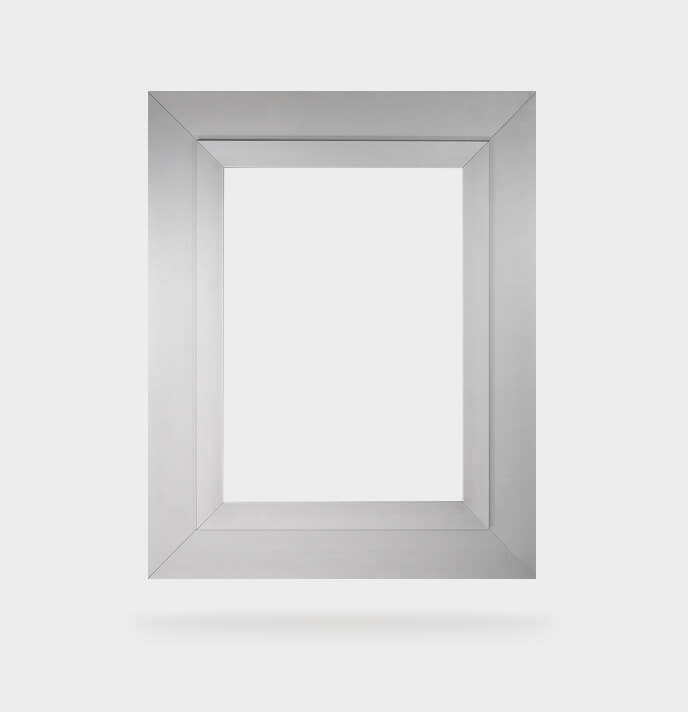

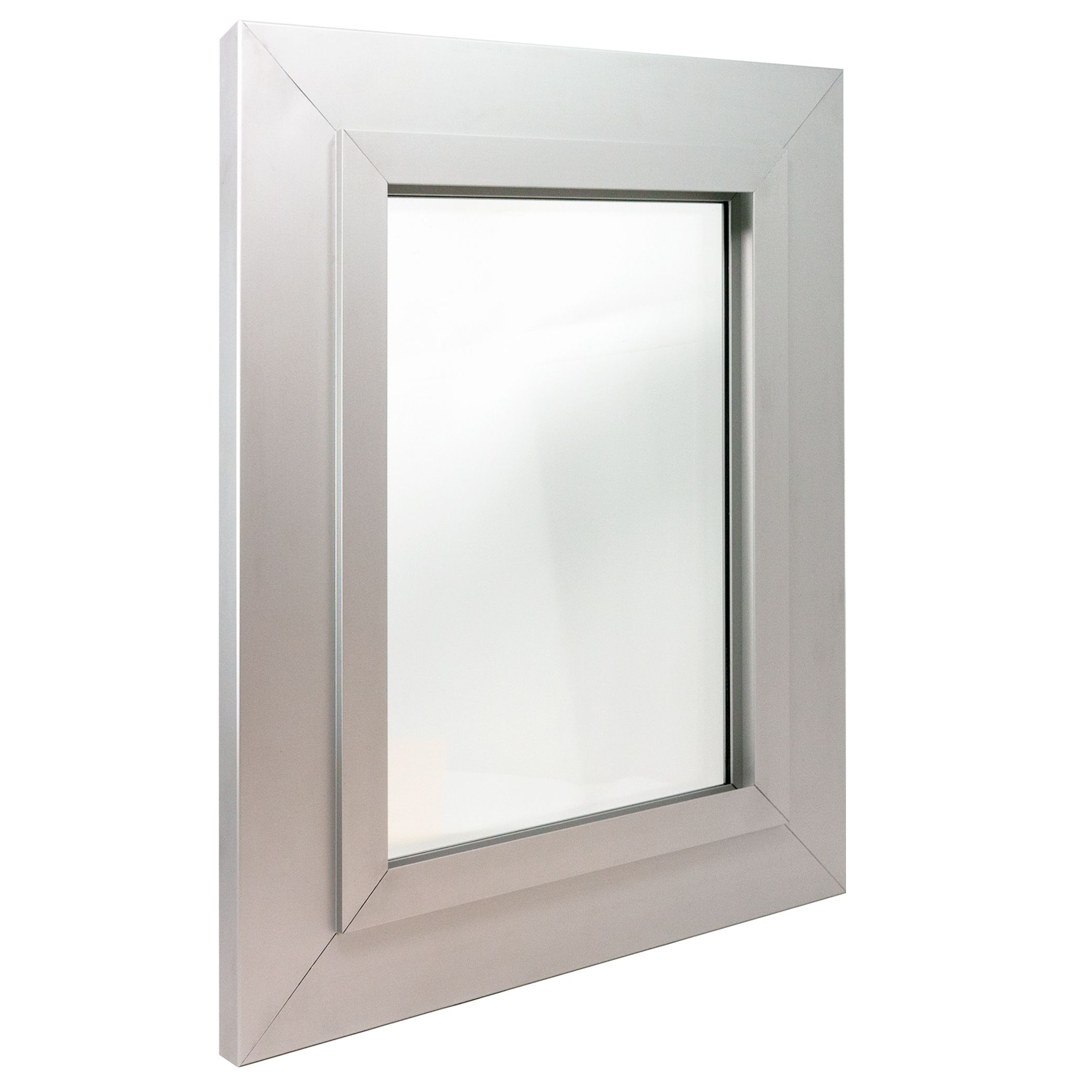

A substantial 60mm profile featuring an integrated finger pull for a clean, streamlined design without the need for separate decorative hardware.
Our most versatile profile family, offering a range of frame widths, glass-overlay styles, and hardware options for residential and commercial applications.
Design Guidelines
Dimensions
- Width range 5.5"–96"
- Height range 5.5"–96"
- Max square footage 24 sq ft

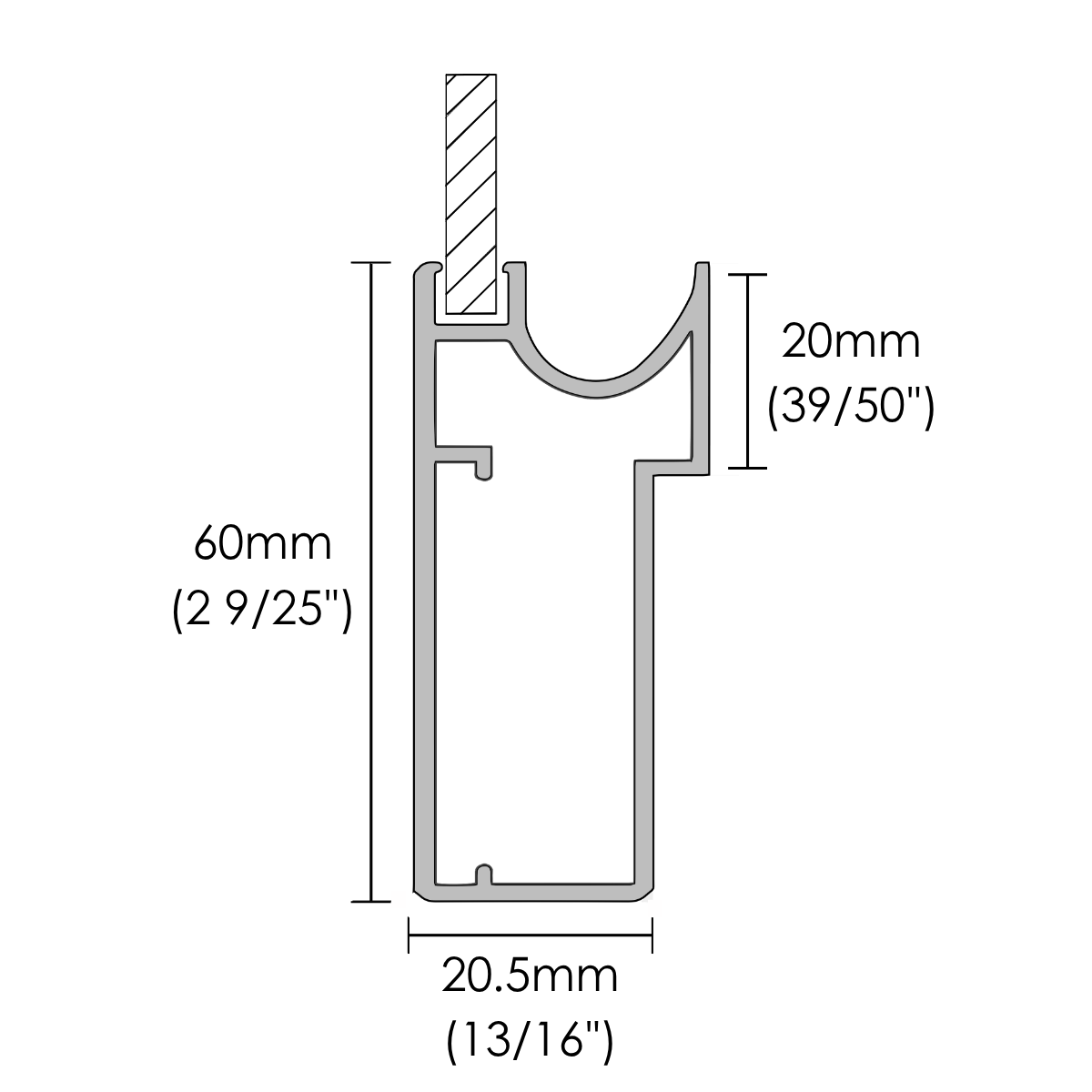

- Extrusion size 20.5 D × 60 H mm
- Visible edge 60mm
Compatibility & insert
- Insert restrictions 4mm (.156") with seamed edge
- Insert installation method Assembled with gasket
- Hinge Standard 35mm Euro hinges
- Handle hole Yes – drill through frame only
- Decorative hardware Integrated finger pull (part of the profile)
Finish Options
Click a finish to preview it. Order a physical sample to see the true color before specifying.
Natural Aluminum
Natural silver-toned aluminum finish with a clean, contemporary appearance.
Brushed Stainless
Aluminum finish with the refined appearance of brushed stainless steel.
Black
Solid black aluminum finish for a clean and modern appearance.
Onyx - Black Matte
Deep black finish with a smooth matte appearance.
Bronze Matte
Warm bronze finish with a subtle matte surface.
Luxe Bronze
Rich bronze finish with an elevated metallic appearance.
Graphite
Dark graphite finish with a refined metallic appearance.
Modern Brass
A warm, sophisticated brass finish with a refined metallic sheen that adds modern elegance to any space.
Gold
Warm gold finish intended for decorative applications.
Arctic Silver
Light silver finish with a cool metallic appearance.
Insert Options
AF015
accepts 4mm (.156") inserts. All options below are compatible. Click an insert to view all.
Hardware Options
Door Designer
Select your finish, insert, and dimensions. Save your configuration to a shareable link or PDF, perfect for sending to customers or your rep.
Inspiration Gallery

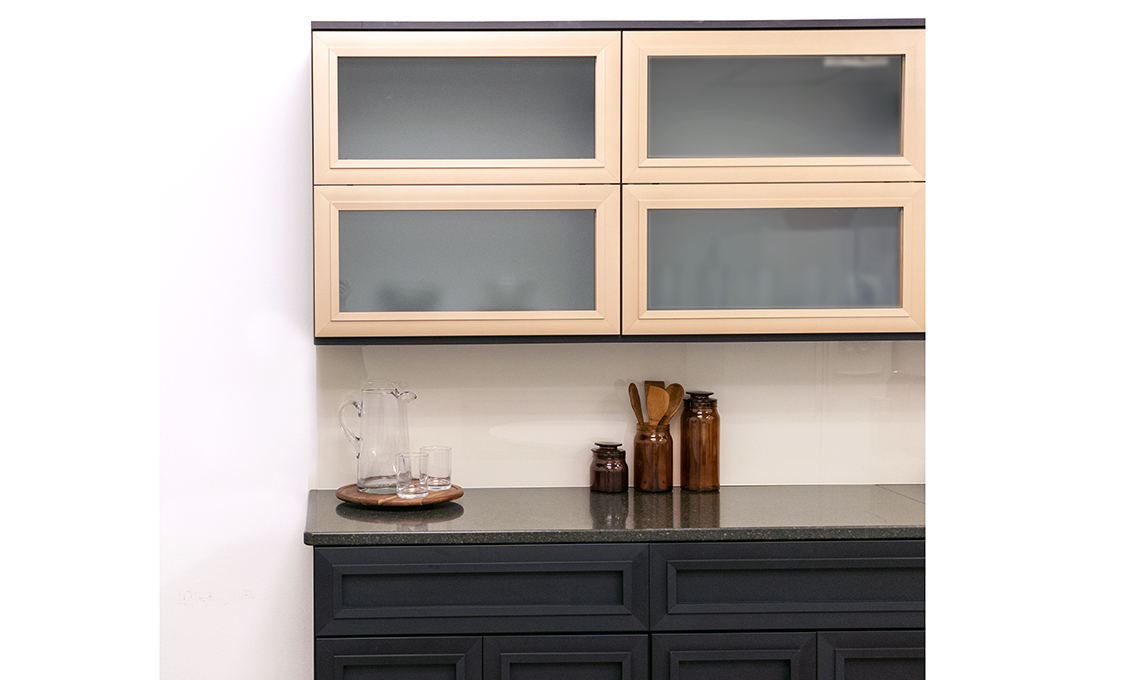

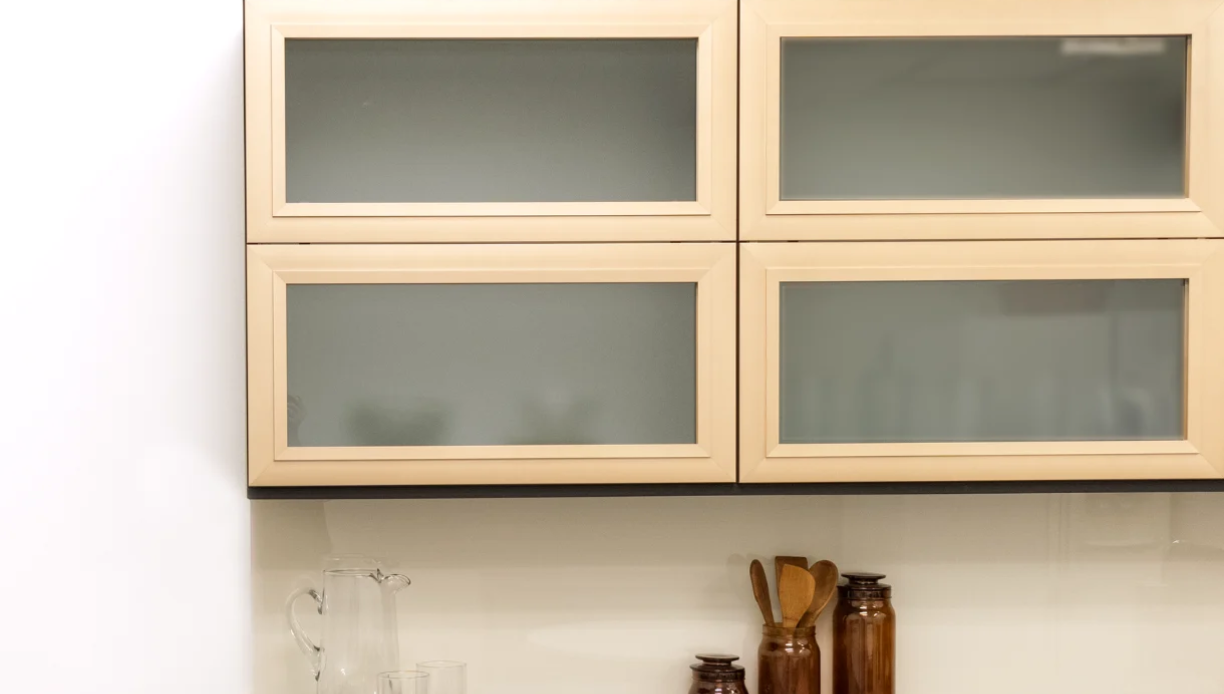

Real installations by designers and cabinet shops across North America.
What is the visible frame width of AF015?
AF015 features a 60mm visible aluminum frame with no glass overlay.
Does AF015 require a separate handle?
No. AF015 features an integrated finger pull built directly into the aluminum frame, eliminating the need for a separate decorative handle.
What glass thickness is compatible with AF015?
AF015 accommodates 4mm glass inserts with a seamed edge, secured using a gasket.
Which hinges are compatible with AF015?
AF015 uses standard 35mm European screw-on hinges, including compatible Blum and Salice models.
What is the maximum size available for AF015?
AF015 supports widths and heights from 5.5" to 96", with a maximum area of 24 square feet.
