AF016

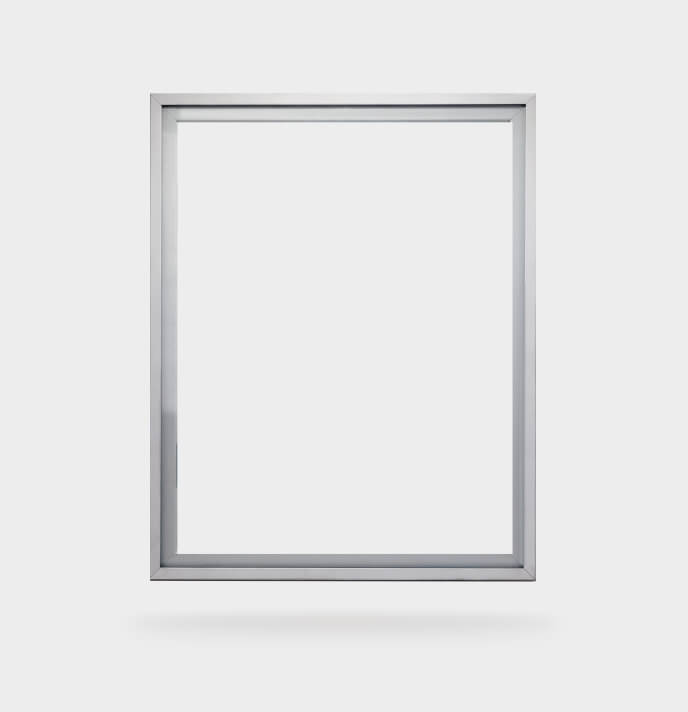

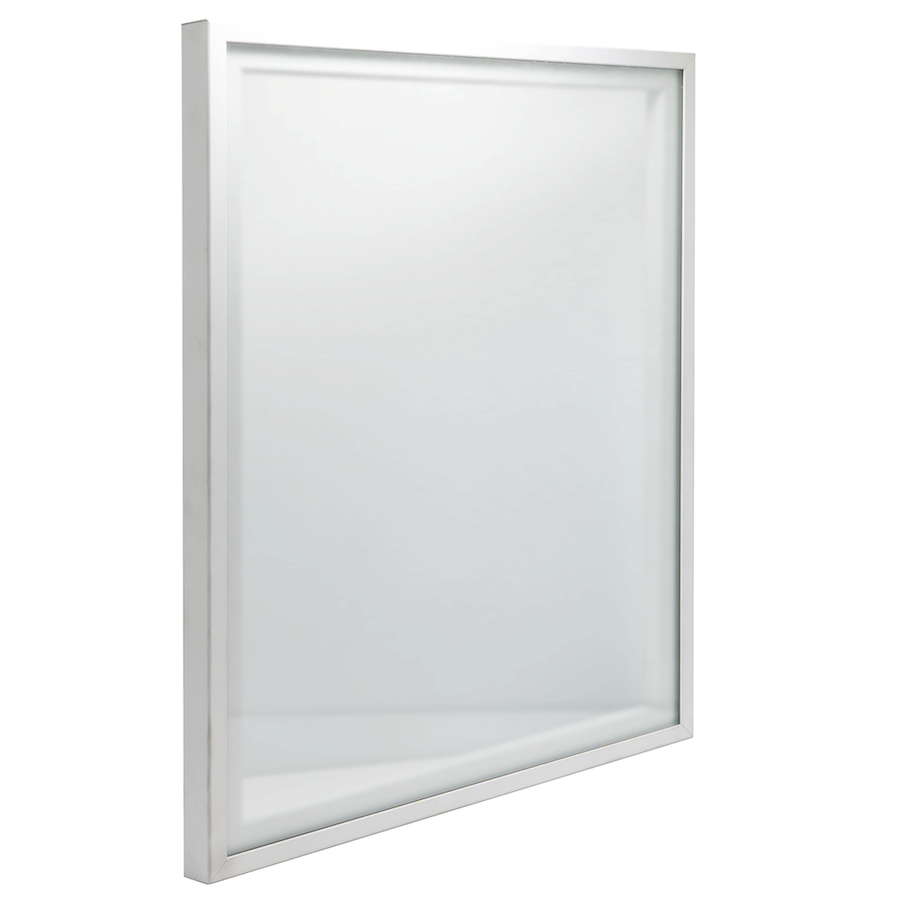

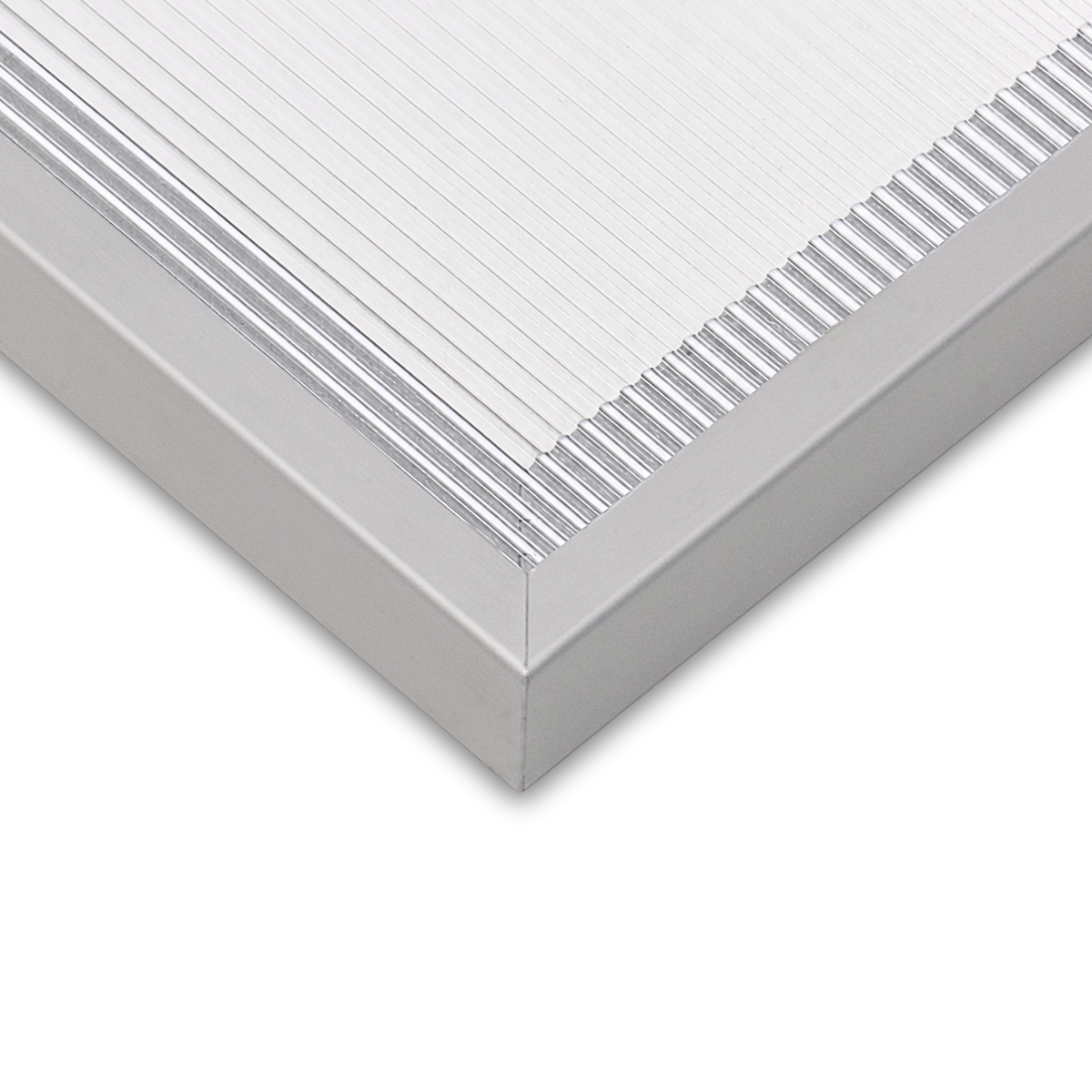

A glass-overlay profile with a 9.5mm visible edge, combining minimal aluminum detailing with a contemporary look.
A slim, contemporary profile family designed to minimize the aluminum frame and create a clean, refined look around the insert.
Design Guidelines
Dimensions
- Width range 5.5" - 96"
- Height range 5.5" - 96"
- Max square footage 16 sq ft

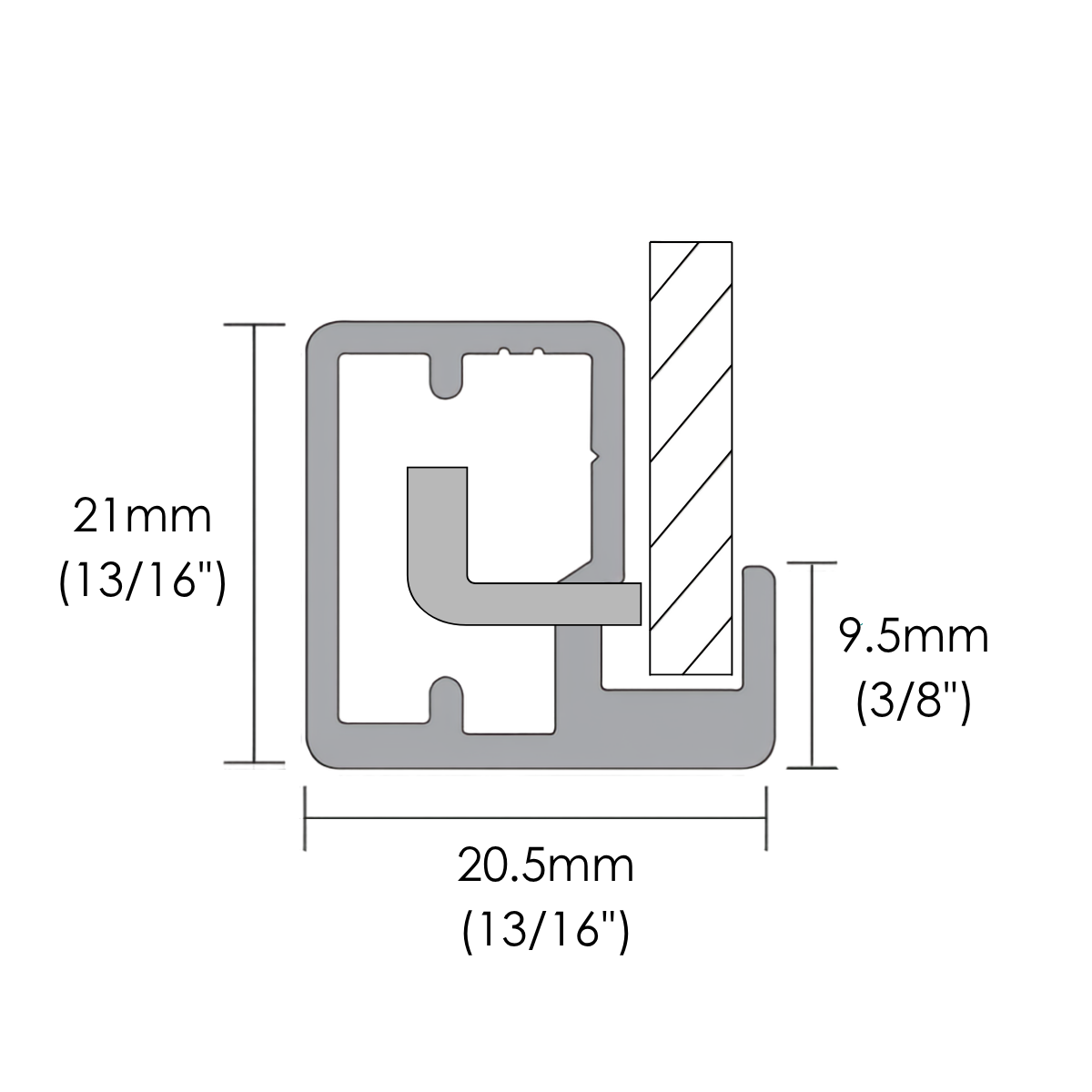

- Extrusion size 20.5 D x 21 H mm
- Visible edge 9.5mm
Compatibility & insert
- Insert restrictions 4mm (.156") with seamed edge
- Insert installation method Assembled with gasket
- Handle hole Yes - Locations must be specified at time of order
- Decorative hardware Flush mount finger pull, surface mount finger pull
- Drawer fronts Not recommended
- Face frame cabinets Not recommended
Finish Options
Click a finish to preview it. Order a physical sample to see the true color before specifying.
Natural Aluminum
Natural silver-toned aluminum finish with a clean, contemporary appearance.
Brushed Stainless
Aluminum finish with the refined appearance of brushed stainless steel.
Black
Solid black aluminum finish for a clean and modern appearance.
Onyx - Black Matte
Deep black finish with a smooth matte appearance.
Bronze Matte
Warm bronze finish with a subtle matte surface.
Luxe Bronze
Rich bronze finish with an elevated metallic appearance.
Graphite
Dark graphite finish with a refined metallic appearance.
Modern Brass
A warm, sophisticated brass finish with a refined metallic sheen that adds modern elegance to any space.
Gold
Warm gold finish intended for decorative applications.
Arctic Silver
Light silver finish with a cool metallic appearance.
Insert Options
AF016
accepts 4mm (.156") inserts with a seamed edge. All options below are compatible. Click an insert to view all.
Hardware Options
Narrow Frame Hinges

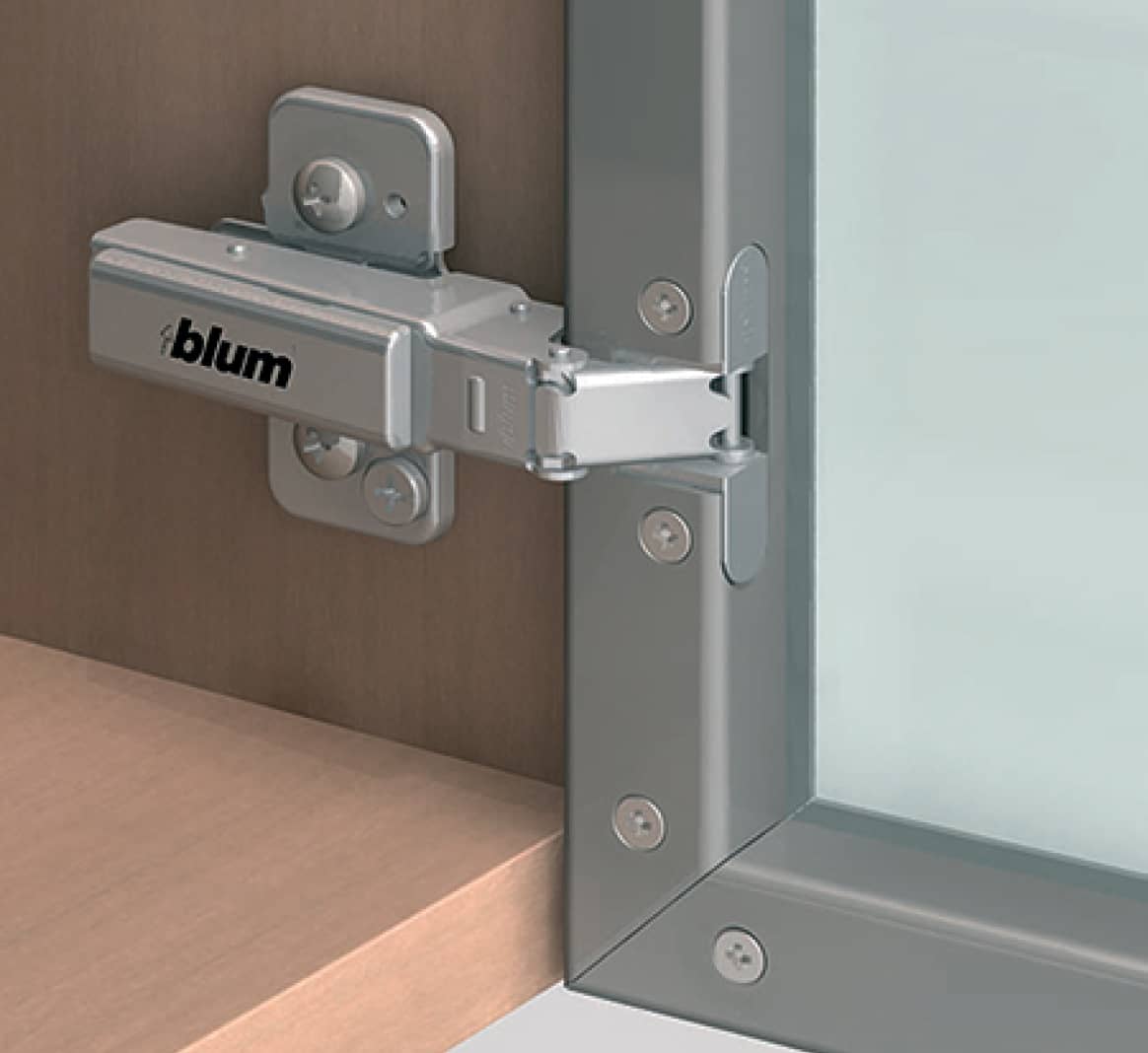

BLUMOTION Blum Soft Close Narrow Frame Hinge
H71B950A; H71B960A
Blum Self-Closing Narrow Frame (Full Overlay)
H71T950A

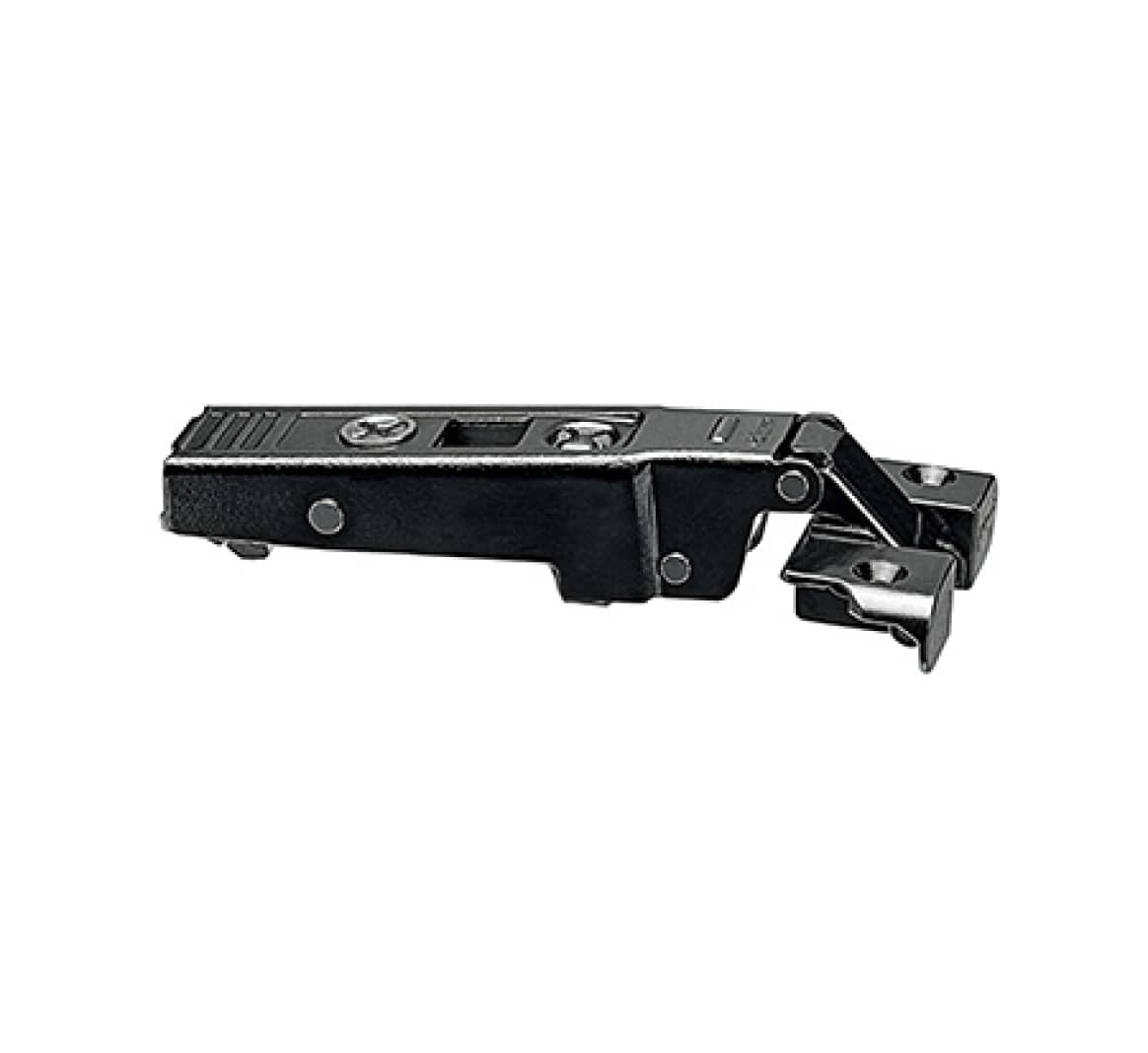

Blum Self-Closing Narrow Frame (Full Overlay) Onyx
H71T950A (ONS)
Salice Silentia Narrow Frame Hinge
C1Z6AE9; C1Z6GE9; C1Z6PE9

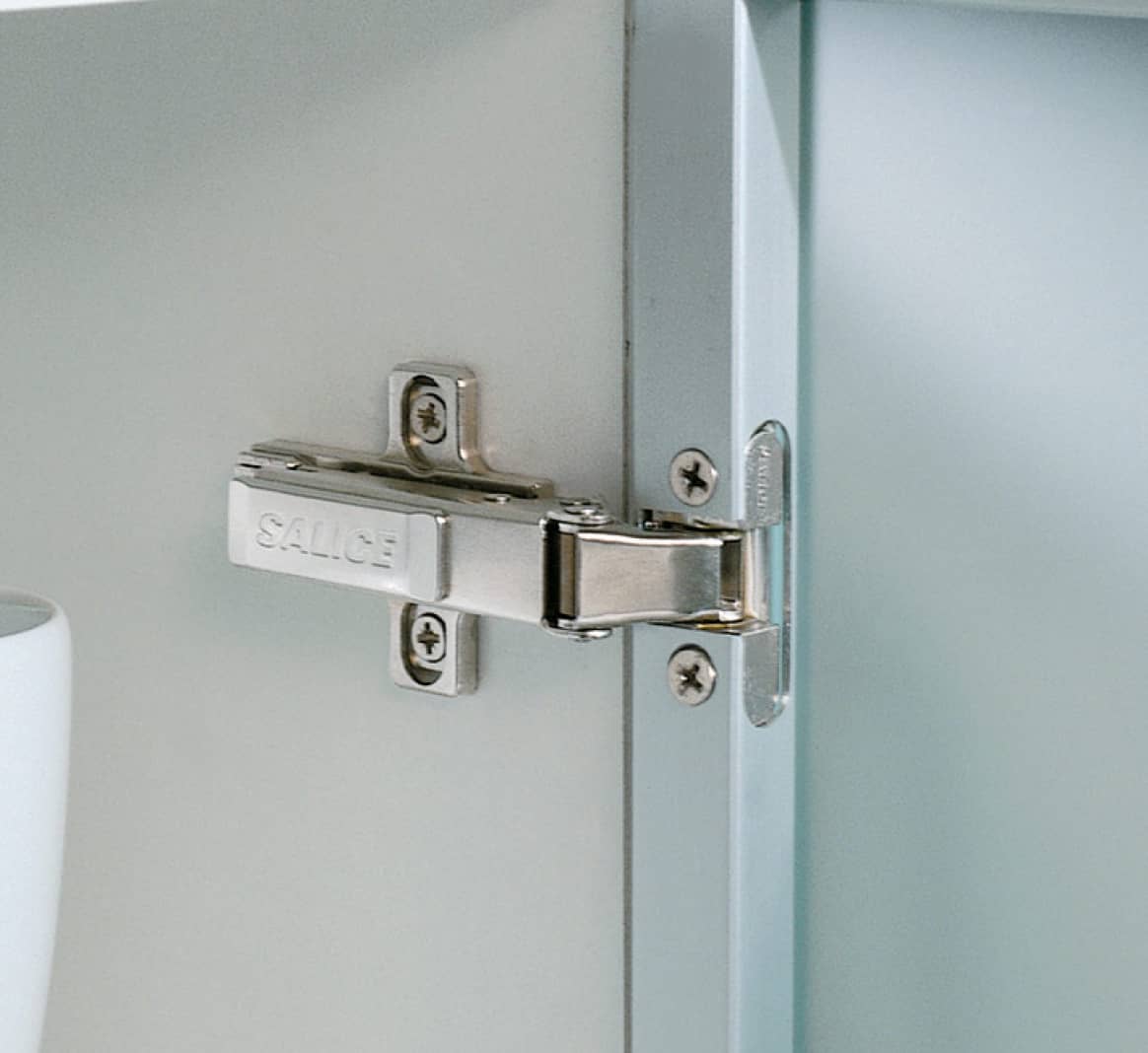

Salice Push-2-Open Narrow Frame Hinge
C2ZPA99; C2ZPP99
%2520Dual%2520Application%252001.png)
Blum Self-Close - (Half Overlay) Dual Application
H71T960A
Small Sliding Door Systems
SH 7035 Small Sliding Door System
SH 7035
Divider Rails
Divider Rails
Door Designer
Select your finish, insert, and dimensions. Save your configuration to a shareable link or PDF, perfect for sending to customers or your rep.

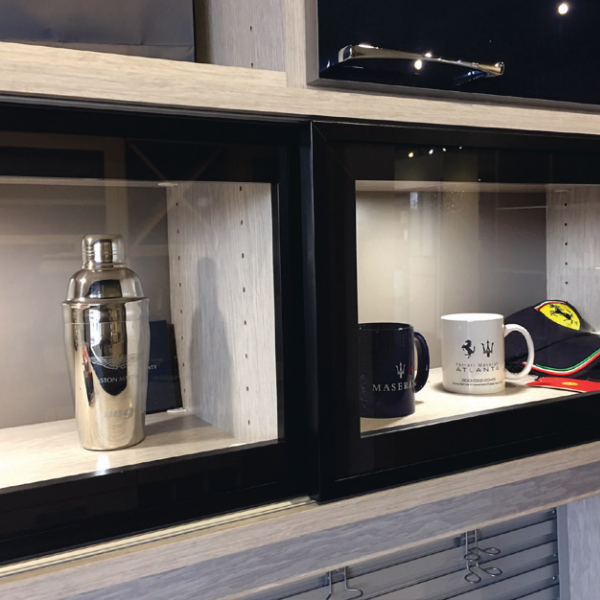

Inspiration Gallery
Real installations by designers and cabinet shops across North America.
What is the visible aluminum edge on AF016?
AF016 features a 9.5mm visible aluminum edge with a glass overlay design.
What hinges are compatible with AF016?
AF016 requires specialized European narrow aluminum frame hinges, including compatible Blum and Salice narrow frame models.
Can AF016 be used for drawer fronts or face-frame cabinets?
AF016 is not recommended for drawer fronts or face-frame cabinet applications.
Can handle holes be drilled through the glass on AF016?
Yes. Handle holes can be drilled through the glass insert, but not through the aluminum frame. Hole locations must be specified at the time of order.
What is the maximum size available for AF016?
AF016 supports widths and heights from 5.5" to 96", with a maximum area of 16 square feet.
