AF017

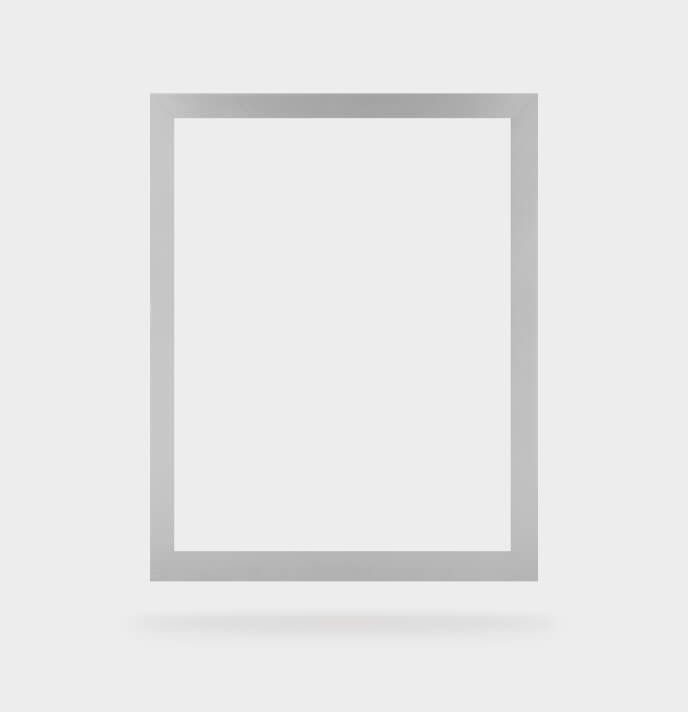

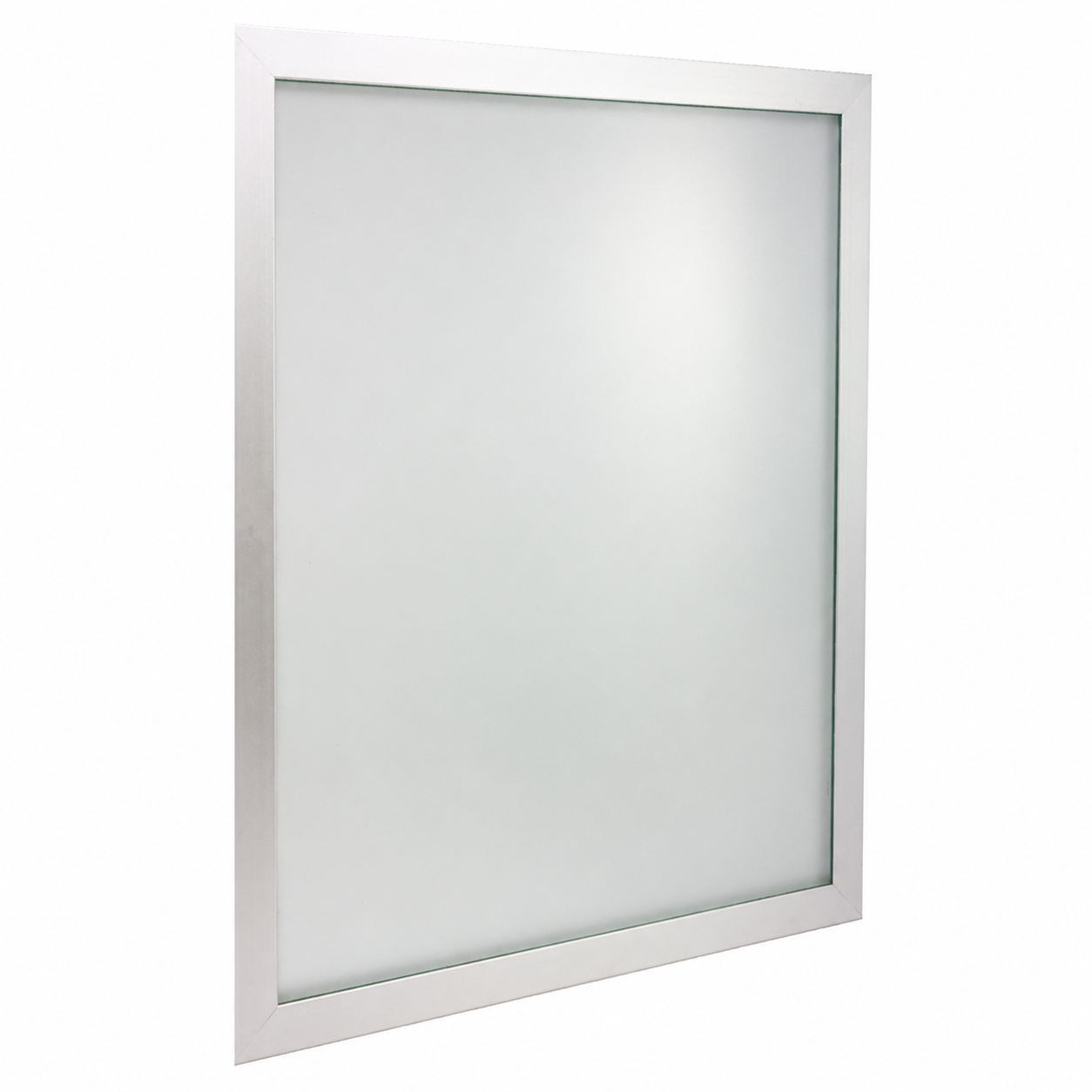

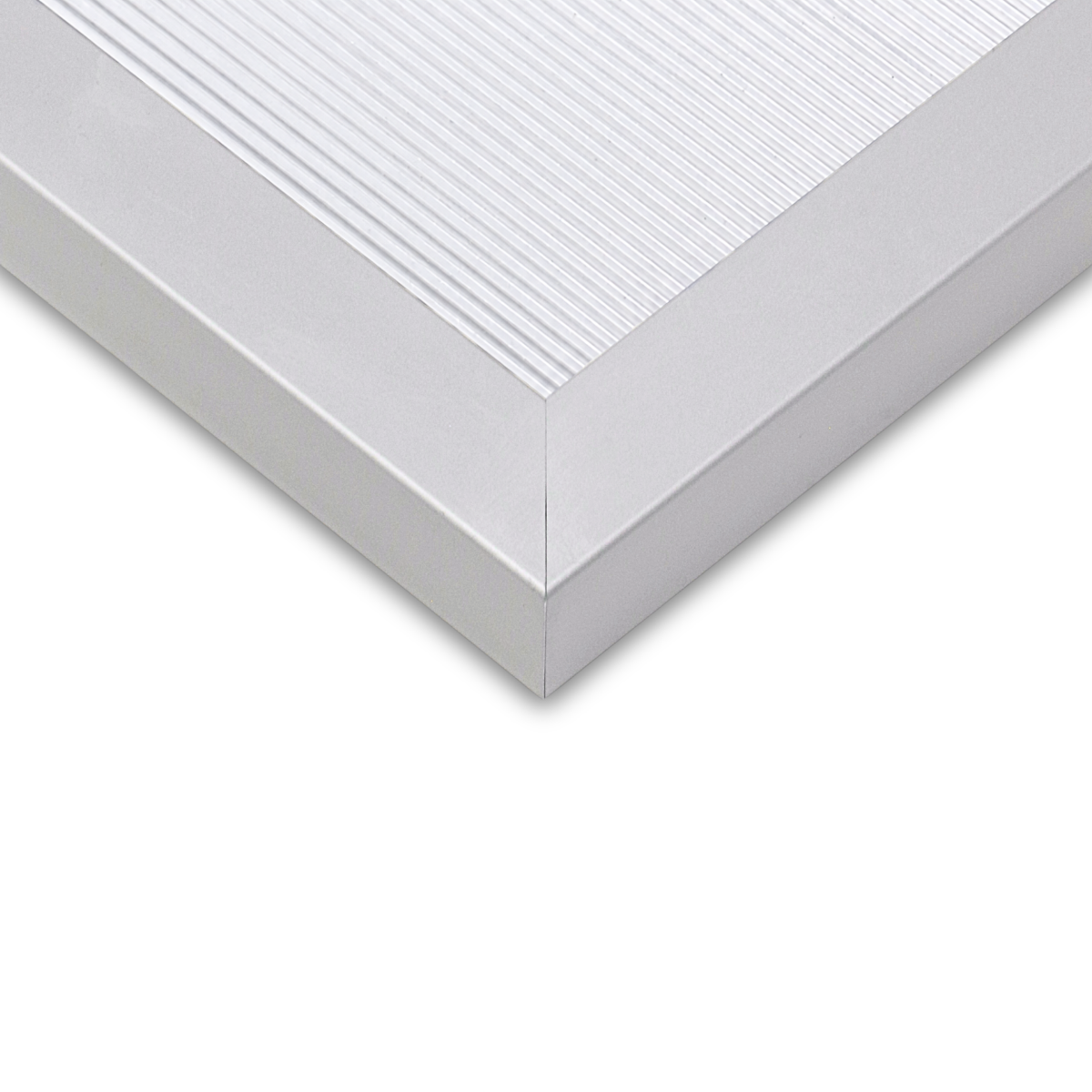

A streamlined narrow profile with a 21mm visible aluminum frame and no glass overlay for a modern aesthetic.
A slim, contemporary profile family designed to minimize the aluminum frame and create a clean, refined look around the insert.
Design Guidelines
Dimensions
- Width range 5.5"–96"
- Height range 5.5"–96"
- Max square footage 16 sq ft

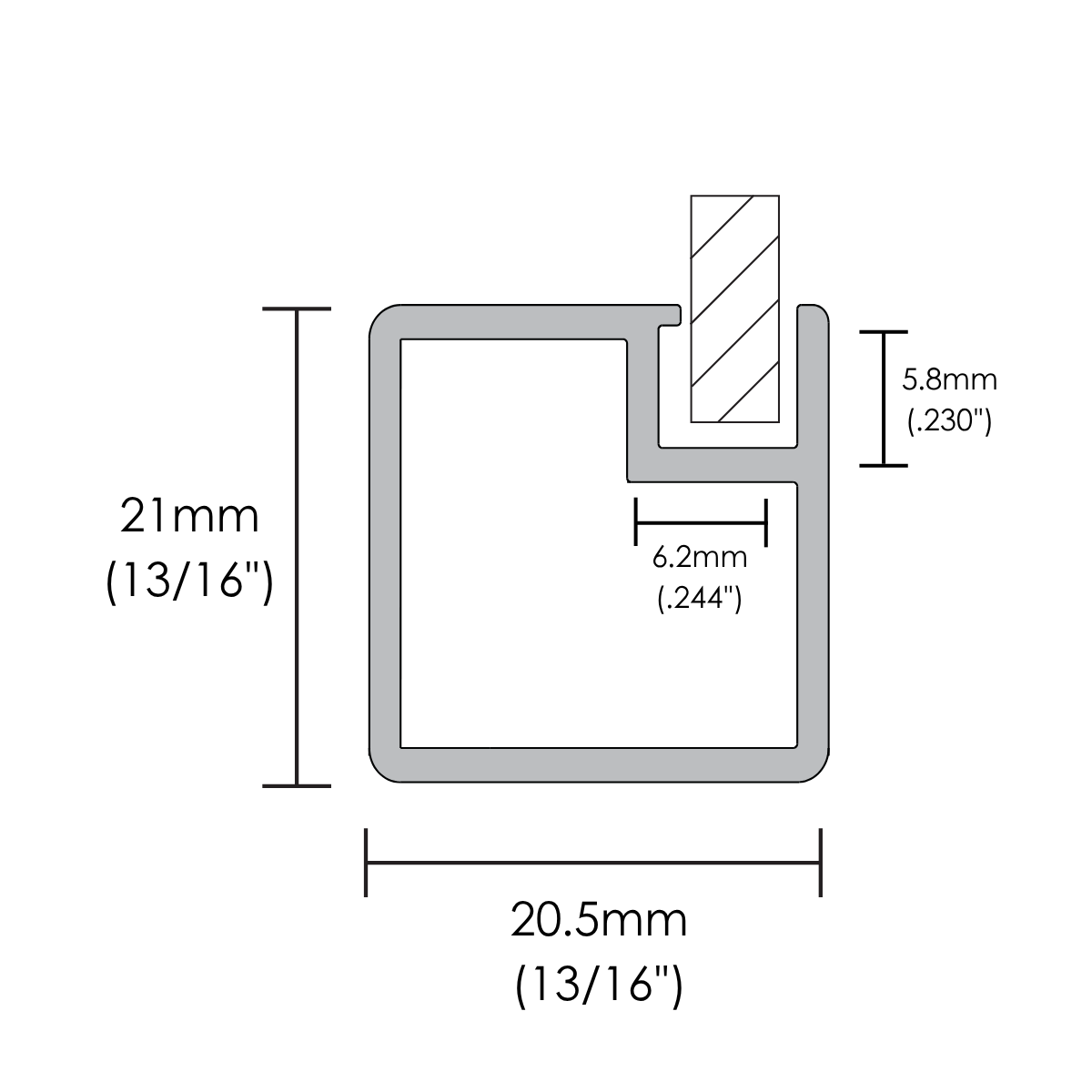

- Extrusion size 20.5 D × 21 H mm
- Visible edge 21mm
Compatibility & insert
- Insert restrictions 4mm (.156") with seamed edge
- Insert installation method Assembled with gasket
- Hinge Narrow Frame hinges
- Handle hole Yes – drill through frame only
- Decorative hardware Flush mount finger pull, surface mount finger pull
- Drawer fronts Not recommended
- Face frame cabinets Not recommended
Finish Options
Click a finish to preview it. Order a physical sample to see the true color before specifying.
Natural Aluminum
Natural silver-toned aluminum finish with a clean, contemporary appearance.
Brushed Stainless
Aluminum finish with the refined appearance of brushed stainless steel.
Black
Solid black aluminum finish for a clean and modern appearance.
Onyx - Black Matte
Deep black finish with a smooth matte appearance.
Bronze Matte
Warm bronze finish with a subtle matte surface.
Luxe Bronze
Rich bronze finish with an elevated metallic appearance.
Graphite
Dark graphite finish with a refined metallic appearance.
Modern Brass
A warm, sophisticated brass finish with a refined metallic sheen that adds modern elegance to any space.
Gold
Warm gold finish intended for decorative applications.
Arctic Silver
Light silver finish with a cool metallic appearance.
Insert Options
AF017
accepts 4mm (.156") inserts. All options below are compatible. Click an insert to view all.
Hardware Options
Narrow Frame Hinges
BLUMOTION Blum Soft Close Narrow Frame Hinge
H71B950A; H71B960A
Blum Self-Closing Narrow Frame (Full Overlay)
H71T950A
Blum Self-Closing Narrow Frame (Full Overlay) Onyx
H71T950A (ONS)
Salice Silentia Narrow Frame Hinge
C1Z6AE9; C1Z6GE9; C1Z6PE9
Salice Push-2-Open Narrow Frame Hinge
C2ZPA99; C2ZPP99
%2520Dual%2520Application%252001.png)
Blum Self-Close - (Half Overlay) Dual Application
H71T960A
Small Sliding Door Systems
SH 7035 Small Sliding Door System
SH 7035
Divider Rails
Divider Rails
Door Designer
Select your finish, insert, and dimensions. Save your configuration to a shareable link or PDF, perfect for sending to customers or your rep.
Inspiration Gallery

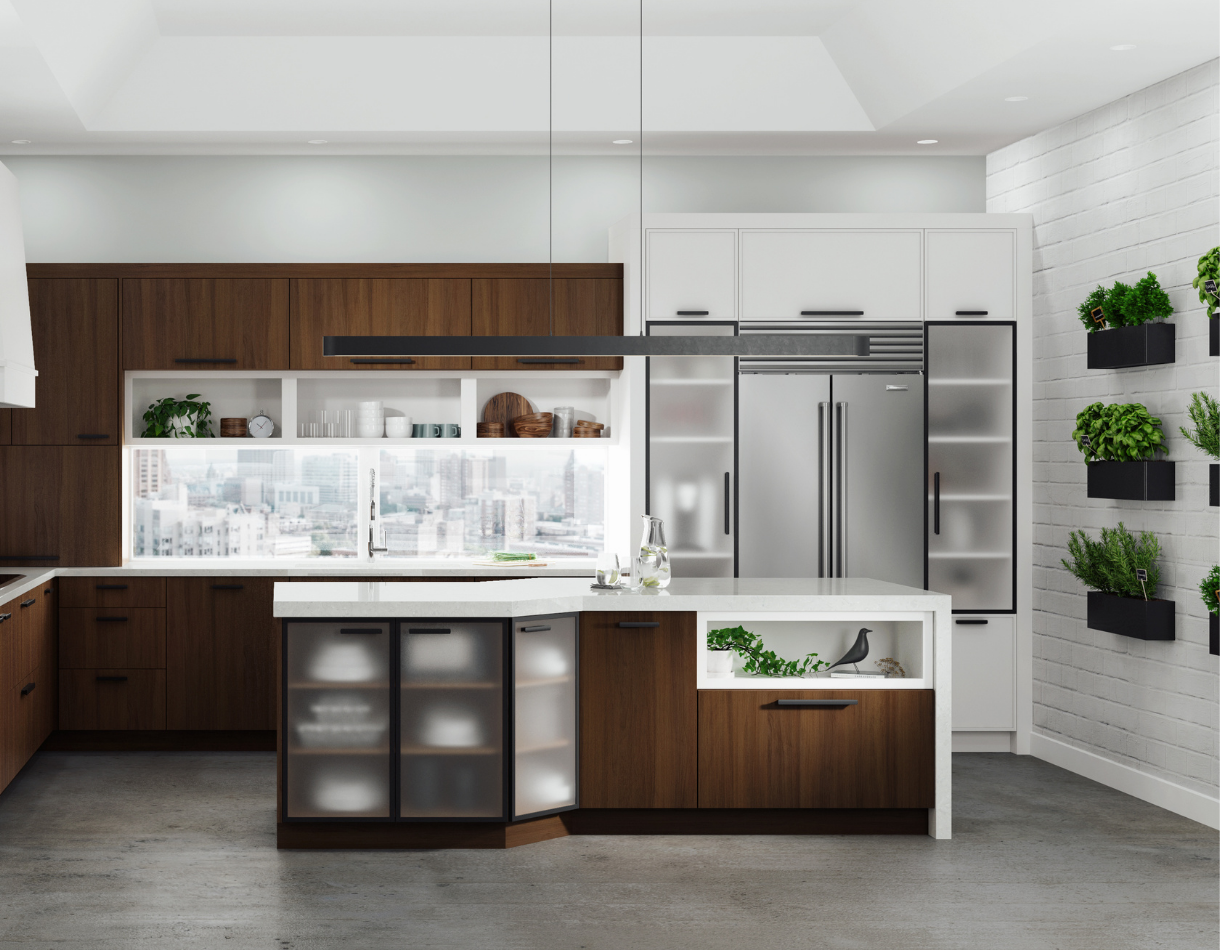

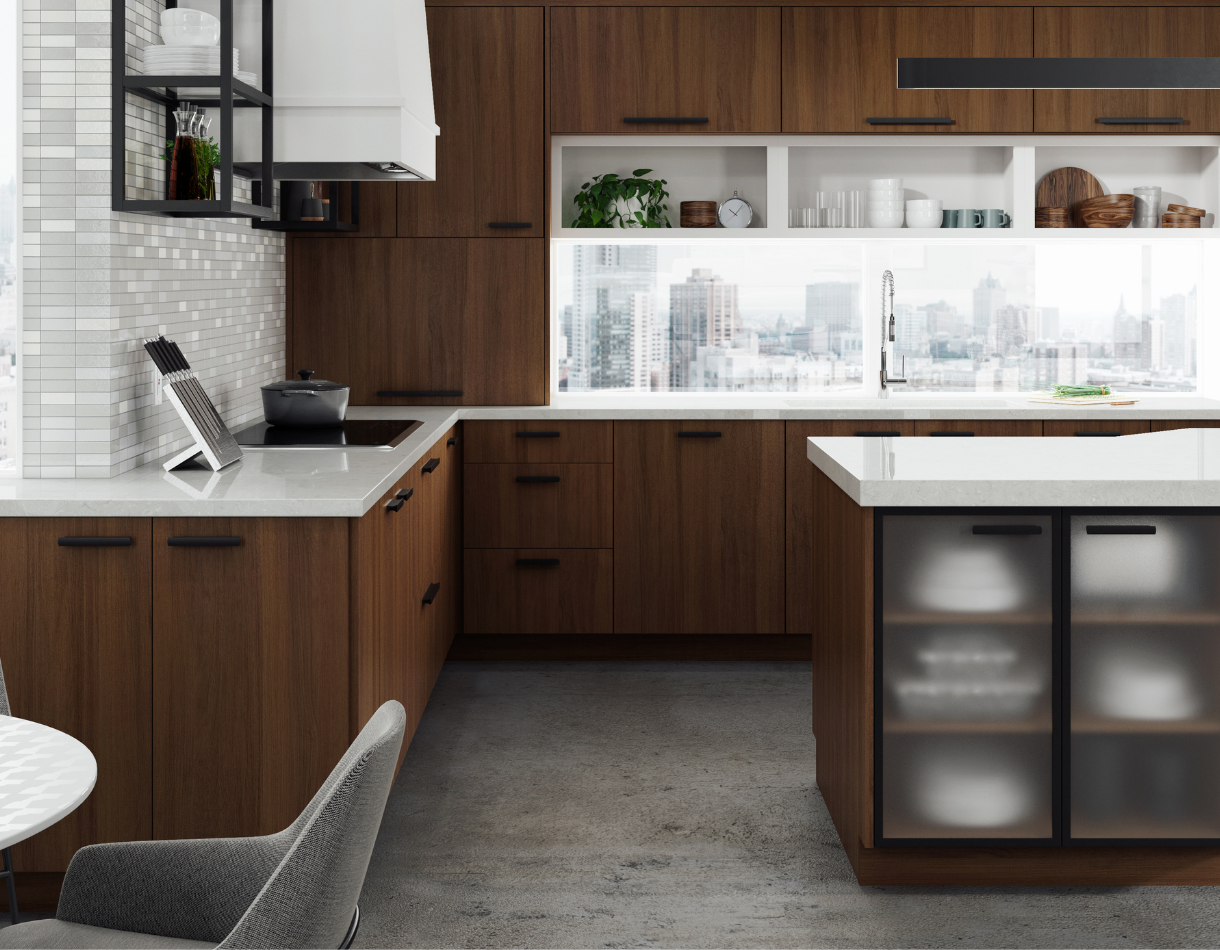

Real installations by designers and cabinet shops across North America.
.png)
.png)
Which hinges are compatible with AF017?
AF017 requires specialized European narrow aluminum frame hinges, including compatible Blum and Salice narrow frame models.
Can AF017 be used with face-frame cabinets?
AF017 is not recommended for face-frame cabinet applications. Review the cabinet construction and hinge requirements before specifying this profile.
What is the visible frame width of AF017?
AF017 features a 21mm visible aluminum frame with no glass overlay.
What is the maximum size available for AF017?
The recommended maximum width and height for AF017 are 96 inches, with a maximum door area of 16 square feet. Contact Element Designs for dimensions outside these guidelines.
Can a handle hole be drilled through the AF017 frame?
Yes. A handle hole can be drilled through the AF017 aluminum frame. The required handle-hole location should be specified when the door is ordered.
