AF210

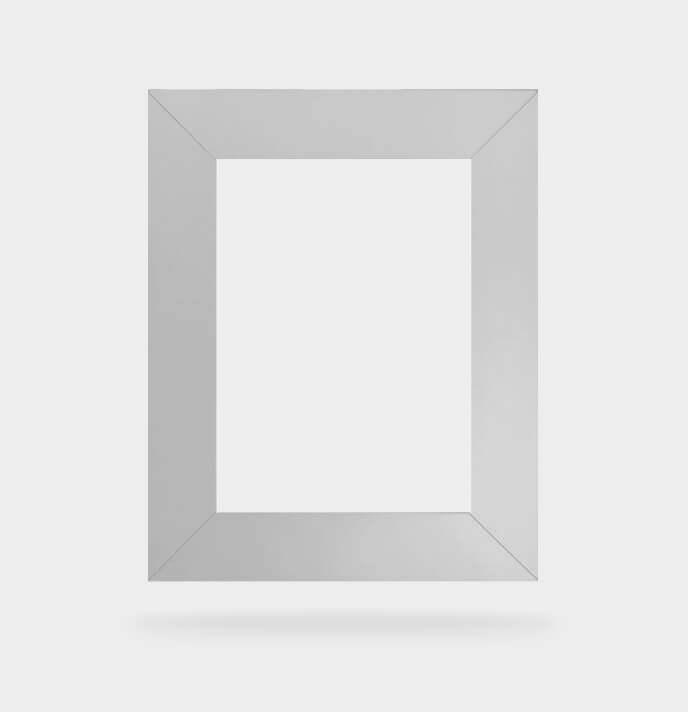

A double-sided aluminum frame designed to accommodate customizable front and back inserts for a finished appearance from both sides.
A unique wide frame designed to accommodate front and back inserts.
Design Guidelines
Dimensions
- Width range 5.5"–96"
- Height range 5.5"–96"
- Max square footage 16 sq ft

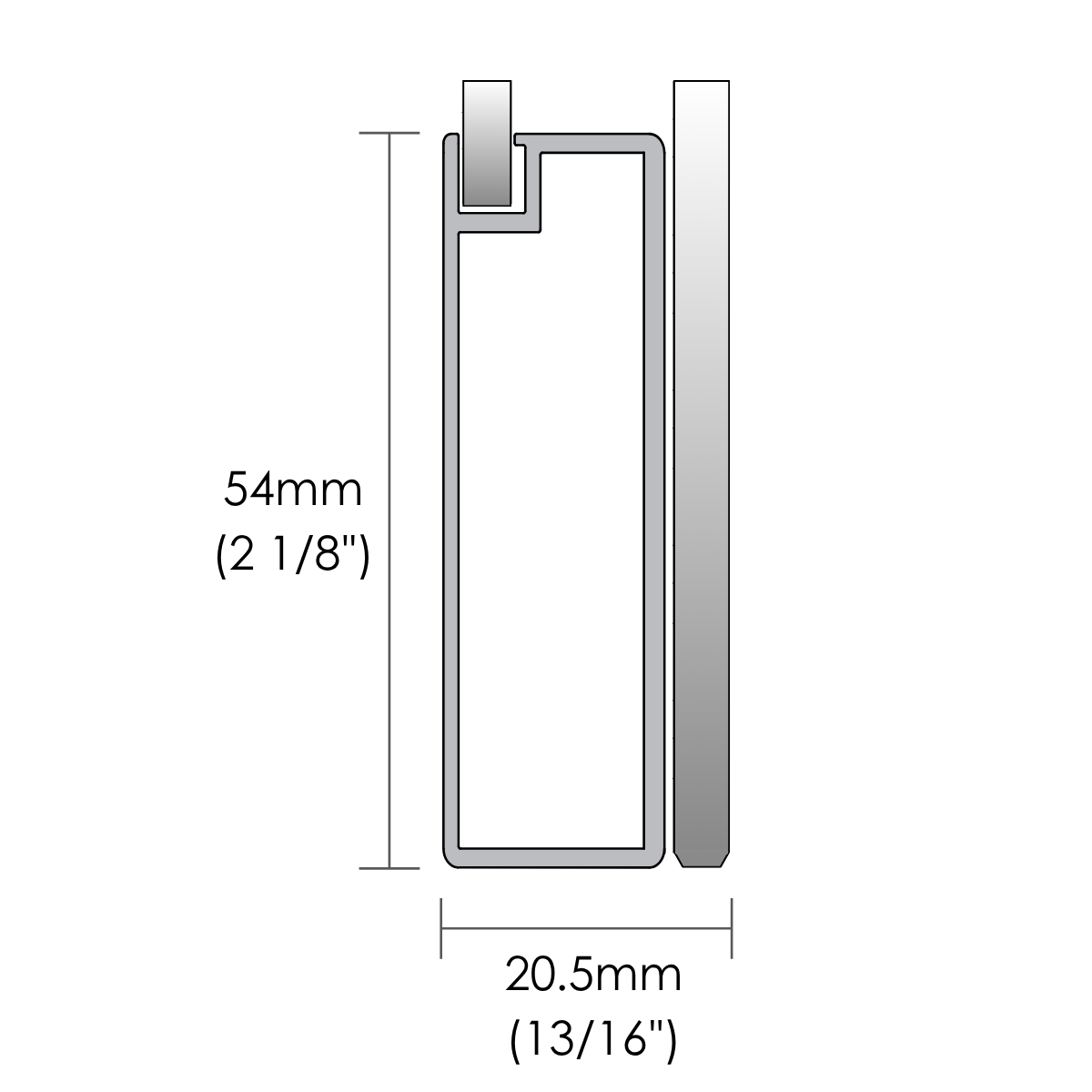

- Extrusion size 20.5 D × 54 H mm
- Visible edge None
Compatibility & insert
- Insert restrictions 4mm (.156") with flat edge polish; opaque inserts only (BPG & mirror)
- Insert installation method Permanently adhered
- Hinge Standard 35mm Euro hinges; additional hinges required due to door weight
- Handle hole Yes – locations must be specified at time of order
- Decorative hardware Surface mount finger pull
- Insert configuration Front and back inserts
- Special note Front appearance is the same as AF010
- Special note Inserts are permanently adhered; door cannot be disassembled
Finish Options
Click a finish to preview it. Order a physical sample to see the true color before specifying.
Natural Aluminum
Natural silver-toned aluminum finish with a clean, contemporary appearance.
Brushed Stainless
Aluminum finish with the refined appearance of brushed stainless steel.
Black
Solid black aluminum finish for a clean and modern appearance.
Onyx - Black Matte
Deep black finish with a smooth matte appearance.
Bronze Matte
Warm bronze finish with a subtle matte surface.
Luxe Bronze
Rich bronze finish with an elevated metallic appearance.
Graphite
Dark graphite finish with a refined metallic appearance.
Modern Brass
A warm, sophisticated brass finish with a refined metallic sheen that adds modern elegance to any space.
Gold
Warm gold finish intended for decorative applications.
Arctic Silver
Light silver finish with a cool metallic appearance.
Insert Options
AF210
accepts 4mm (.156") front and back inserts with flat polished edges. Only opaque backpainted glass and mirror inserts are compatible on both sides. Click an insert to view all.
Hardware Options
Door Designer
Select your finish, insert, and dimensions. Save your configuration to a shareable link or PDF, perfect for sending to customers or your rep.
What makes AF210 different from AF010?
AF210 features opaque glass inserts on both the front and back of the door, while AF010 has a single front glass overlay. Both create a seamless appearance from the front.
Does AF210 require additional hinges?
Yes. Due to the additional weight of its double-sided glass construction, AF210 may require additional hinges. Use the door weight calculator to determine the appropriate quantity.
What types of inserts are compatible with AF210?
AF210 accommodates opaque 4mm backpainted glass and mirror inserts with flat polished edges.
Can the glass inserts be removed from AF210?
No. Both inserts are permanently adhered to the aluminum frame, and the door cannot be disassembled.
What is the maximum size available for AF210?
AF210 supports widths and heights from 5.5" to 96", with a maximum area of 16 square feet.
